14
⚫ The car brakes if the handle moves up and down to the braking zone（‘B’）.If release the
handle, it will automatically moves to the upper braking zone（‘ B’）and the car brakes until
it stops
⚫ Emergency reverse button(figure 7.7)prevents the operator from being squeezed. And if this
button is activated ,the car slows down /or begins to travel backwards （‘Bw’）and then
stops. If the handle is in the operating area and the car is not
moving .consider that this button still works for this situation
8.10Brake structure &Brake Schematic
Braking principle：as figure 11 shows including ：Brake by
magnetic yoke assembly 6、Magnet exciting coil 7、Spring 2、brake
disc 5、Armature 1、Geared sleeve 4、Mounting screw 3 .The
brake is mounted on the end cap of the motor ,and the mounting
screw is adjusted to the specified air gap value. The gear sleeve is
fixed on the shaft .The external teeth cooperate with the internal
teeth of the brake disc. And the torque is transmitted during
operation. Then the brake disc can move axially on the gear
sleeve .
When Magnet exciting coil 7 of brake is energized .the coil produces a magnetic field that
caused the armature 1 draw toward the magnetic yoke assembly 6.Armature 1 detached from the
brake disc 5(Release).Then the motor drive shaft with brake disc 5 start and operate normally.
When Magnet exciting coil 7 is de-energized., The magnetic flux disappears .Armature 1 is
released .and spring 2 process armature 1,then the friction plate on the brake disc is pressed to
generate frictional force for braking purposes
8.11Trouble
If there is any error or the car is not operate, Stop using and press the emergency stop
switch(Figure 7.4).Parking the car in safe area if possible .Turn the key counterclockwise and
remove the key(figure 7.5).Notify the manager or contact your after-sales service staff
immediately .Use a special towing equipment /lifting equipment to pull the truck out of the
operating area if necessary .
8.12Emergency situations
Keep a safe distance in an emergency situation or the car is turned over. Press the emergency
stop switch(Figure 7.4) and all electrical functions will stop.

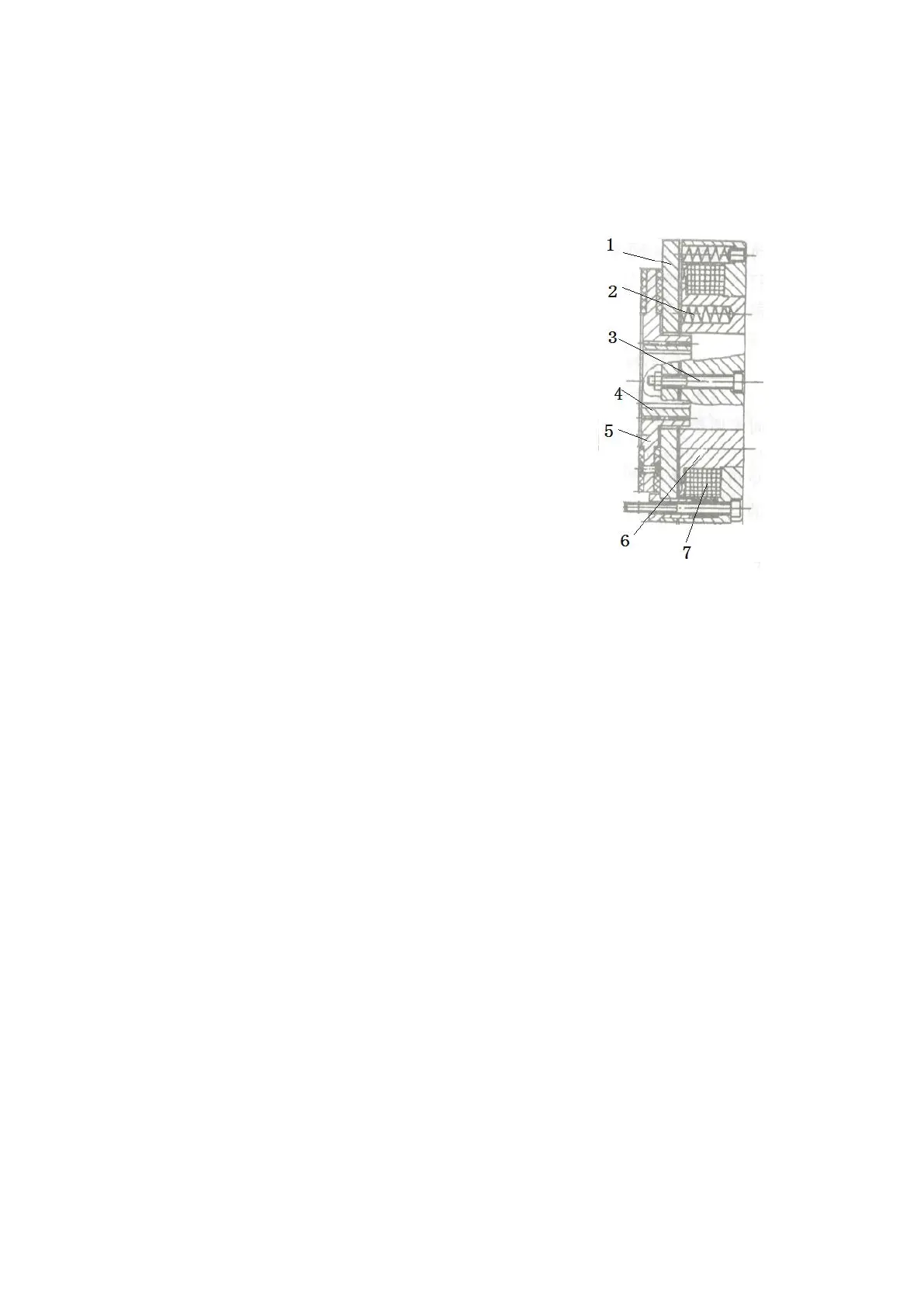

Figure 11 brake
schematic
