7. The Schematic diagram of Operating Mechanism

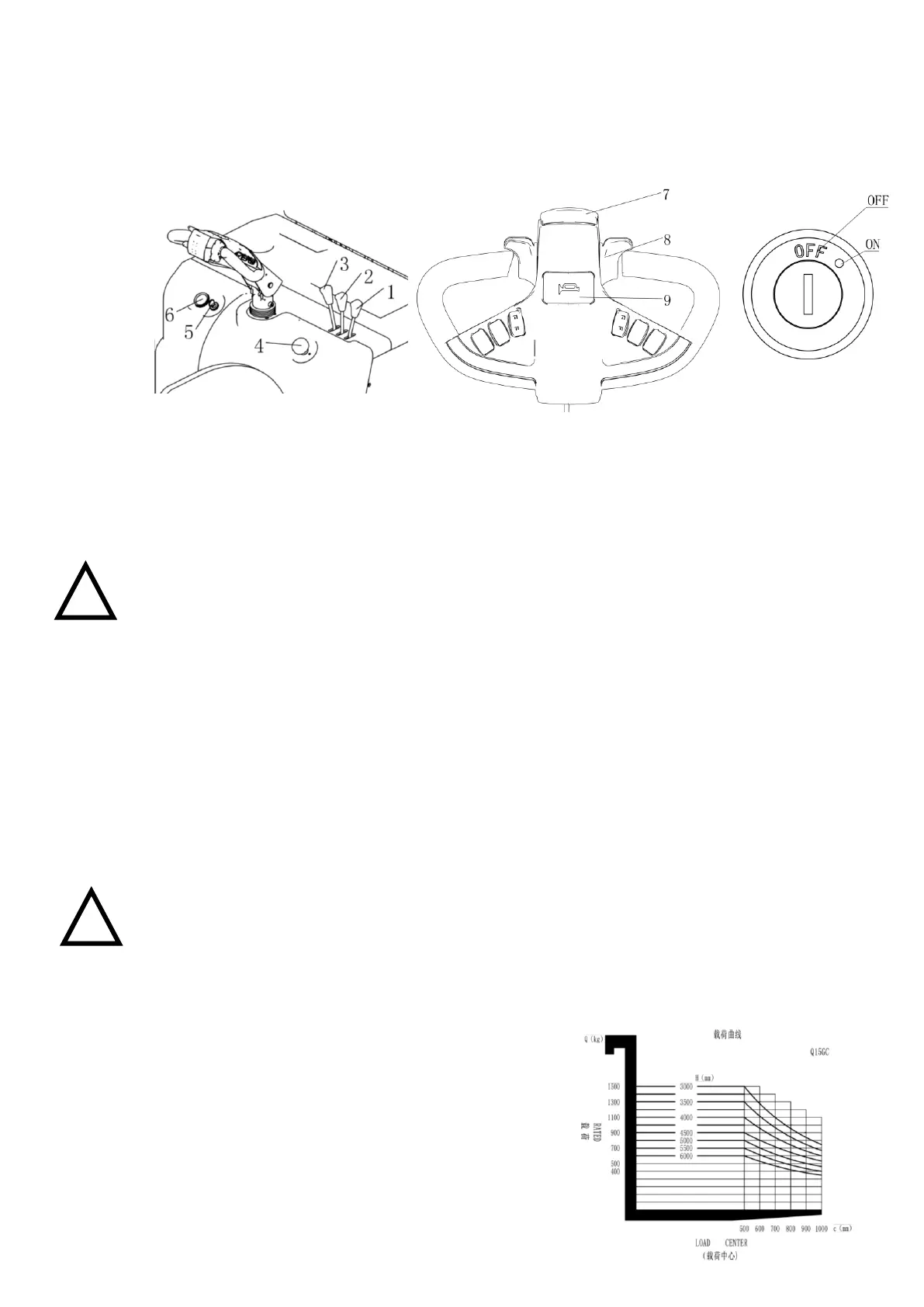

Figure7 Operating console
8.Operating specification
Please follow the warning and safety instructions before operating the car (see as
chapter 4)
Please Ensure that cargo or other equipment will not lead to poor visibility before
operating the car
Ensure cargo level and stable placed .And conduct daily inspection .Insert the key into the key
Switch(Figure 7.5),Turn the key clockwise to “ON” position. Before finally inserting the key
switch (Figure 8 ),The emergency stop switch(Figure 7.4) must be carefully pulled up.
Press the horn button(as figure7 .9)to start the buzzer
8.1Parking
Pls Don’t Park on the ramp
The car is equipped with an electromagnetic error protection Parking and Parking brake
Please always lower the forks completely and drive the car to a safe area.Turn the key
counterclockwise to the OFF position and pull out the key
8.2Loading capacity Graph
The loading capacity Graph shows a given load center c [mm]
Fig 9 loading capacity graph
！
！
Fig 8 Key Switch
