Package Contents
________________________________
Please contact your local dealer for assistance if any of the listed items are missing or damaged.
Arm Unit
-Attaching-wall Part
-Attaching-monitor Part
Arm Cover, 2 pcs
User's Manual
Mounting Screws, 4 pcs each
Refer to "Support > Product Database > Accessories > LA-011-W > Manuals" on the EIZO website for
compatible screws to use for installation.
http://www.eizoglobal.com/support/db/products/model/LA-011-W
Fixing Screw(s) M4 x 16: 1 pc
(Fixing screw(s) is put into the different bag from the bag which the mounting screws are into.)
NOTE
Screws for fixing wall anchor on the wall are not enclosed. Prepare appropriate screws in advance.
Compatible Monitors and Wall
______________________
Monitors
*Total weight of the monitor including the weight of the cables and optional peripherals.
Wall
Thickness and Depth

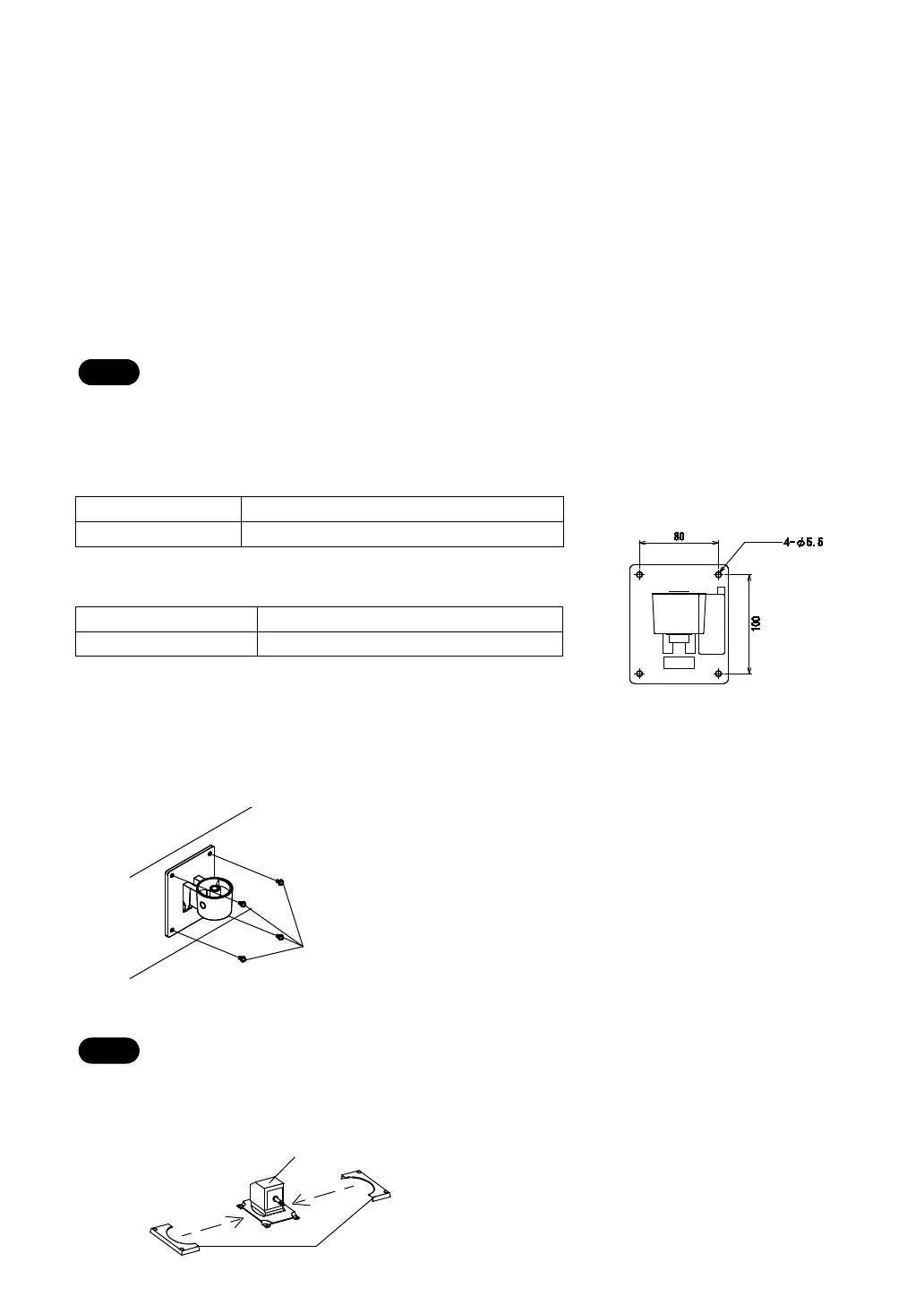

Refer to right figure
Weight Capability
More than 130 kg
How to attach the monitor
_________________________
1. Attach the Attaching-wall Part of the arm on the wall.
Place the Attaching-wall Part on the wall and fix the 4 corners with the screws you prepared in advance.
2.
Attach the Attaching-monitor Part to the monitor.
NOTE
Use specified screws for tightening up referring to the our web site. http://www.eizoglobal.com
(1) Fit the arm cover to the Attaching-monitor Part.
Supported Weight*
4.0kg to 9.0 kg
Hole Spacing
100 mm x 100 mm (VESA compatible)
Unit: mm
Wall
Screws (4 pcs)
Attaching-monitor Part
Arm covers
[Detail view of Attaching-wall part]
