Chapter 7 Reference
Chapter 7 Reference

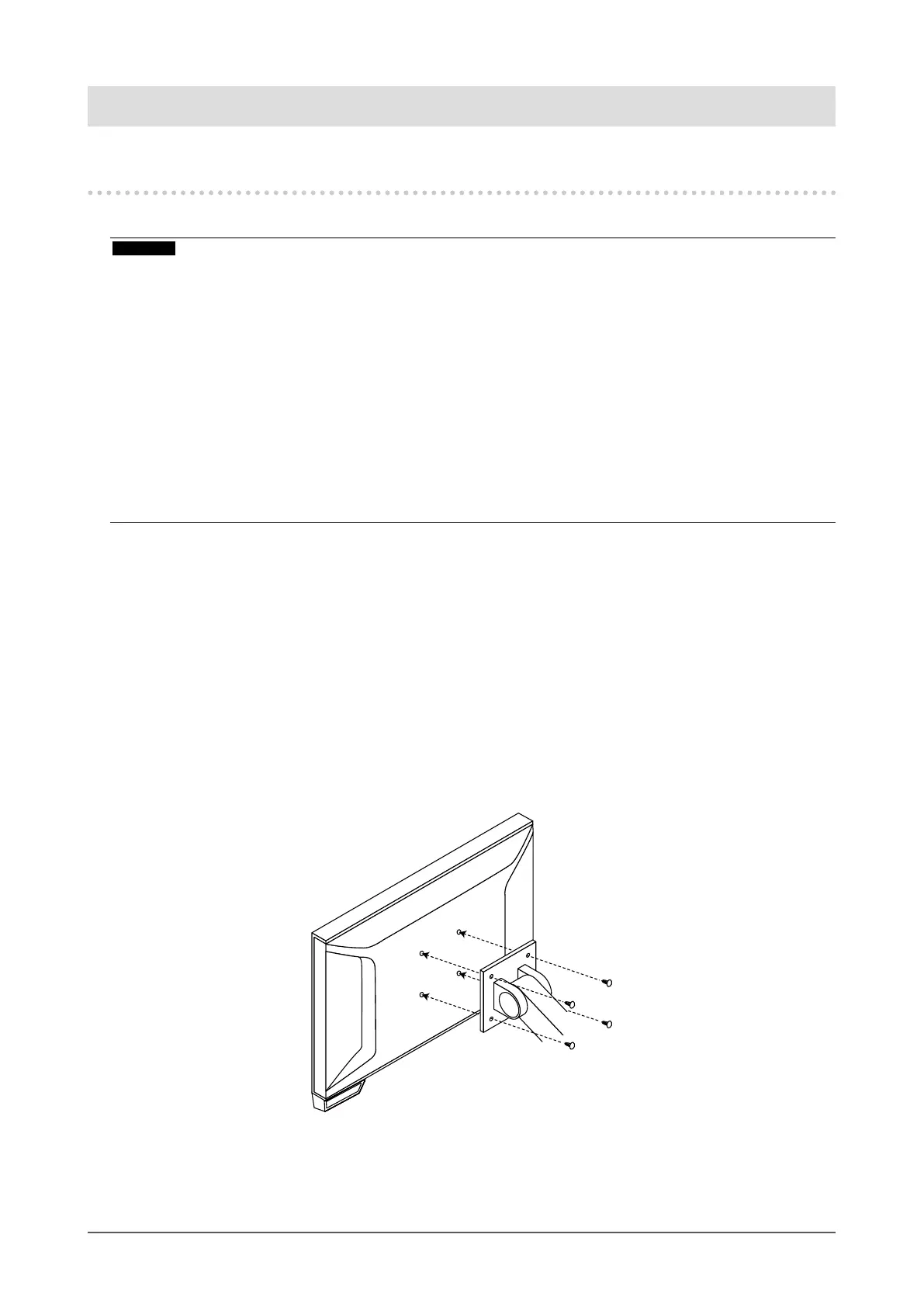

7-1. Attaching the Optional Arm
An optional arm (or an optional stand) can be attached by removing the stand section.
Attention
• When attaching an arm or stand, follow the instructions of their User’s Manual.
• When using another manufacturer’s arm or stand, conrm the following in advance and select one conforming to
the VESA standard.
- Clearance between the screw holes: 100 mm × 100 mm
- Thickness of plate: 2.6 mm
- Strong enough to support weight of the monitor unit (except the stand) and attachments such as cables.
• When using another manufacturer’s arm or stand, use the screws as described below.
- Screws xing the stand to the monitor
• When using an arm or stand, attach it to meet the following tilt angles of the monitor.
- Up 90˚ (landscape display / turned 90˚ clockwise to portrait display)
• When setting the monitor to the portrait style, turn the monitor screen 90˚ in clockwise direction.
• Connect the cables after attaching an arm or stand.
• Do not move the removed stand up and down. Doing so may result in injury or device damage.
• The monitor and arm or stand are heavy. Dropping them may result in injury or equipment damage.
Procedure
1.
Lay the LCD monitor on a soft cloth spread over on a stable surface with the
panel surface facing down.
2.
Remove the stand.
Using a screwdriver, loosen the screws securing the unit and the stand.
3.
Attach the arm or stand to the monitor.
Secure the monitor to the arm or stand using the screws specied in the User’s Manual of the arm or
stand.
