Fastening by means of quick action bracing unit
In order to brace the drill rig by means of the quick action bracing unit,
the distance to the opposite wall must be between 1.7 m and 3 m.
Position the drill rig. Position the quick action bracing
unit as close as possible behind the support on the base
of the rig. Fix the drill rig by turning the crank (G)
clockwise. Secure in position by means of the
appropriate bolt (H).

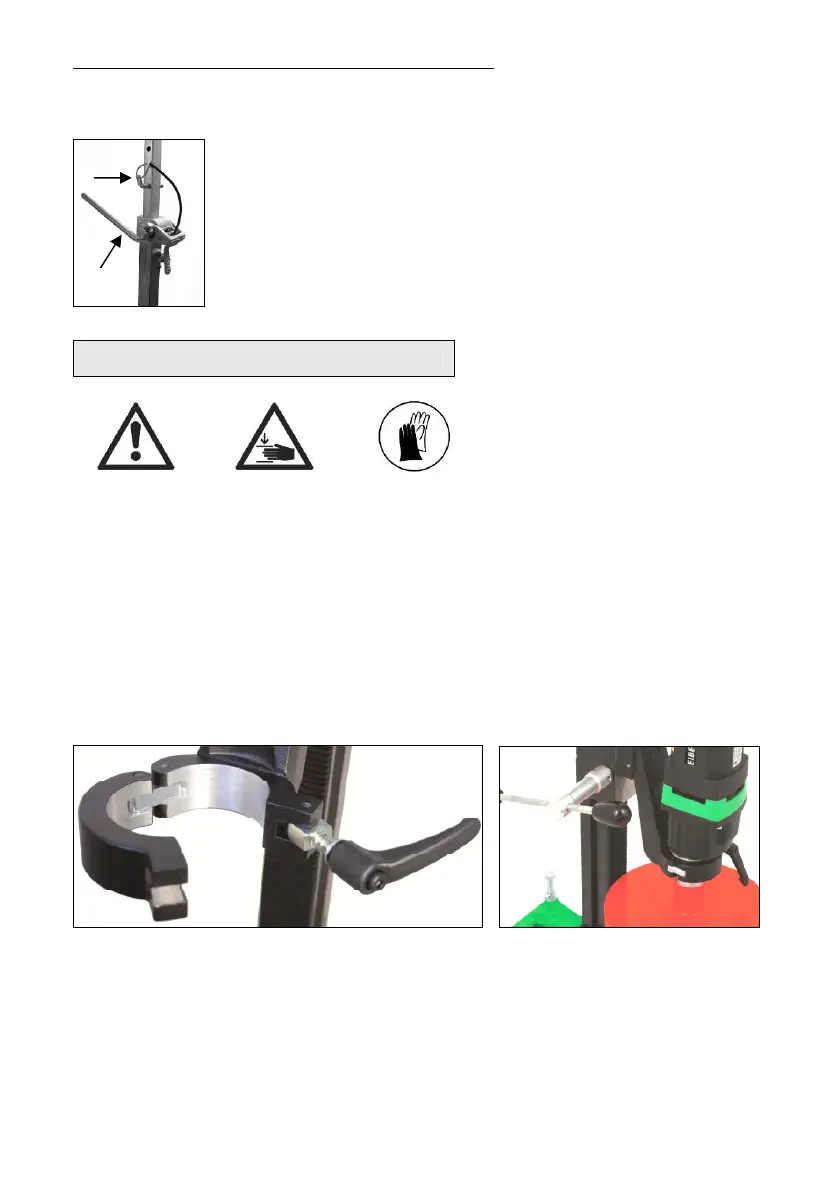

Fixing the Core Drill Motor
Wear protective gloves!
Caution! When mounting the machine, risk of squashing.
Move the machine holder (2) upwards until the locking pin (5) locks in the
column.
Unfast the spanner and open the clamp.
Put the core drill on the carriage and close the clamp by means of the spanner.
Before remove the additional handle of the machine.
For machines with collar Ø53 mm in supply a reducing ring Ø60 / Ø53 mm is
included. Put this ring between collar and clamp.
