11
Use
After each readjustment always check that the screws are tightly
fixed so that safe operating of the drill rig is possible.

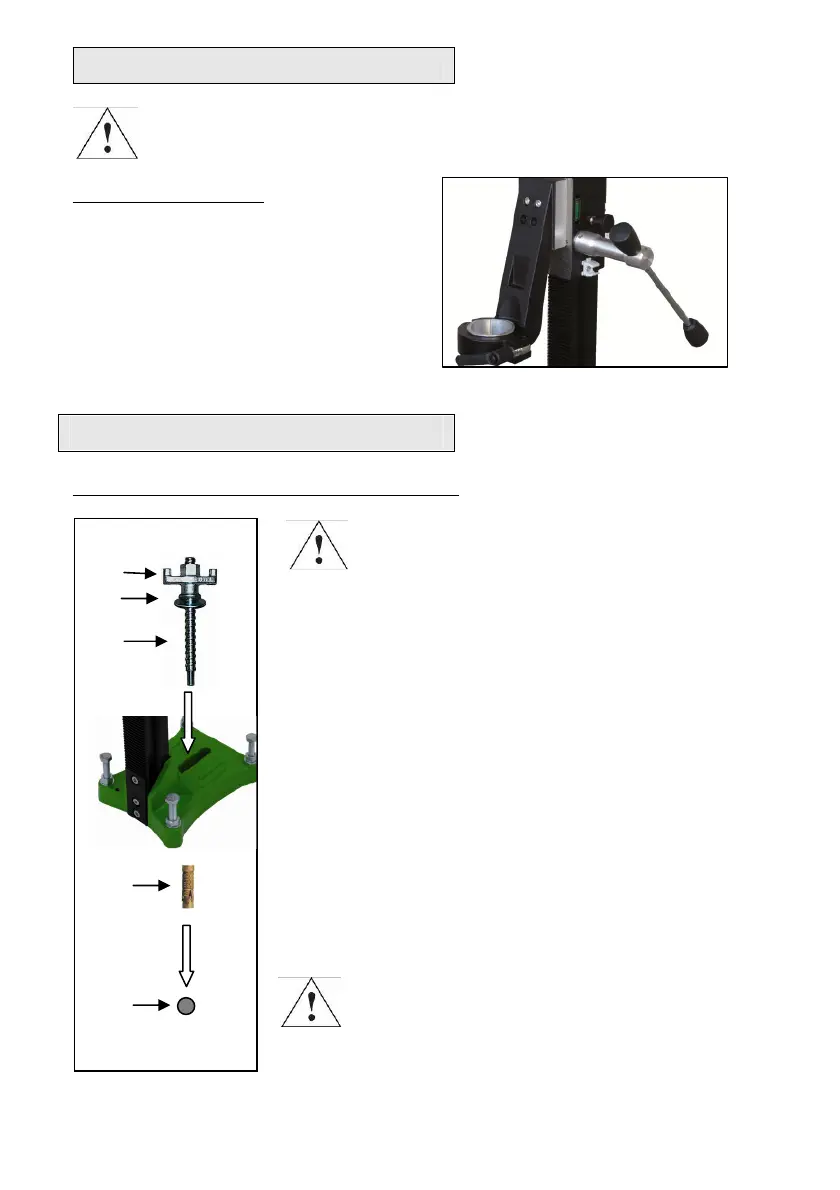

Mounting the turnstile
Mount the turnstile (1) on the
right or left side of the carriage
(2) depending on the work to be
performed.
Check whether the turnstile (1) is
fixed tightly.
Fastening of the Drill Rig
Fastening by means of dowels in brickwork:
For brickwork, Rawl-Dowels
must be used.
Mark the position of the drill holes for the fastening
on the surface to be drilled.
Drill a hole (Ø 20) 50 mm deep (A), into which the
Rawl-Dowel (B) is to be placed; insert the dowel.
2
1
Screw the quick action clamping screw (D) into
the dowel.
Install the drill rig.
Fix the washer (E) and finally the fastening nut
(F) on the quick action clamping screw (D).
Tighten the fastening nut (F) with a wrench
SW 27.
Before and after tightening the nut (F), the 4
adjustable screws have to be adjusted in order
to adapt the rig to the surface.
Do check whether the
drill rig is installed safely
and firmly.
B
E
D
A
F
