Use
After each new adjustment, check that the screws are
tight so that the drill stand can be used safely.

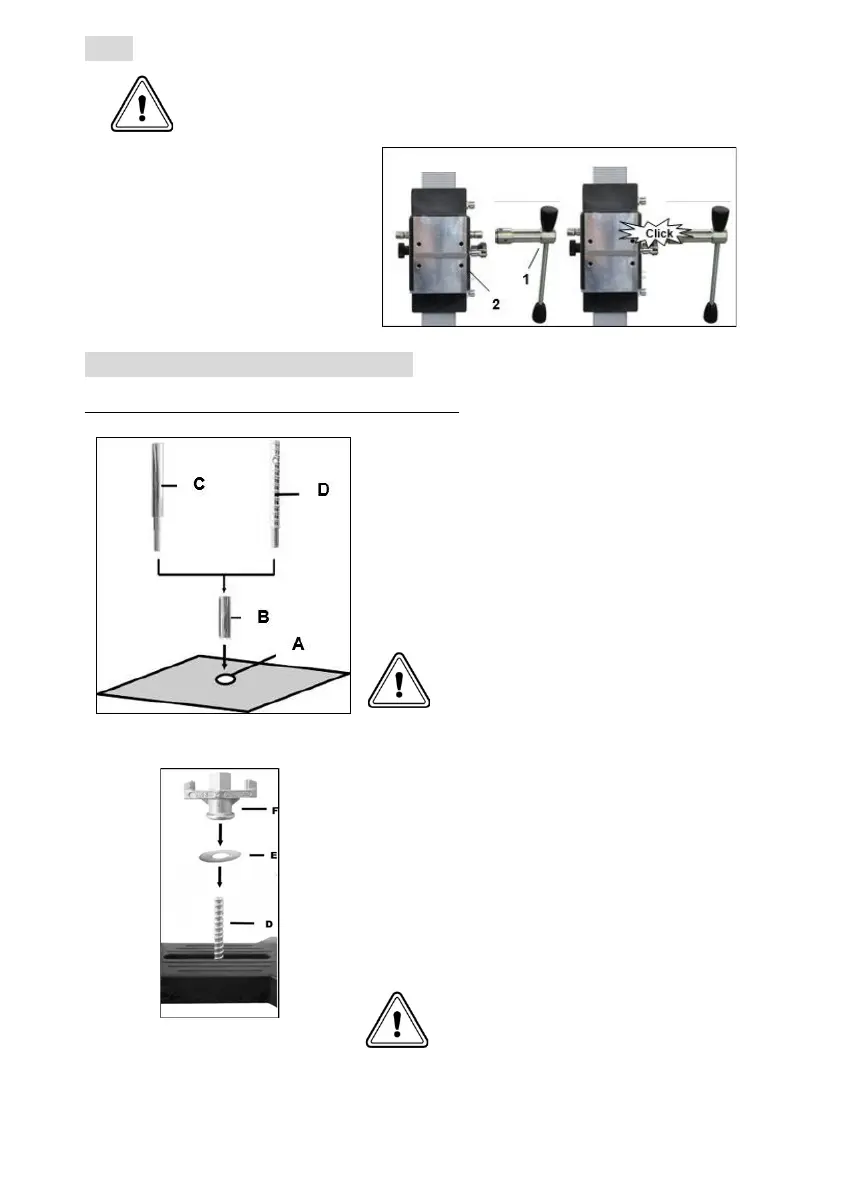

Attaching the turnstile
▪ Attach the turnstile (1) to
the left or right of the carri-
age (2). This depends on
the work to be carried out.
▪ Please check that the turn-
stile (1) is correctly positio-
ned.
Fastening of the Drill Rig
Fastening by means of dowels in concrete
▪ Mark the position of the mounting hole
on the surface to be drilled.
▪ Drill the hole (Ø 16) 50 mm deep (A)
into which the M12 dowel (B) is to be
inserted; insert the dowel and expand
it with the dowel setting tool (C).
▪ Screw the quick-release screw (D)
into the dowel.
Masonry anchors must be used
for masonry.
▪ Put the stand in place.
▪ Secure the washer (E) and finally the
fastening nut (F) on the quick-release
screw (D).
▪ Tighten the nut (F) with a 27 mm
wrench.
▪ Before and after tightening the nut (F),
adjust the 4 adjusting screws as ne-
cessary to adapt to the ground.
Be sure to check that the stand
is securely mounted.
