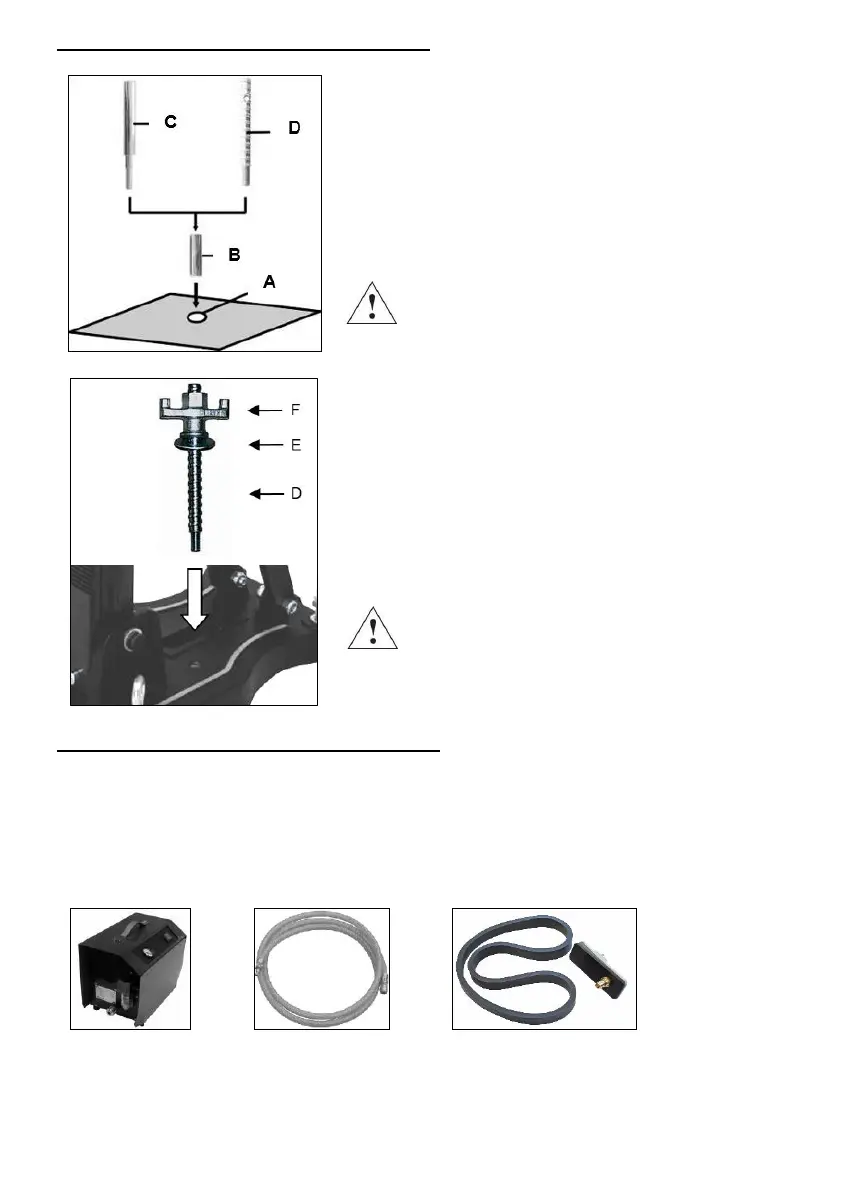

Fastening by means of dowels in concrete
▪ Mark the position of the drill holes for the
fastening on the surface to be drilled.
▪ Drill a hole (Ø 16) 50 mm deep (A), into
which the dowel M12 (B) is to be placed;
insert and secure the dowel with the
doweling tool (C).
▪ Screw the quick action clamping screw (D)
into the dowel.
For brickwork, Brickwork-dowels must
be used (drillhole - Ø 20mm).
▪ Install the drill rig.
▪ Fix the washer (E) and finally the fastening
nut (F) on the quick action clamping
screw (D).
▪ Tighten the fastening nut (F) with a wrench
SW 27.
▪ Before and after tightening the nut (F), the 4
adjustable screws have to be adjusted in
order to adapt the rig to the surface.
Do check whether the drill rig is
installed safely and firmly.
Fastening on the floor by means of vacuum
Don’t use the vacuum mounting on the wall and overhead!
For a low-pressure mounting the surface where the base is mounted must be
not porous and must be flat and free of cracks.
If this is not the case, this kind of mounting can’t be used. For the vacuum
mounting you need a vacuum pump, a vacuum hose and the vacuum set
BST 182 V/S (see fig.). These items are available on request.
