14

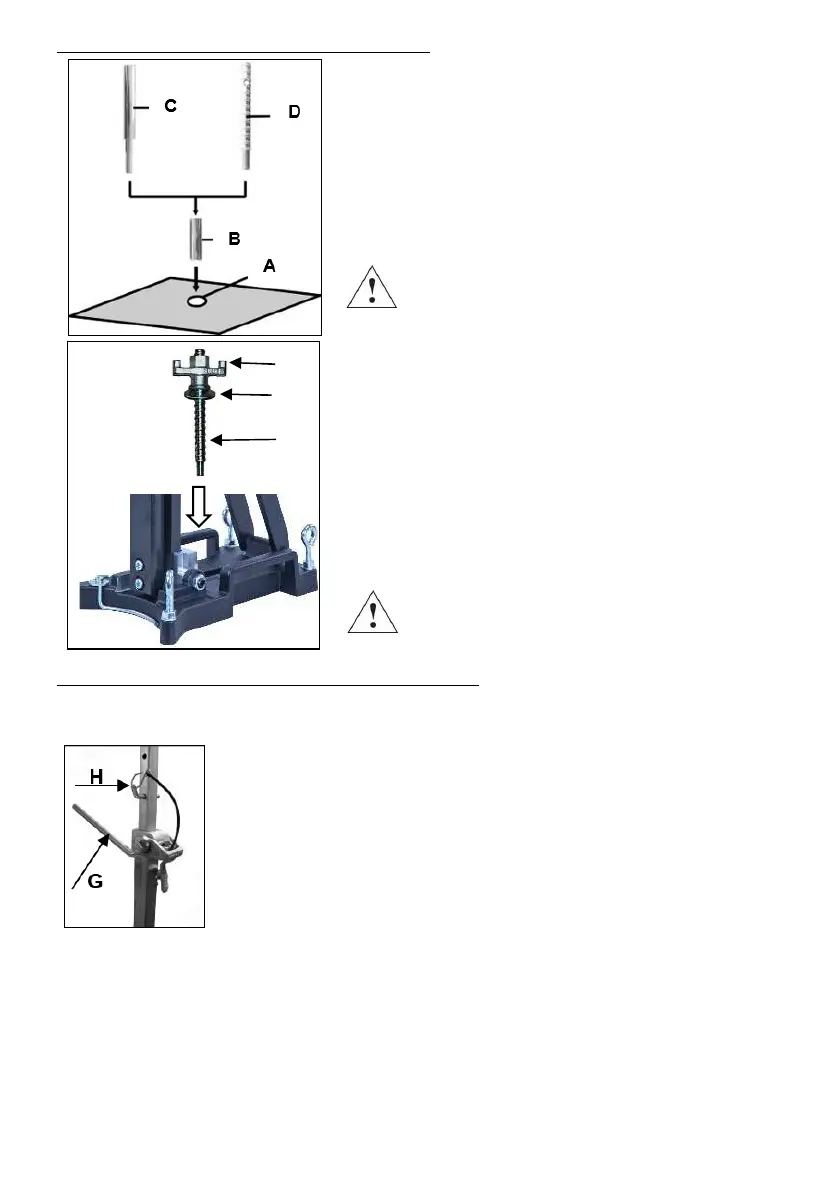

Fastening by means of dowels in concrete
Mark the position of the drill holes for the
fastening on the surface to be drilled.
Drill a hole (Ø 16) 50 mm deep (A), into
which the dowel M12 (B) is to be placed;
insert and secure the dowel with the
doweling tool (C).
Screw the quick action clamping screw (D)
into the dowel.
For brickwork, Brickwork-dowels must
be used (drillhole - Ø 18mm).
Install the drill rig.
Fix the washer (E) and finally the fastening
nut (F) on the quick action clamping screw
(D).
Tighten the fastening nut (F) with a wrench
SW 27.
Before and after tightening the nut (F), the 4
adjustable screws have to be adjusted in
order to adapt the rig to the surface.
Do check whether the drill rig is
installed safely and firmly.
Fastening by means of quick action bracing unit
In order to brace the drill rig by means of the quick action bracing unit, the
distance to the opposite wall must be between 1,7 m and 3 m.
Position the drill rig. Position the quick action bracing unit as
close as possible behind the support on the base of the rig.
Fix the drill rig by turning the crank (G) clockwise. Secure in
position by means of the appropriate bolt (H).
Attention!
It is important, that the drill rig is firmly connected to the surface. If not fixed
correctly, injuries to the operator or damages to the drilling unit may be
caused.
Uncontrolled movements during drilling will cause the drill bit to hit the
surface to be drilled which may lead to a chipping of the segments. The drill
bit might also tilt in the bore hole which consequently will damage it.
F
E
D
