Technical Characteristics
Diamond Drill Rig BST 125 V
Fixture of the motor: collar clamping Ø 53 / 46 mm
Max. drilling diameter 125 mm
Attache: Vacuum suction feet
Locking in top position: Yes
Measures: 390 x 200 x 590 mm
Length of the column: 500 mm
Stroke: 350 mm
Weight: 5,9 kg
Order number: 09659000
Supply
Diamond drill rig with turnstile reduction ring 53/46 mm, assembly tooland
operating instructions in a cardboard box.
Application for Intended Purpose
The diamond drill rig BST 125 V is made for diamond core drills with a collar
diameter from 53 and 46 mm.
The max. drilling diameter must not exceed 125 mm. In case of wrong
handling or misuse, the producer does not assume any liability.
Before first use
The tooth column must be rotated 180° before the first use. To do this, loosen
the screw using a SW Allen key. Turn the column and screw it back on - see
page 3.
Use
After each readjustment always check that the screws are tightly
fixed so that safe operating of the drill rig is possible .

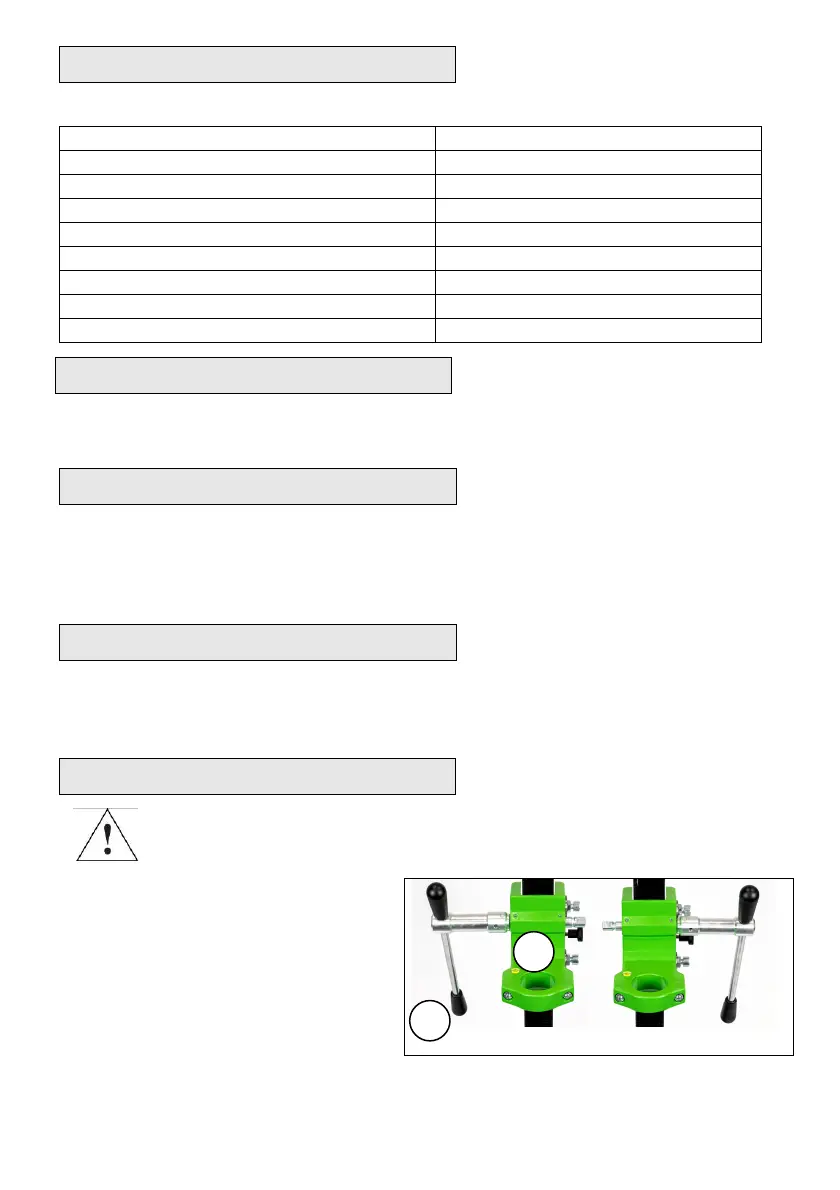

Mounting the turnstile
Mount the turnstile (1) on the right or
left side of the carriage (2)
depending on the work to be
performed.
Check whether the turnstile (1) is
fixed tightly.
1
2
