20

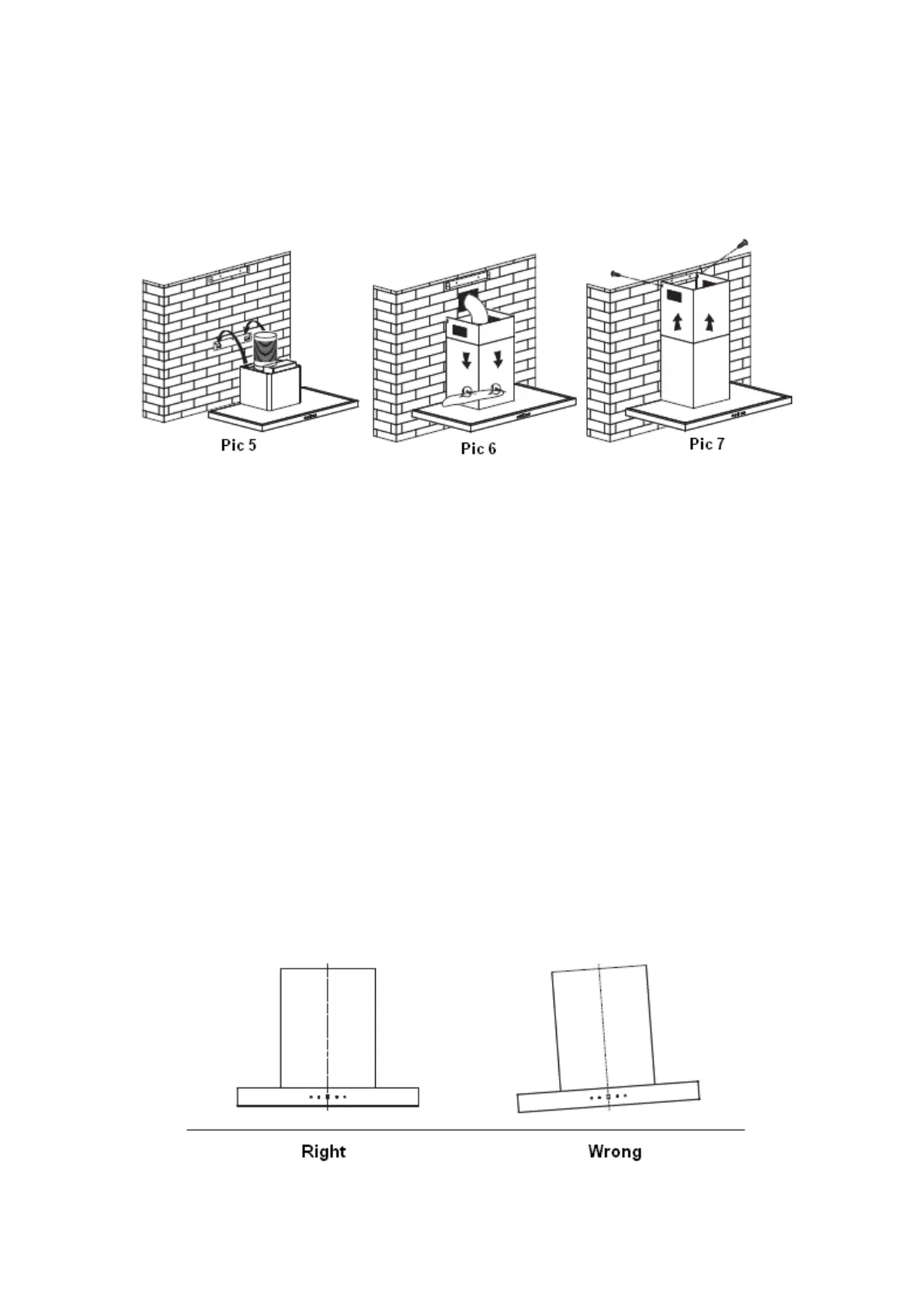

5. Put the cooker hood on the hook. Then adjusting the position and fix the body with
safety screws. Note: The two safety vents are positioned on the back housing, with
diameter of 6mm. See pic 5 & 6.
6. Adjust the height of the inside chimney to the position of the inside chimney bracket
and fix it with screws. See pic 7.
HINTSFOREXHAUSTDUCTINSTALLATION
The following rules must be strictly followed to obtain optimal air extraction:
• Keep expansion pipe short and straight.
• Do not reduce the size or restrict the expansion pipe.
• When using the expansion pipe always install the pipe pulled taut to minimize
pressure loss.
• Failure to observe these basic instructions will reduce the performance and
increase noise levels of the cooker hood.
• Any installation work must be carried out by a qualified electrician or competent
person.
• Do not connect the ducting system of the hood to any existing ventilation system
which is being used for any other appliance ,such as warmer tube, gas tube , hot
wind tube.
• The angle of the bend of the expansion pipe should not be less than 120º; you
must direct the pipe horizontally, or, alternatively, the pipe should go up from the
initial point and should be led to an outer wall.
• After the installation ,make sure that the cooker hood is level to avoid grease
collection at on end.
• Ensure the expansion pipe selected for installation complies with relevant
standards and is fire retardant.
