INSTALLATION

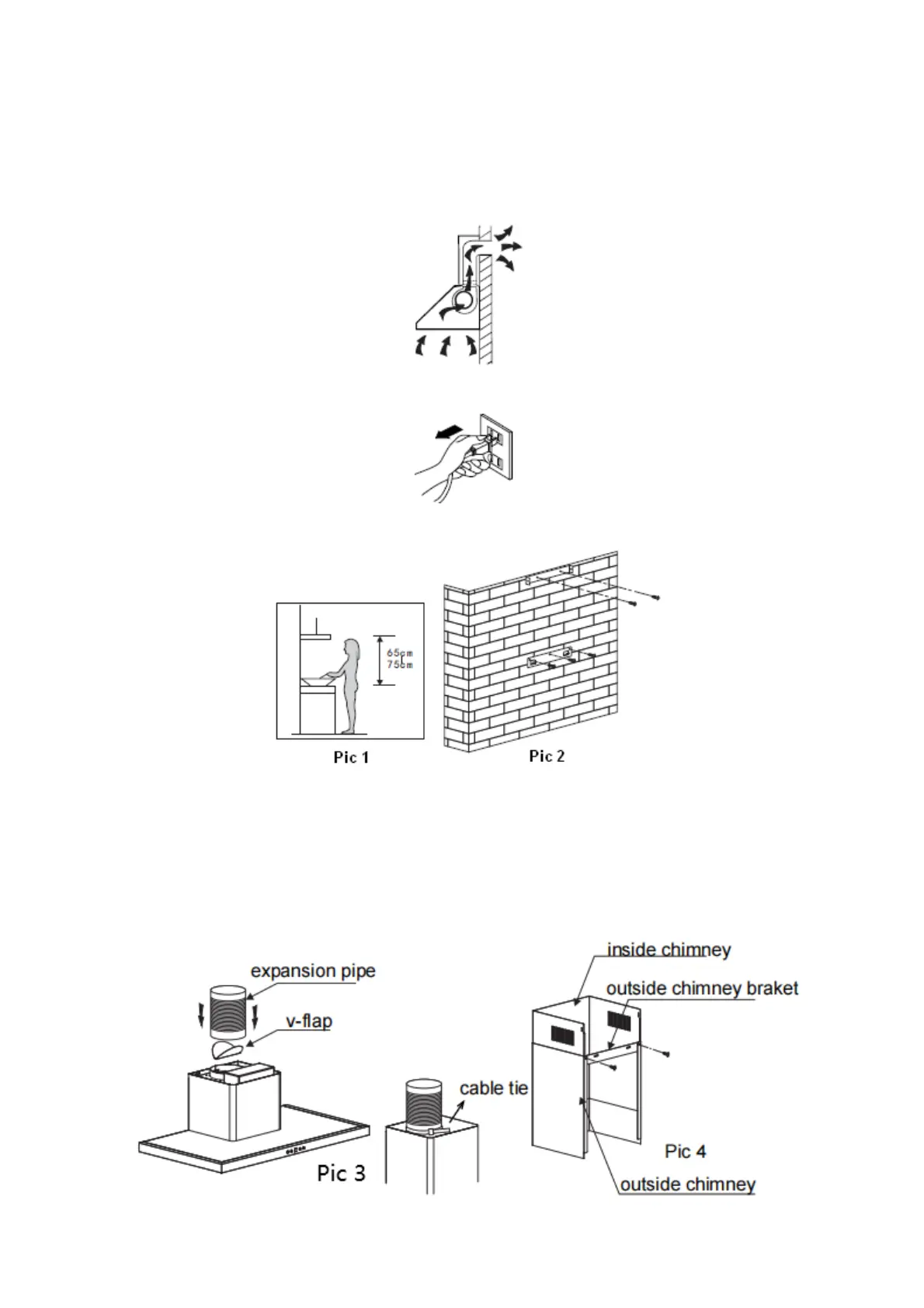

If you have an outlet to the outside, your cooker hood can be connected as below
picture by means of an extraction duct (enamel, aluminum, flexible pipe or non-
flammable material with an interior diameter of 150mm)
1. Before installation, turn the unit off and unplug it from the outlet.
2. The cooker hood should be placed at a distance of 65~75cm above the cooking
surface for best effect.
3. Install the hook on a suitable place once the installation height is fixed, and keep
it in line. The fixed position of the inside chimney bracket is the highest place
of chimney. See pic 2.
4. Fix the outside chimney bracket on the outside chimney, and be sure that the
inside chimney can be adjusted the height in it freely as well as fixing the
expansion pipe. Afterwards, install the expansion pipe and chimney on the
cooker hood. Fix the expansion pipe with a cable tie on the outlet. See Pic 3/Pic 4.
