Use and maintenance manual - Model: “UNICA 10 V/C”
8
ENGLISH
3.3 CHIMNEY FLUE
When installing the chimney ue, the following
provisions must be applied.
• comply with the product standard EN 1856-1;
• it must be installed using materials suitable to
guarantee resistance to normal mechanical and
chemical stress, and have a correct insulation, to
avoid the formation of condensate, therefore it
must be hermetically insulated;
• have a mainly vertical state and
not be choked along its length;
• be correctly spaced using
air cavities and insulated from ammable
materials,
• the changes in direction must be
at most 2 and with an angle not exceeding 45°;
• the chimney ue inside the home must
however be insulated and can be inserted in
a cavity provided it complies with the relevant
piping standards;
• the smoke channel should be connected to the
chimney ue using a “T” joint with an inspectionable
collection chamber for collection of fuel residue
and, in particular, for condensate collection.
It is not possible to connect the appliance to
a chimney ue shared with other combustion
appliances or in the presence of hood exhausts.
It is forbidden to use direct wall discharge or
towards closed spaces or any other form of
discharge not planned by legislation in force in the
country of installation (In Italy, only roof discharge is
permitted)
3.4 CHIMNEY STACK
The standard UNI 10683 states the stack must meet
the following features:
• the smoke outlet section must be at least double
the inner section of the chimney;
• shaped to prevent water or snow penetration;
• be built in such a way that wind cannot affect the
smoke outlet (wind-proof cap);
• the opening measurement, which is measured
between the lower coverage protective layer and
the lower point of the smoke outlet section into the
atmosphere, must be outside the back draught
area;
• Be built far from antennas or satellite dishes and
must never be used as a support.
You are advised to check the safe distances which
must be complied with in the presence of
combustible materials and the type of insulating
material to use (data available directly on the
chimney ue plate)
3.5 HERMETIC PRODUCT

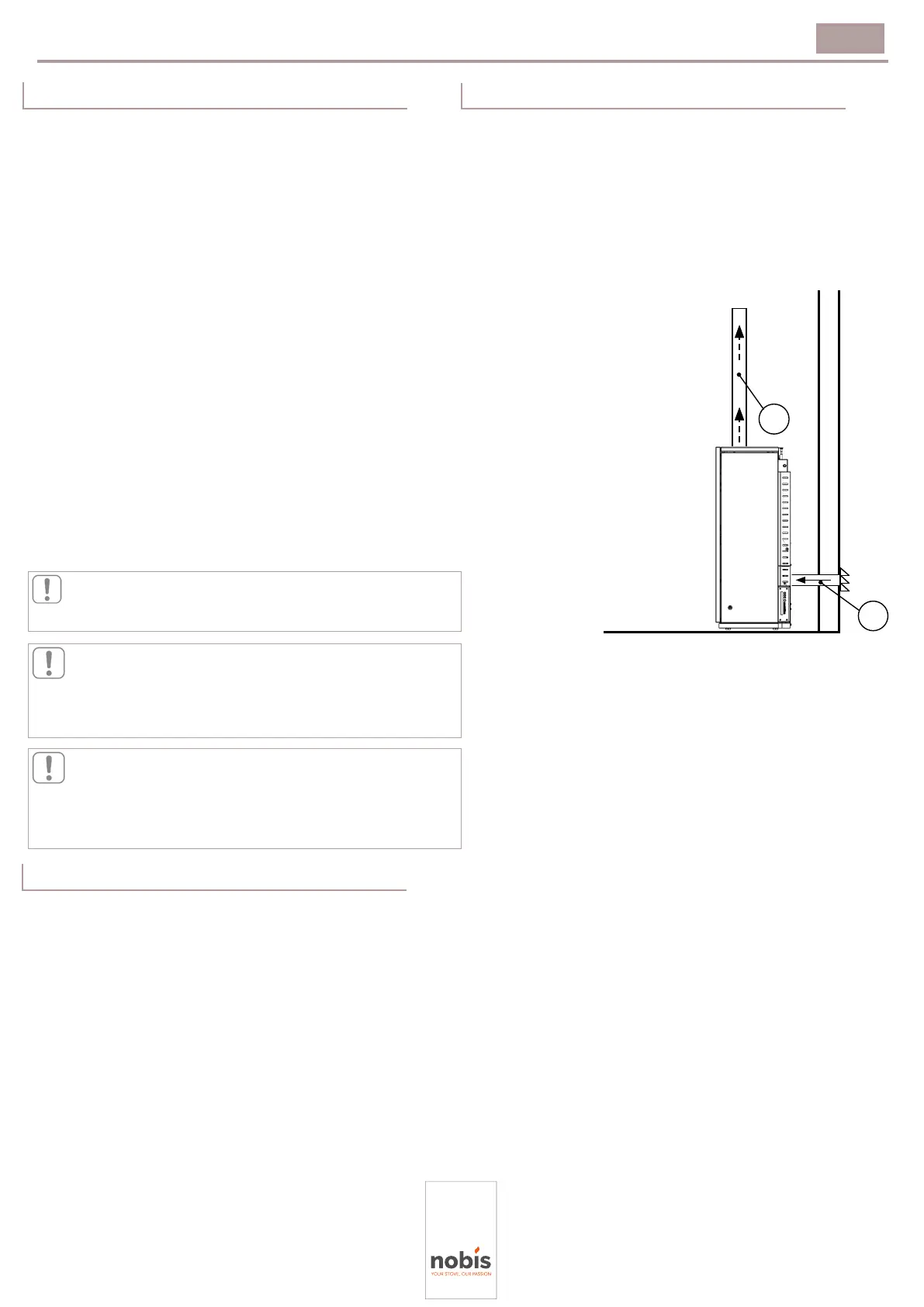

In the event of installation of a hermetic product,
you can execute one of the following types of
connection with the piping:
• smoke discharge (1) and recovery of oxidising air
directly from outside (2)
2
1
