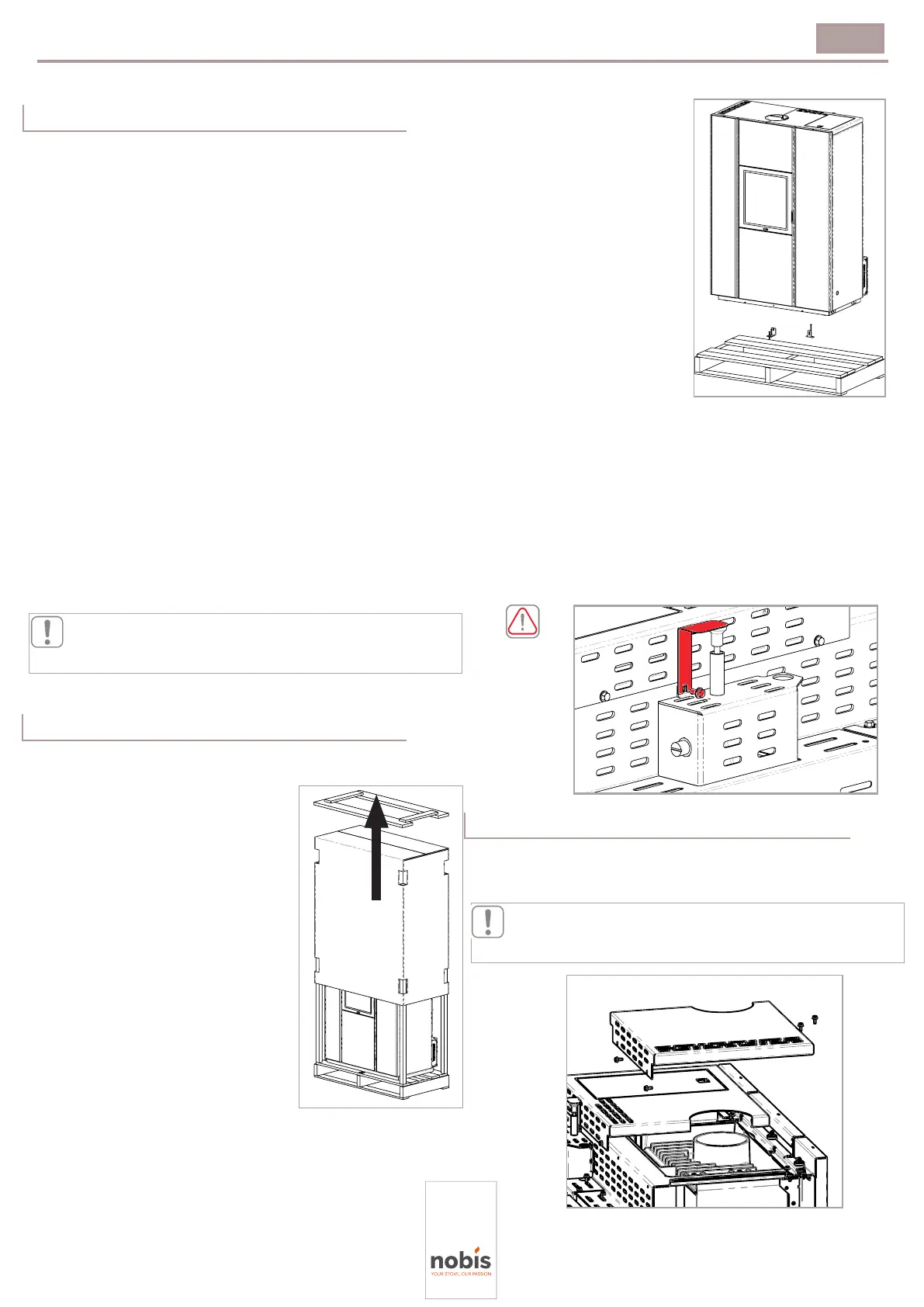

Use and maintenance manual - Model: “UNICA 10 V/C”
10
ENGLISH
3.9
ASSEMBLY OF THE CANALIZATION KIT
Remove the screws securing the upper left cover of
the diffuser.
Installing the canalization kit without removing the
pre-drilled sheet will result in NO heat being emitted
from the canalization kit.
Unlock the control mechanism of the fume safety
hatch (located on the rear right side of the pellet
tank cover) by loosening the locking screw of the
support to release it. Pay attention to the lever,
for it will rise due to the fact that the stove is not
powered. Tighten the screw back in place after
removing the support.
3.7 DOCUMENTATION TO ISSUE
When installation is concluded, the installation
technician must deliver to the user:
• the use and maintenance booklet of the
appliance supplied by the manufacturer;
• the technical documentation of the accessories
used and subject to maintenance;
• the documentation relevant to the evacuation
system of combustion products;
• The system booklet (where planned);
• the documentation certifying installation;
The useful documentation for installation liability
must include:
• a detailed description (also including
photographs) of the presence of other heat
generators;
• Declaration of Conformity of the system
to standard (M.D. 37/08);
• general description, or diagram or
photographic documentation of the changes
made to the system, if intervention was necessary
during installation;
• Use of certied material with the CE mark
(305/2011);
• possible instructions relating to the warranty;
• the date and signature of the installation
technician;
NOBIS SRL cannot be held in any way liable in the
event of non-compliance with the installation and
start-up standards of its products.
3.8 UNPACKING THE PRODUCT
Packaging is composed of
boxes in recyclable cardboard
according to the RESY
standards and wooden pallets.
All packaging materials can
be re-used for similar use or,
if necessary, disposed of as
urban waste, in compliance
with legislation in force.
Remove the strap binding the
pallet to the packaging and
lift the cardboard; remove
the plastic bag around the
product, ensuring it is intact.
The body must always be
moved in a vertical position
using trolleys.
Pay particular attention so
that the door and its glass are
protected against mechanical
impact which would compromise
their integrity.
If possible, unpack the product
near the area where it will be
installed.
To remove the appliance
from the pallet, you can
remove the two screws
placed under the pallet
(13 hex key) to release
the appliance from the
wooden base.
Position the product
and proceed with
its connection to the
chimney ue. Find, using
the 4 adjustment feet,
the right level so that
smoke discharge and
the pipe are properly
correctly.
