Use and maintenance manual, model “LIBERA 8 V/C - LIBERA 11 V/C”
ENGLISH
11
• The smoke duct must be connected to the ue by
means of a "T" tting equipped with an inspectable
collection chamber (necessary for collecting
combustion residue and, above all, condensate);
• The chimney/ue must expel smoke above the
roof, as required by UNI10683 standard.
• It is prohibited to connect the appliance to a
replace/ue shared with other appliances or in
the presence of extractor hoods or other aspirators.
Collective ues are not permitted. It is forbidden to
expel exhaust directly from the wall or into closed
spaces, or in any other way not envisaged by the
legislation in force in the country of installation
(e.g., in Italy, only roof outlet is permitted).
• It is possible to use the air from the interspace of the
chimney stack, in compliance with the provisions
of UNI10683;
• In case of multiple ducting, avoid mutual
interference and pay attention to the pressures,
distances and coexistence of the various ducts, in
compliance with standard UNI10683;
• In case of wet operation, set up the condensate
drainage system by scrupulously following the
provisions set by standard UNI10683;
3.5 CHIMNEY TOP
UNI10683 prescribes that the chimney pot must
comply with the following requirements:
• The smoke outlet section must be at least double if
compared to the internal section of the chimney;
• It must be shaped in such a way as to prevent
water or snow from penetrating;
• A windproof cap must be provided to ensure
proper smoke outlet even in case of wind;
• The smoke outlet level (which is measured
between the lower side of the roof covering and
the lower point of the fume outlet section) must be
outside the reux area;
• It must always be placed away from antennas or
satellite dishes, and must never be employed to
support other objects;
• It must ensure regular maintenance;
• It must be installed at a safe distance from other
chimneys, or obstacles with and without openings
(e.g., doors, windows, dormer windows, skylights,
etc.), in compliance with UNI10683.

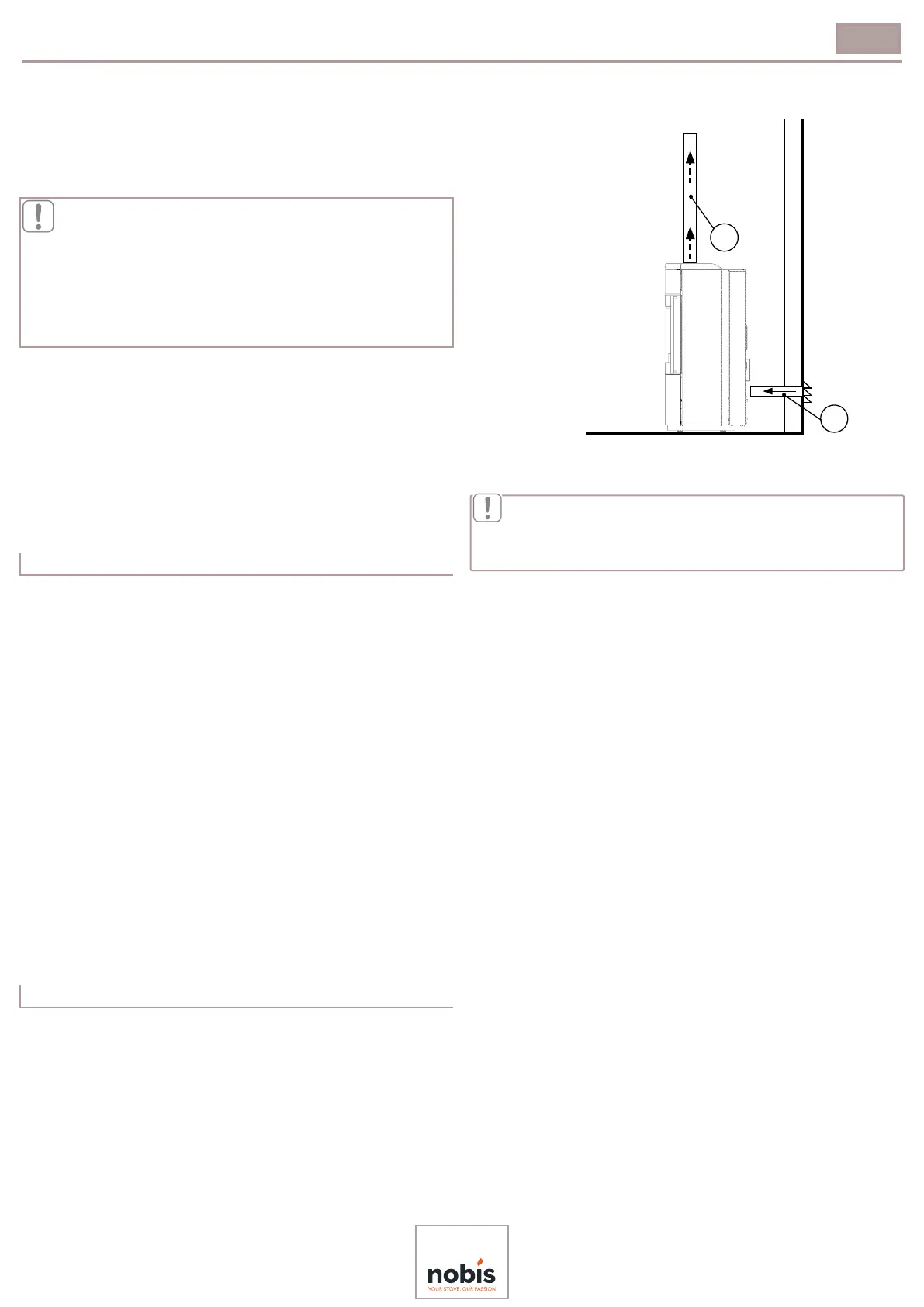

3.6 HERMETIC PRODUCT INSTALLATION
In case of hermetic products, you can follow the
example below:
fume exhaust (1) and recovery of combustion air
directly from the outside (2)
2
1
For installations where combustion air is drawn
directly from the outside, do not exceed 1 (one)
linear meter to ensure proper oxygen supply to
combustion.
