WPaMIX-T / WPaMIX-TUS (USA model)
The WPaMIX-T / WPaMIX-TUS (USA model) is a two-channel micro-mixer with the
standard WPa series wall panel format. It allows an unbalanced stereo signal (RCA) to be
mixed with a microphone signal (XLR) to produce a balanced mono signal output.
The microphone input includes a two-band equaliser (Bass/Treble) and can operate with
priority on the line signal when the microphone exceeds the preset detection threshold.
WPaMIX-T/ WPaMIX-TUS

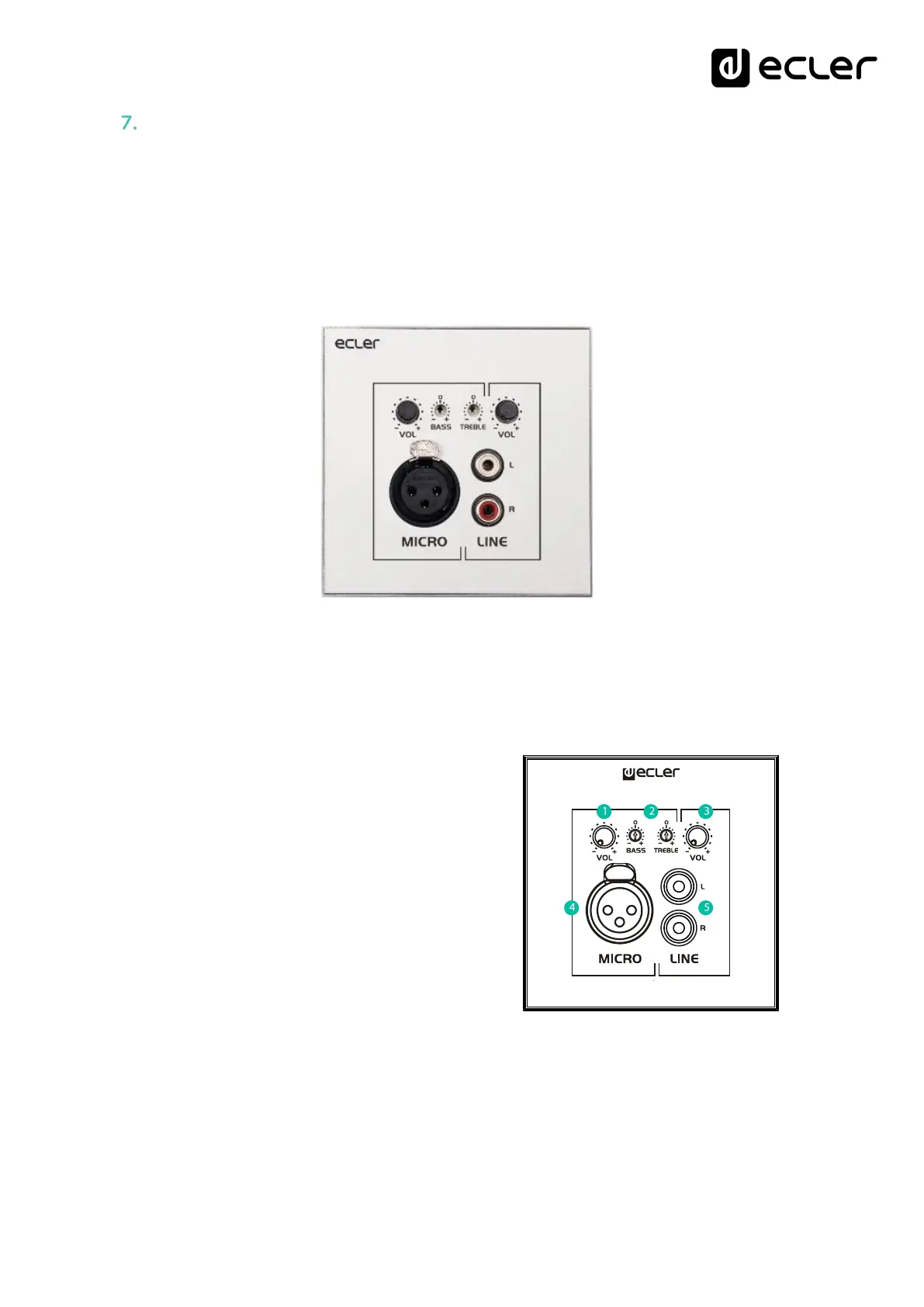

7.1. Function diagram
WPaMIX-T / WPaMIX-TUS functions
diagram
The Line and Microphone signals are mixed with relative levels depending on their
respective VOL volume controls. This mixing is available at the Euroblock connector
output terminals of the unit (unbalanced signal, line level is 0 dBV). Furthermore, the
microphone signal may use the Talkover function in order to automatically attenuate the
line signal when the microphone signal reaches the Talkover detection threshold (see 06.2
for details of Talkover activation)
1. Volume control at the microphone input
2. Bass (100 Hz) and treble (10kHz) tone
controls at the microphone input (±10 dB).
3. Volume control at the line input
4. XLR connector at the microphone input
(balanced signal)
• Sensitivity: -20 to -40 dBV
5. RCA line input connectors (unbalanced signal)
• Sensitivity: -10 dBV.
