6
CONNECTIONS
5.1. Mains connection and switching on
WPaBT requires an external power supply, 24VDC (connected to the DC IN terminals).
It is recommended to use the Ecler WP24-PSU power supply, which can power up to 10
WPaBT units (depending on voltage lost as a result of the length and cross-section of
the cables). To avoid electromagnetic interferences, power cable length must be limited
to 3m.
Recommendation: Given that the WPaBT has no electromagnetic shielding, it is strongly
recommended to avoid installing it close to any radiation sources or high-voltage cables,
such as power supply cables, light cables or similar.
5.2. Output audio connections
WPaBT has 2 balanced audio outputs (left and right) with 3-pin Euroblock connectors,
in the following layout:
• Hot or direct signal > Terminal +
• Cold or inverted signal > Terminal -
• Ground > Terminal ⊥
When connecting an output channel to an amplifier or audio device with a balanced input,
the +, - and ⊥ terminals must be connected point-to-point between the two devices.
When connecting an output channel to an amplifier or device with an unbalanced audio
input, don't connect the - terminal to anything.

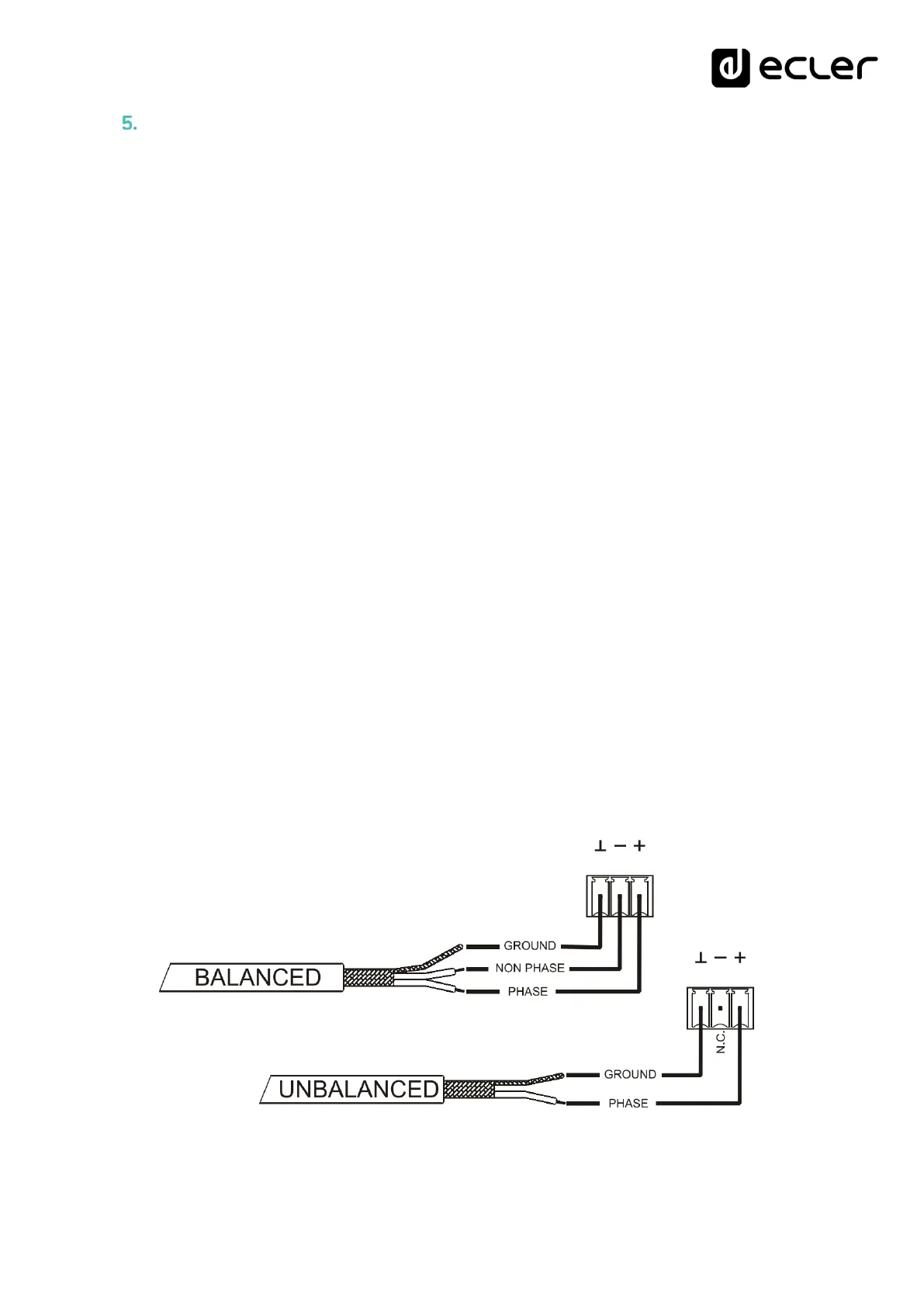

Figure 1: Balanced Audio Output Connection
