7
PANEL DESCRIPTIONS

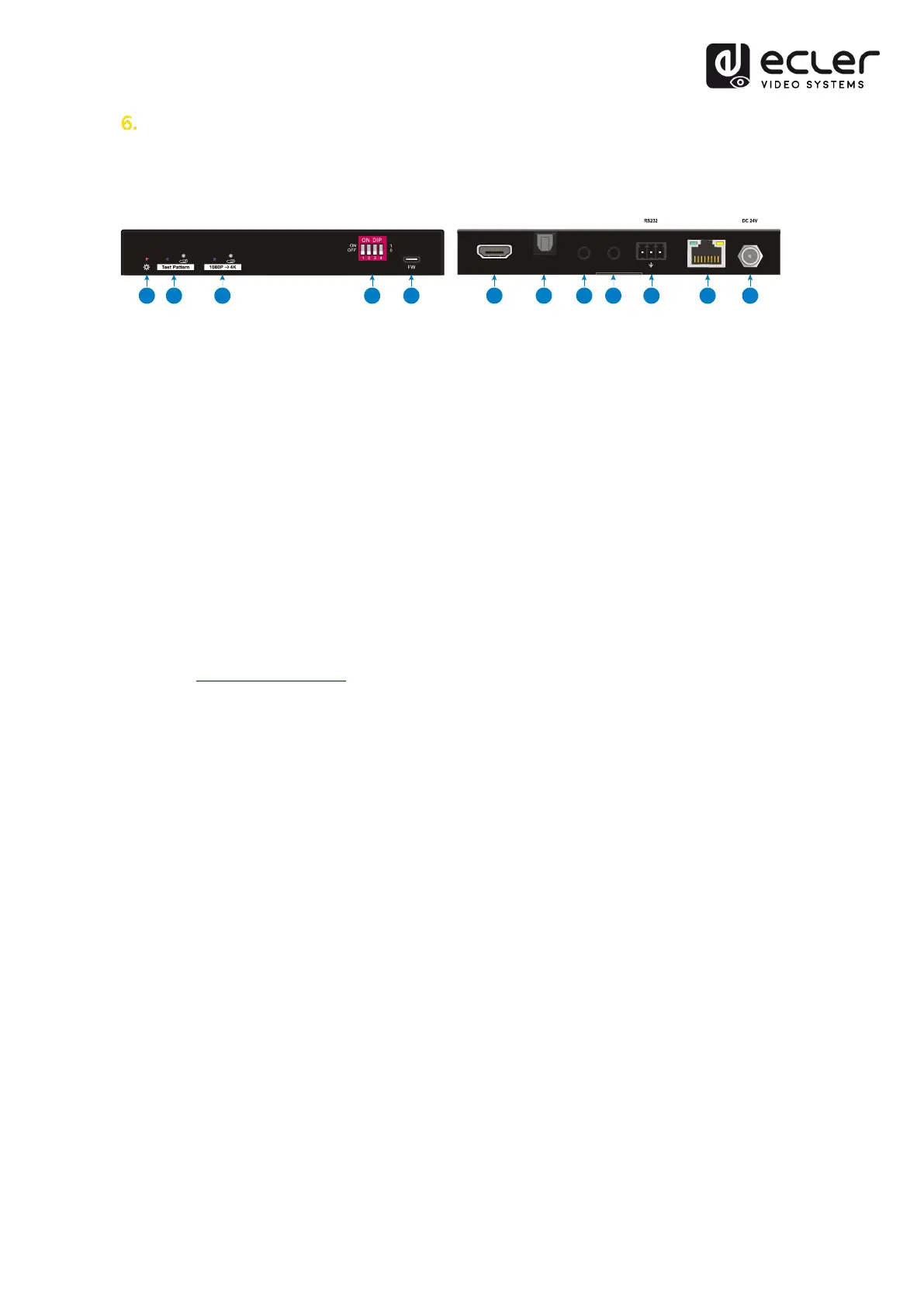

6.1. Transmitter Frontal Panel and Rear Panel
1. Power LED: The LED illuminates red when power is applied.
2. Test Pattern: Pressing the button with paper clip or other pointed tool, the left
LED illuminates blue and the device generates an image of 1080P/60Hz color bar
to output; Pressing this button again, the left LED will blink blue at an interval of
500ms and the product generates an image of 4K/60Hz 4:4:4 color bar to output.
Press and hold this button for three seconds again can exit the Test Pattern mode.
3. 1080P → 4K: Press and hold the button at least three seconds with paper clip or
other pointed tool to enable 1080P to 4K up-scaling, and then the left LED
illuminates blue. Press and hold it again to exit.
4. EDID: 4-pin DIP switch for EDID setting and HDCP mode selection. Please refer
to EDID Management for more details.
5. FW: Micro-USB port for firmware upgrade and user-defined EDID upload.
6. HDMI In: Type-A female HDMI input port to connect a HDMI source.
7. ARC Audio Out: Toslink connector to connect speaker or amplifier for ARC audio
output.
8. IR In: 3.5mm jack to connect the IR receiver (not included) for IR pass-through.
9. IR Out: 3.5mm jack to connect the IR emitter (not included) for IR pass-through.
10. RS232: 3-pin terminal block to connect the RS232 control device (e.g. PC) or a
third-party device to be controlled.
11. HDBT Out: RJ45 port to connect the HDBT input port of receiver by CATx
Ethernet cable. The LINK LED illuminates orange when there is a valid HDBaseT
link between the transmitter and the receiver. The HDCP LED illuminates green
when the video contains HDCP content.
12. DC 24V: DC connector for the power adapter connection.
Tx Rx
LINKHDCP
1
2
3 4
5
6
7
8
9
10
11
12
H
D
B
T
O
u
t
HDMI In
I
R
O
u
t
I
R
I
n
ARC Audio Out
