12

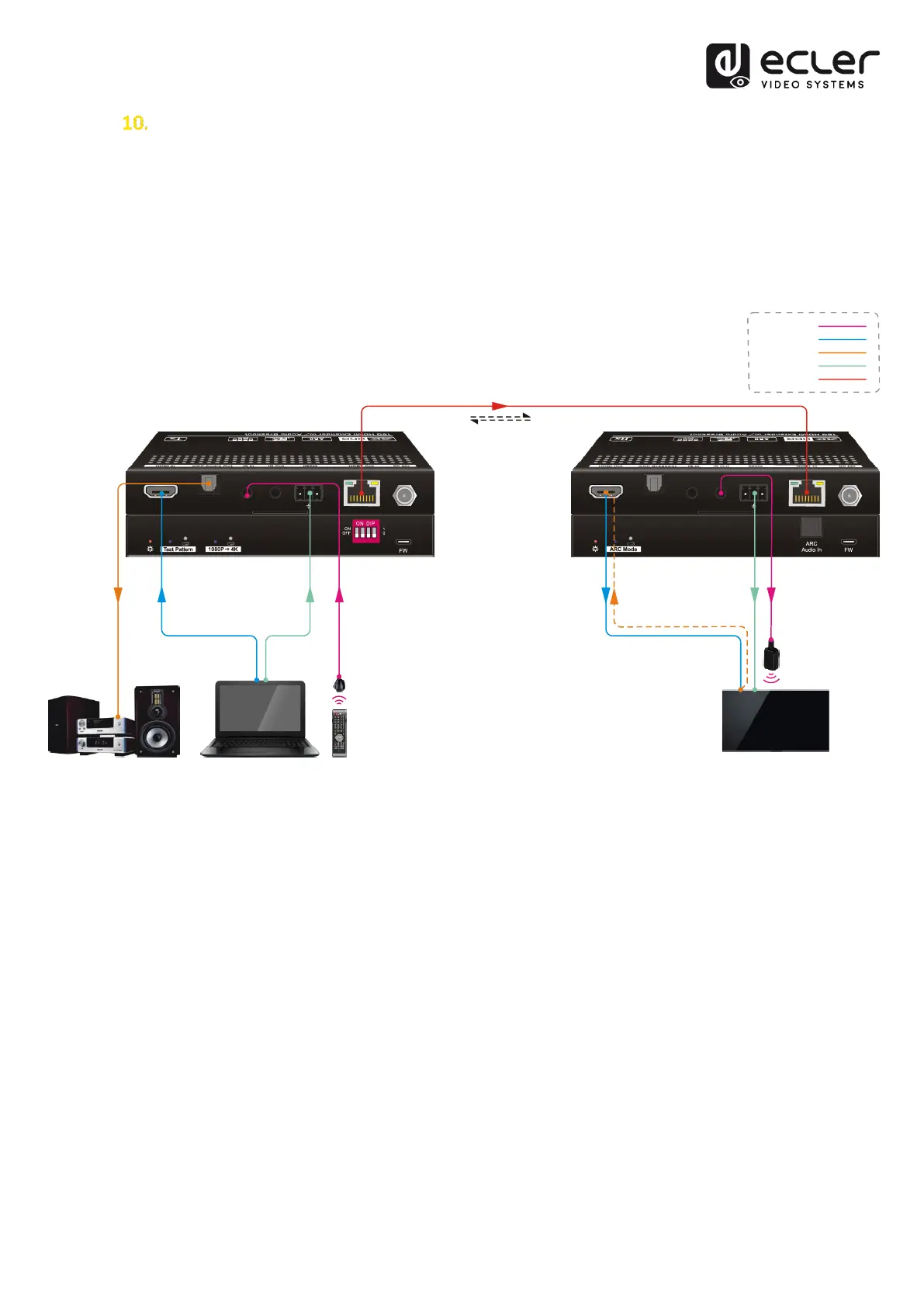

SYSTEM CONNECTION
The following diagram illustrates the typical input and output connections of the
extender:
1. ARC mode of receiver is ON, and the display device (e.g. HDTV) supports ARC.
The TV audio is transmitted from the TV back to the receiver via HDMI cable, and
then it will be output by the ARC Audio Out port of transmitter.
Note: STP cable is recommended to ensure optimal device performance in ARC
mode.
1 2 3 4
Tx Rx
LINKHDCP
Tx Rx
LINKHDCP
Speaker Laptop
Remote
HDTV
HDMI:
HDBaseT:
Audio:
IR:
RS232:
ARC
ARC
Tx
Rx
IR
Receiver
PoC
4K 40m 1080P 70m ,
IR
Emitter
