7
On the rear panel, there is a power switch for the unit next to the IEC power connector.
On the front panel, a LED lights up when the unit is switched on.
The mains cables must not be near the shielded cables carrying the audio signal, as this
could cause humming.
5.3. Signal input connections
The rear panel of a MIMO SG unit offers 8 (MIMO88SG) or 12 (MIMO1212SG) balanced
analogue signal inputs, "IN", accepting both line and microphone level signals. Input signal
type selection and management are carried out from EclerNet Manager application.
Please refer to EclerNet Manager Software manual at www.ecler.com for more
information.

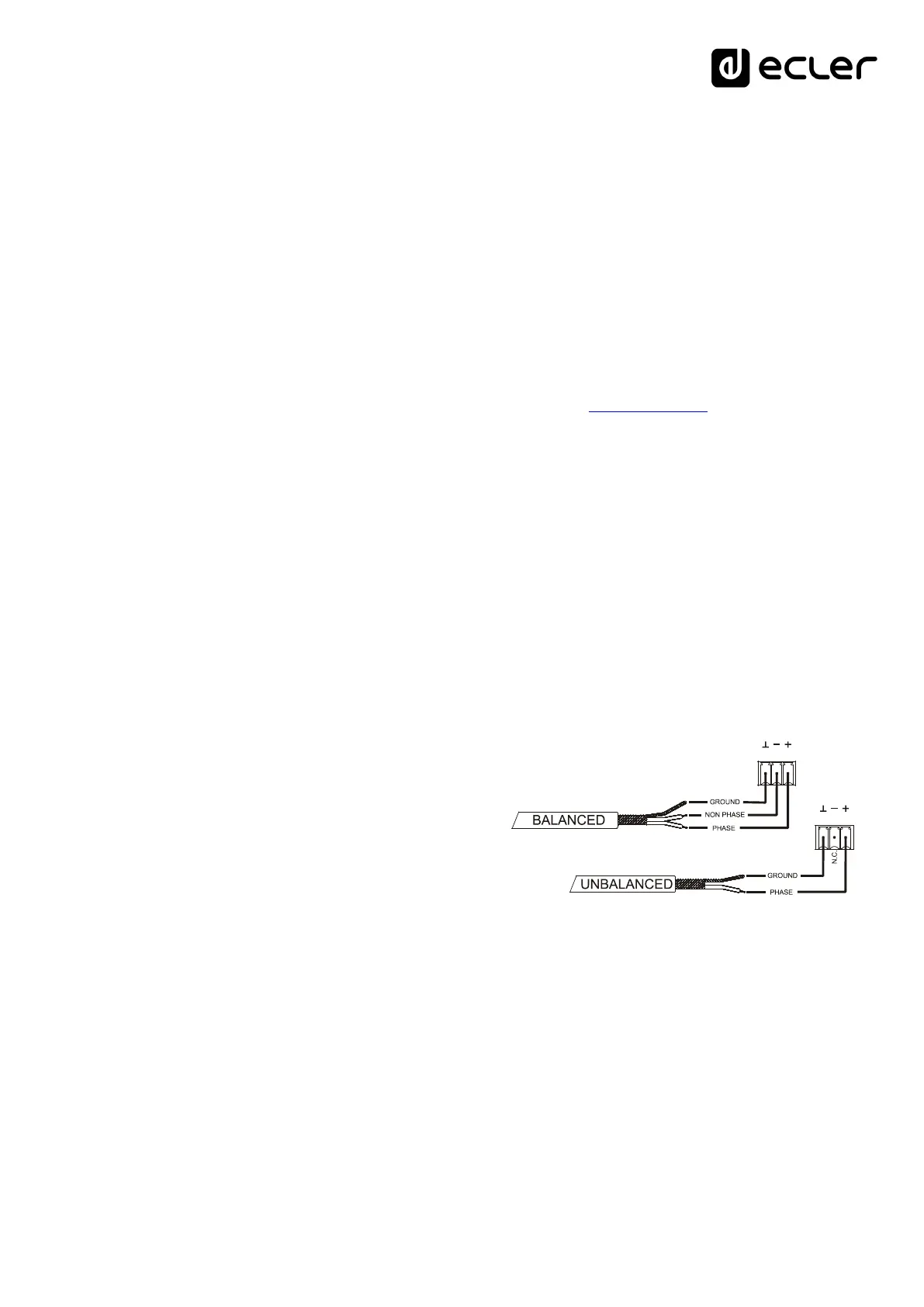

Signal input connectors are 3 position screw terminal block. The wiring is:
Hot or direct signal > Terminal +
Cold or inverted signal > Terminal -
Ground > Terminal ⊥
For unbalanced connection short-circuit pin ⊥ to pin -.
5.4. Audio Output Connections
The rear panel of a MIMO SG offers 8
(MIMO88SG) or 12 (MIMO1212SG) analogue
signal outputs "OUT", all balanced and accepting
line level signals.
Signal output connectors are 3 position screw
terminal block. The wiring is:
Hot or direct signal > Terminal +
Cold or inverted signal > Terminal -
Ground > Terminal ⊥
For UNBALANCED connections, leave the – terminal unconnected.
