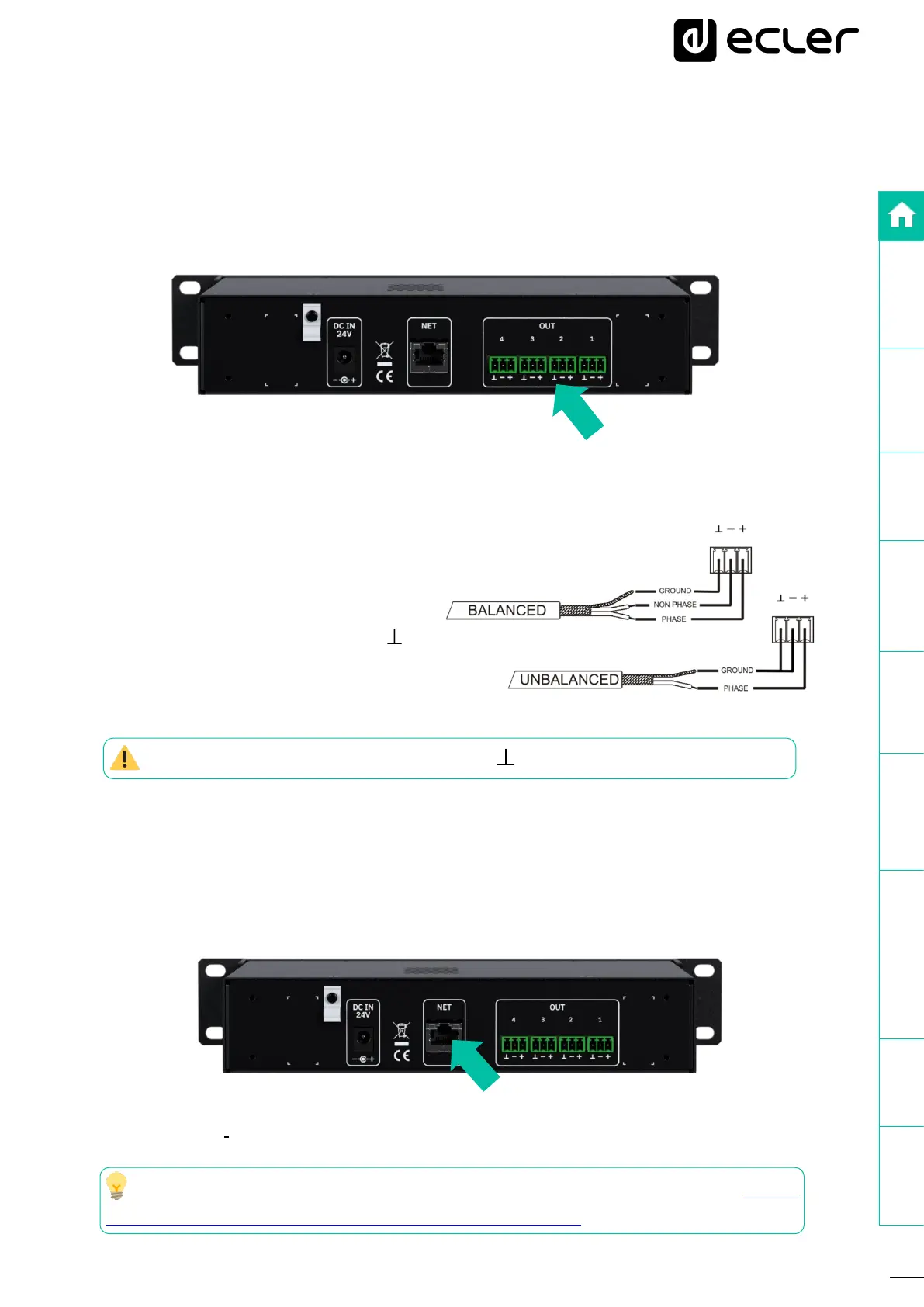

5.2 Connections
5.2.1 Audio output connections
BOB-04 rear panel provides 4 analogue outputs for line-level signals.
Signal output connectors are 3 position screw terminal block. The wiring is:
For unbalanced connection short-circuit pin to pin − as reported on the picture.
5.2.2 Ethernet / Dante/AES67 port
The RJ-45-type ETHERNET connector on the rear panel, allows the device to be
connected to an Ethernet network.
BOB-04 allows reception of 4 Dante/AES67 channels.
For further information on Network Configuration and Dante routing, please refer to
the chapter Network Configuration and Dante/AES67 Routing.
Live or direct signal
>
Pin
+
Cold or inverted signal
>
Pin
-
Ground
>
Pin
