5. INSTALL & CONNECT
5.1 Installation
BOB-04 has been especially designed to be installed in a standard 19" rack, taking up 1U
(height) and only half the width. It includes a half rack adapter which allows two rack width
media devices to be mounted on racks of 1 standard unit of measure (19”). Please refer
below for the assembly instructions.
Since the device features a heat generator, it should not be enclosed or exposed to
extreme temperatures.
If multiple units are installed in the same rack or in a cabinet with closed doors, it is
highly recommended to install fans in their upper and lower ends for a forced air flow from
the bottom up. This upward air flow will favour the dissipation of heat generated inside.

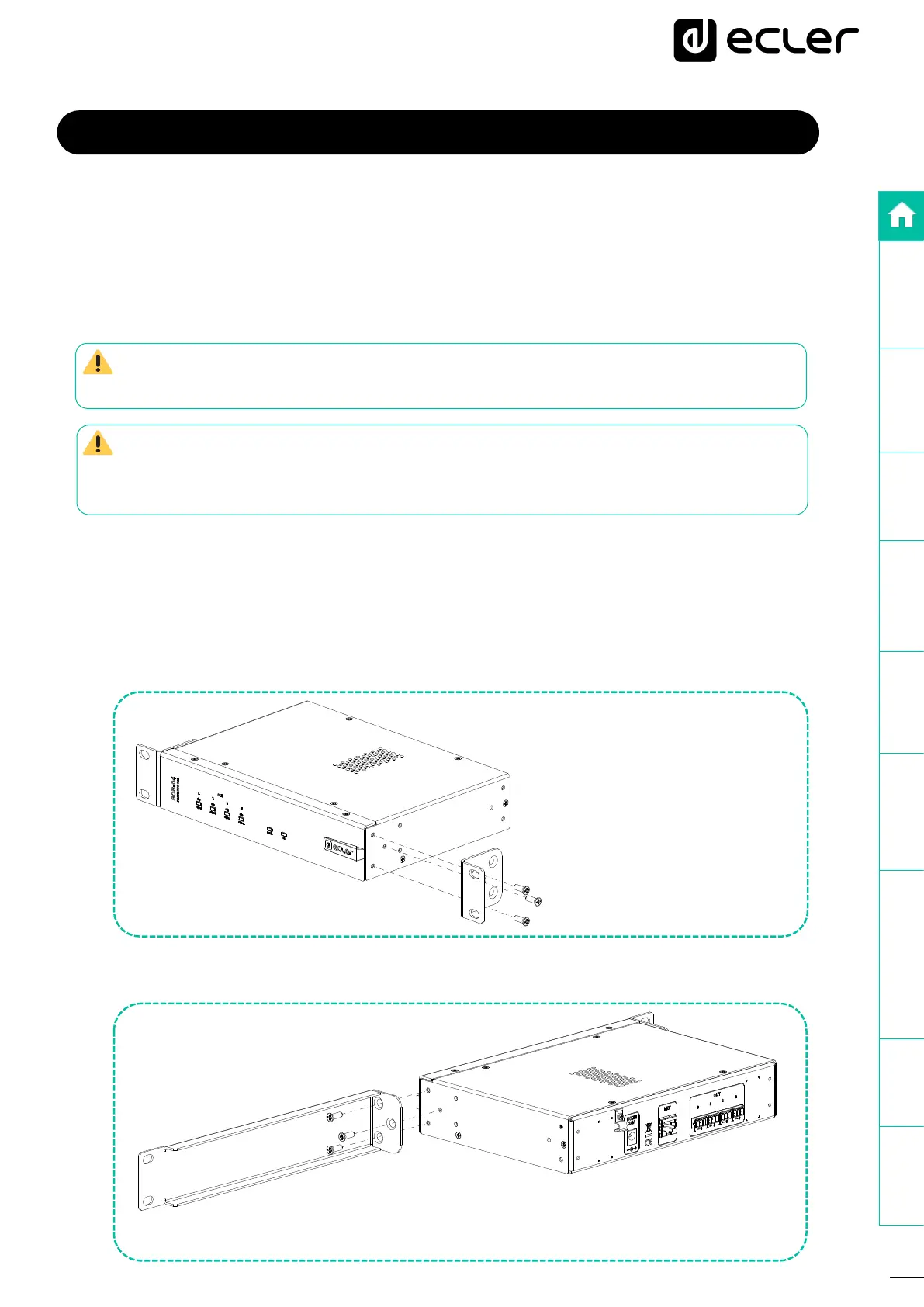

5.1.1 Half Rack Adapter Assembly
BOB-04 includes a half rack front adapter which allows two rack width media devices to
be mounted on racks of 1 standard unit of measure (19”).
1
Unscrew the 3 screws of one
of the side brackets
2
To attach the supplied front half-rack adapter, use the same 3 screws
previously removed
