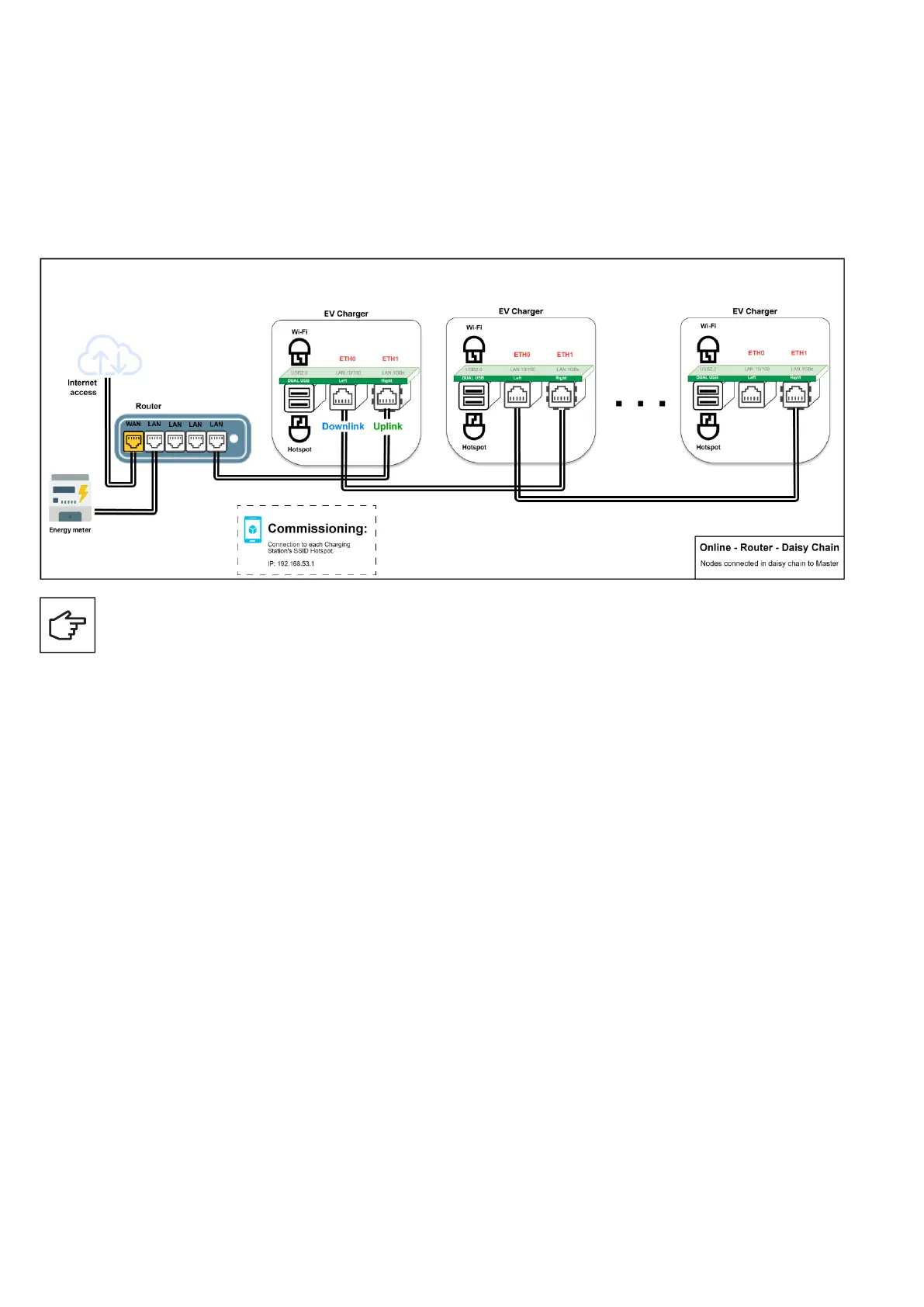

Figure 64. Network diagram: Master connected via Ethernet, Nodes connected to Master and each other
8.4.4 Conguration 4: Master connected to the internet via Ethernet switch, Nodes connected
to Master and each other in daisy-chain topology using RJ45 cable.
The maximum number of connected EV chargers in this configuration is 50. When creating a daisy-chain network
using RJ45 cable, it is important to consider the locations of the Ethernet ports on the EV charger:
•
ETH0 (left port) of the Master should be connected to theETH1 (right port) of Node 1.
•
ETH0 (left port) of Node 1 should be connected to the ETH1 (right port) of Node 2.
•
ETH0 (left port) of Node (n-1) should be connected to the ETH1 (right port) of Node (n).
If an EV charger acting as a Node fails in this network configuration, all Nodes that are connected to the right of the
chain from the point of failure will be unable to communicate with the Master and will be unavailable.
86
GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
