8.4.2 Conguration 2: All EV chargers in the network connected to the internet via Wi-Fi router
The maximum number of connected EV chargers in this configuration depends on router limitations. The maximum is 30. The
installer is responsible to ensure sufficient signal strength, coverage, and data availability of the Wi-Fi network.

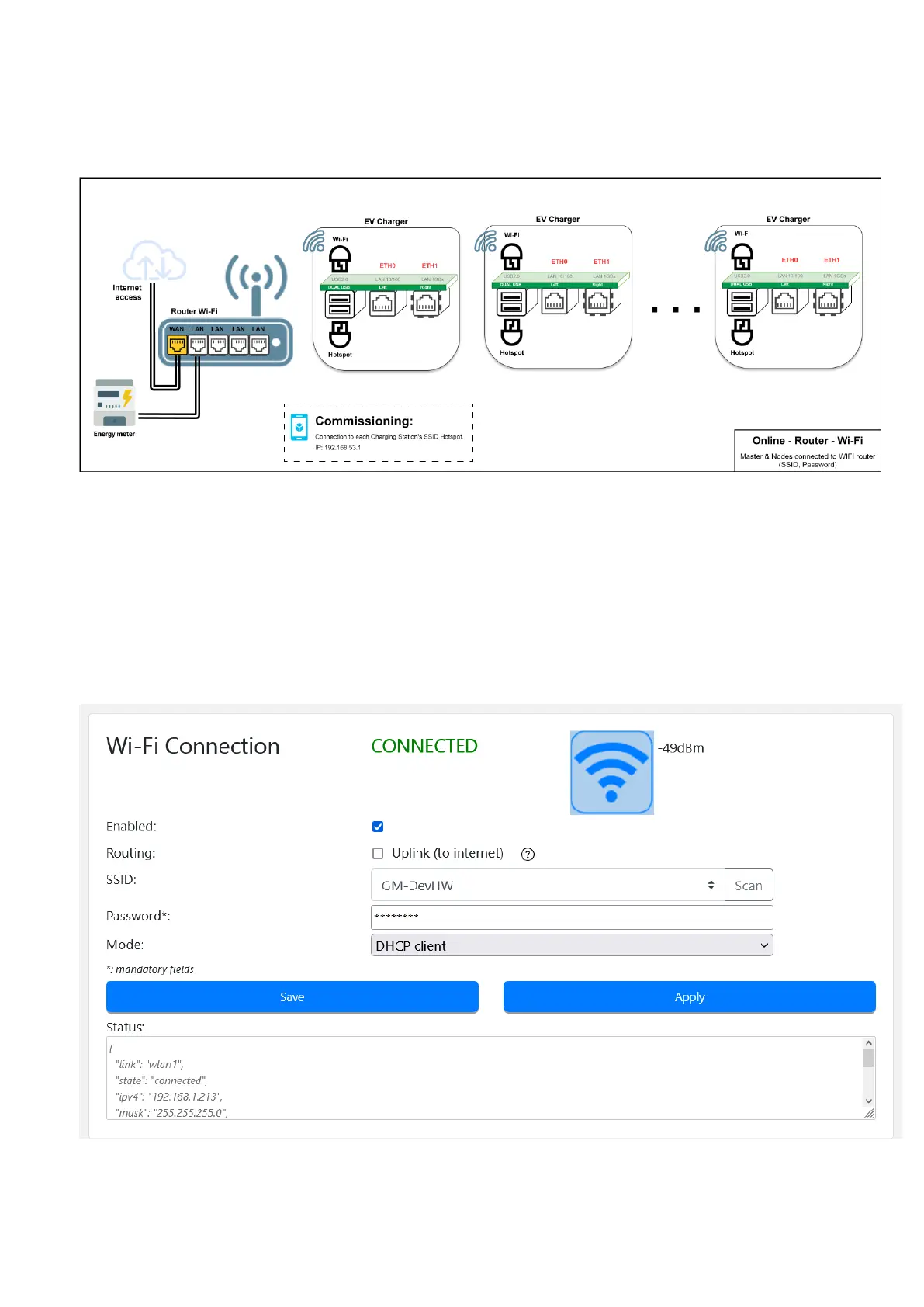

Figure 56. Network diagram: All EV chargers connected via Wi-Fi router
8.4.2.1 Wi-Fi connection settings for Master and Node EV chargers
To configure a Wi-Fi connection for EV chargers (both Master and Node), proceed as per the following steps:
Step 1. Go to the “Wi-Fi connection” section (Figure 57).
Step 2. Enter SSID information (also available as a selection from the list).
Step 3. Enter the password for the selected SSID.
Step 4. Set “Mode” to “DHCP client”.
Step 5. Click “Save” and “Apply.”
Figure 57. Wi-Fi connection settings for the Master and Nodes
81GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
