6.5.3 Verication
Check the following points to provide evidence and to demonstrate the compliance of the EV charger with EV-ready
standards:
Harmonic distortion and unbalanced loading on the electric power supply:
The electric power supply must imperatively comply with the international standards IEC 61000-2-1, 61000-2-2, EN
50160 § 4.2.4 and § 4.2.5.
Low frequency conducted disturbances in the power supply up to 150 kHz ‘supraharmonics’:
The noise level in the frequency band 0 kHz – 150 kHz (excluding harmonics) shall not exceed 4 % of the phase to
neutral voltage.
If these points cannot be verified, the installation must be adapted to comply with the standards (additional filter,
different electrical connection etc...).
If this condition is not met, then a separating transformer must be installed upstream of the EV charger.
Step 5. Connect the wires to the shunt trip by passing through the communication cable gland at the bottom of the
EV charger. Carefully route the wires, making sure the wires do not touch the electronic boards.
Step 6. Carefully reassemble the platform and close the Green Motion Building. EV charger.
If after installation of the shunt trip a contactor failure occurs in the EV charger, the EV charger enters a fault mode.
The LED indicator on the front cover turns red. See Section 9.2. After a few seconds, the emergency output activates
the shunt trip, switching off the circuit breakers.

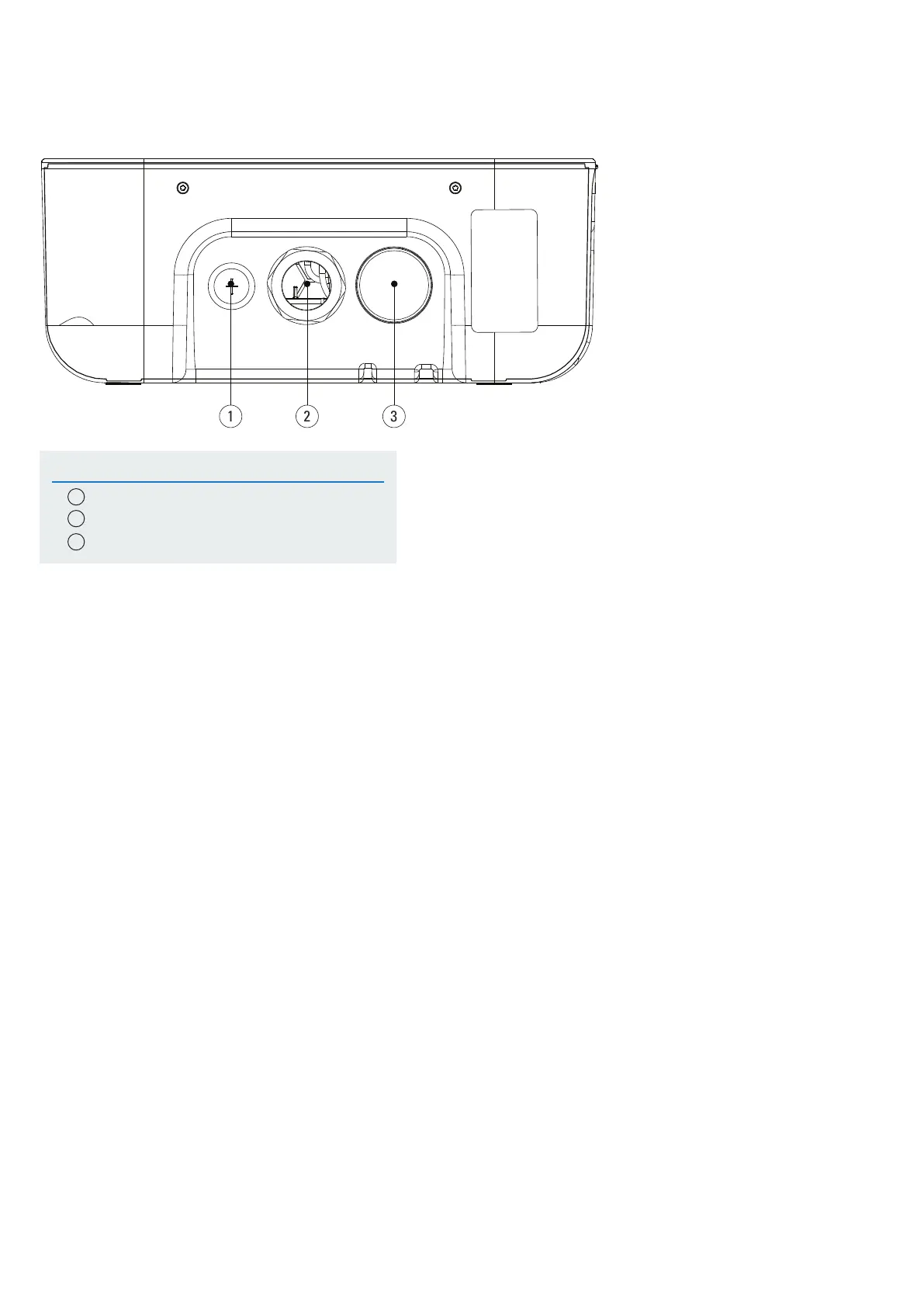

Figure 21. Bottom view of the Green Motion Building. EV charger
2
1
3
Tag Description
1
Communication cable gland
2
Power input
3
Cable output
40
GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
