EV-ready compliance requires that the EV charger can execute an emergency stop in case of contactor failure.
In Italy and the Netherlands, it is also required by IEC 61851-1 that EV chargers equipped with no-shutter outputs
(cable or T2 socket) can execute an emergency stop in case of contactor failure.
In order to execute an emergency stop, the circuit breakers of the Green Motion Building EV charger need to be
equipped with a tripping coil/shunt trip, a device designed to switch the circuit breakers off remotely. The shunt
trip should have a DC voltage rating of 24 V and should be connected on the supply lead control wire, connected to
the E terminal of the EV charger. See the wiring diagram in Figure 16. The installation process should be done by an
EV-ready certified installer and following the requirements listed in this section.

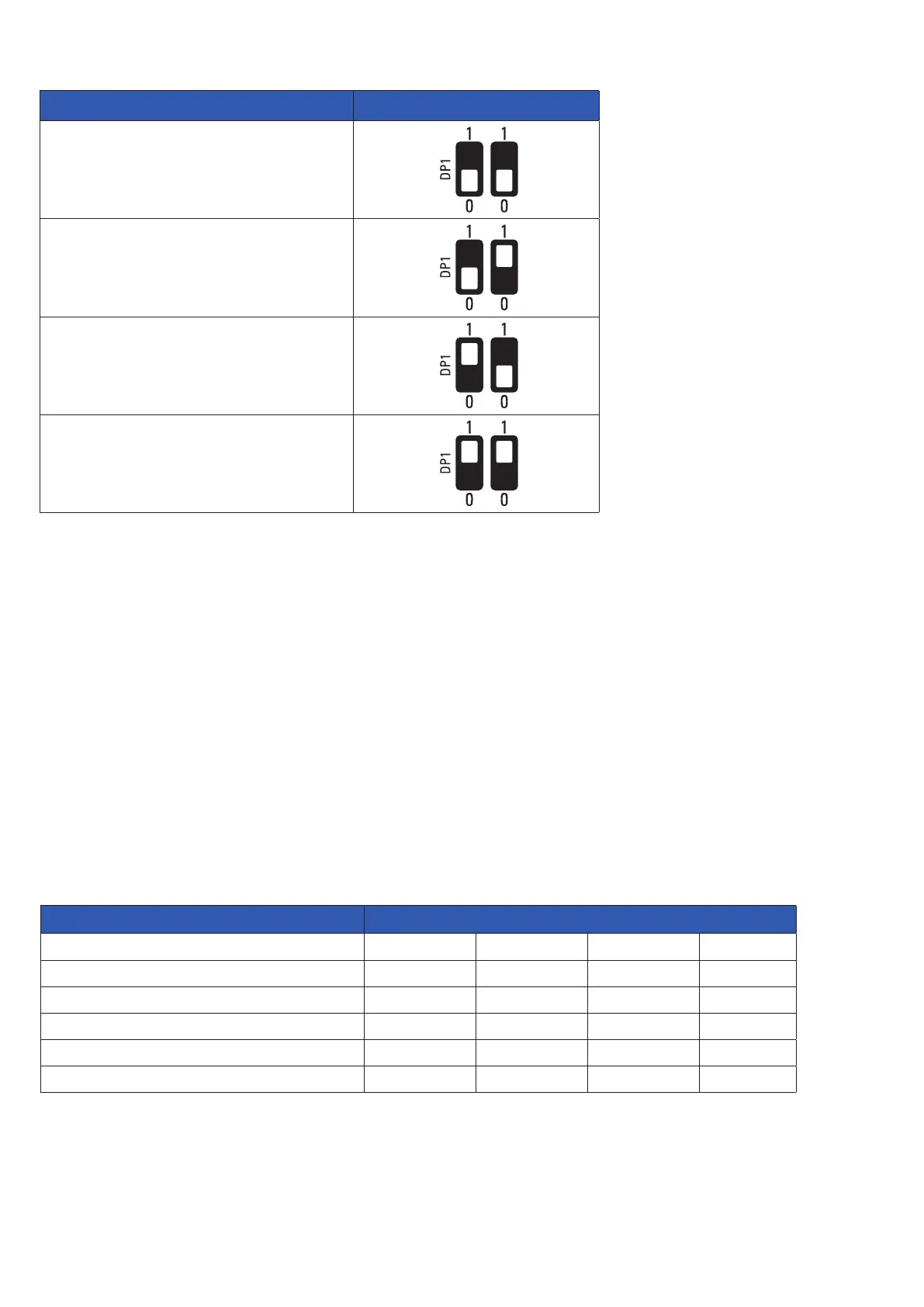

Table 10. Configuration to limit maximum capacity of the EV charger
Green Motion Building EV charger version: 22 kW Switch position
16 A
20 A
26 A
32 A (Default configuration)
In the event of damage caused by improper current adjustment, the product warranty is void and no returns
will be accepted. Eaton declines any responsibility for improper current adjustment and cannot be liable for
any inappropriate operation.
6.5.1 Grid connection
Connect the EV charger to the electrical panel with the protections as per Table 11.
6.5 Installation of an external switching device
Table 11. Recommendations for protections for the Green Motion Building EV charger
Green Motion Building EV charger model Green Motion Building 22 kW EV charger
Green Motion Building power range 3.7 kW 7.4 kW 11 kW 22 kW
Charging current limitation 16 A 32 A 16 A 32 A
Input voltage 230 V 230 V 400 V 400 V
Power supply terminal block max section
(4)
10 mm
2
10 mm
2
10 mm
2
10 mm
2
RCD protection at panel according to IEC 61851-1:2017
(5)
30 mA type A 30 mA type A 30 mA type A 30 mA type A
Circuit breaker at panel 20 A 40 A 20 A 40 A
(4)
Rigid wires are recommended for the power supply. These cross sections must be re-assessed by professional and qualified personnel depending on the
length of the wires.
(5)
Always refer to your local installation regulations.
34
GREEN MOTION BUILDING INSTALLATION MANUAL MN191028EN April 2024 www.eaton.com
