Warning: take care not to reverse the polarity + (red) and - (black) when connecting the batteries as this

willdestroy the device.

Testing new batteries :

To test new batteries:

Charge the batteries for 48 hours.

Press any button to activate the menu options.

Select Control then Start battery test. The UPS starts a battery test if the batteries are fully charged, the UPS is in

Normal mode with no active alarms, and the bypass voltage is acceptable. During the battery test, the UPS transfers

to Battery mode and discharges the batteries for 10 seconds. The front panel displays "Battery test in progress" and

the percentage of the test completed.

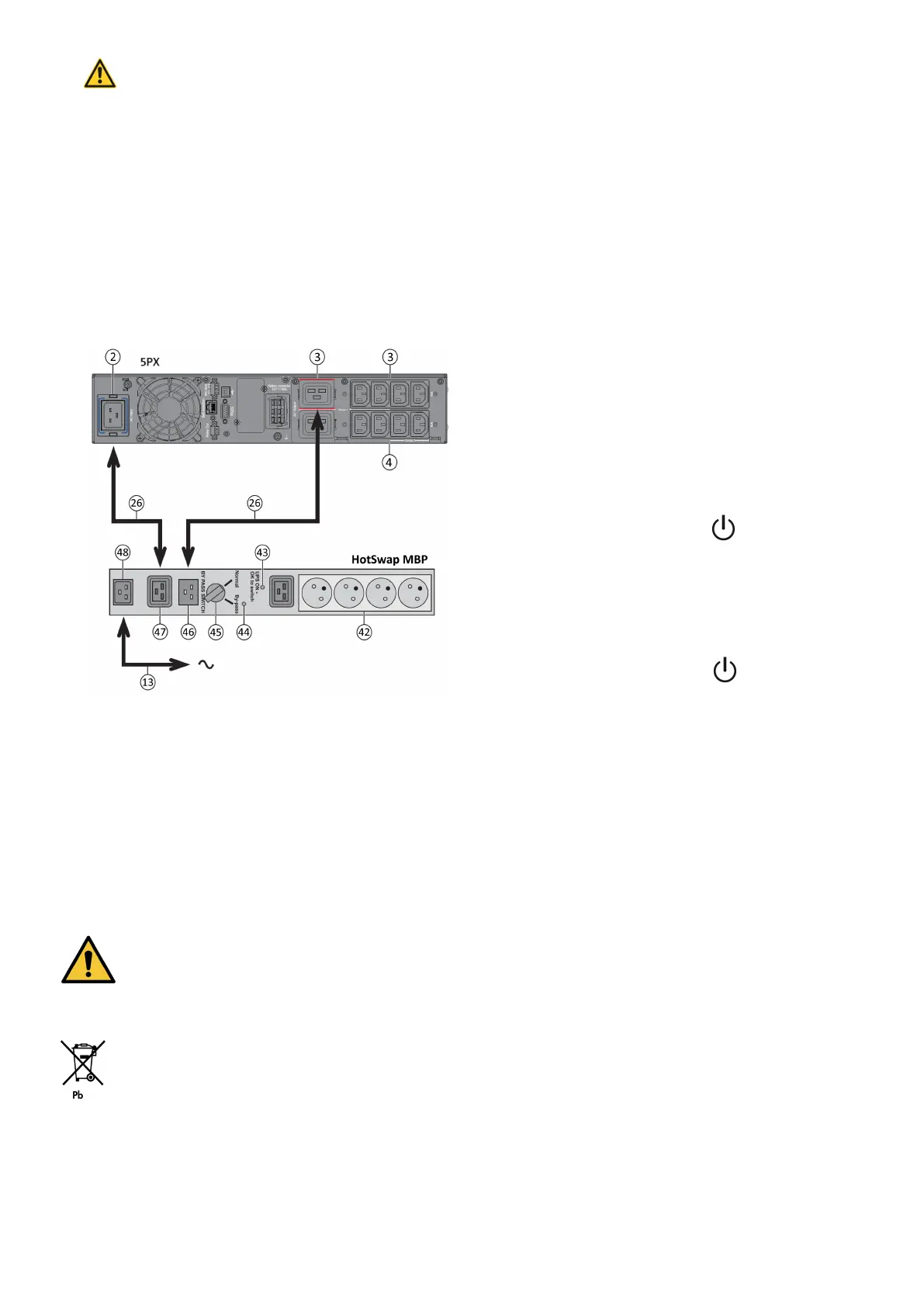

8.5 Replacing the UPS equipped with a HotSwap MBP

The HotSwap MBP module makes itpossible to service

or even replacethe UPS without affecting the

connectedloads (HotSwap function).

Maintenance

Set switch (45) to Bypass position.The red LED on the

HotSwap MBPmodule goes ON, indicating that

theload is supplied directly with AC inputsource

power.

Stop the UPS by pressing the button on the UPS

control panel. LED (43) "UPS ON - OK to switch" goes

OFF, the UPS can now be disconnected and replaced.

Return to normal operation

Check that the UPS is correctly connected to the

HotSwap MBP module.

Start the UPS by pressing the button on the UPS

control panel.LED (43) "UPS ON - OK to switch"

onthe HotSwap MBP module goes ON(otherwise,

there is a connection errorbetween the HotSwap

MBP moduleand the UPS).

Set switch (45) to Normal position.The red LED on

the HotSwap MBPmodule goes OFF.

8.6 Recycling the used equipment

Contact your local recycling or hazardous waste center for information on proper disposal of the usedequipment.

eaton.com/recycling

Do not dispose of the battery or batteries in a fire. Batteries may explode. Proper disposal of batteries is required.

Refer to your local codes for disposal requirements.

Do not open or mutilate the battery or batteries. Released electrolyte is harmful to the skin and eyes. It may be

toxic.

Do not discard the UPS or the UPS batteries in the trash. This product contains sealed, lead acid batteries andmust

be disposed of properly. For more information, contact your local recycling/reuse or hazardous wastecenter.
