6.6 UPS remote control functions

Connectivity cards

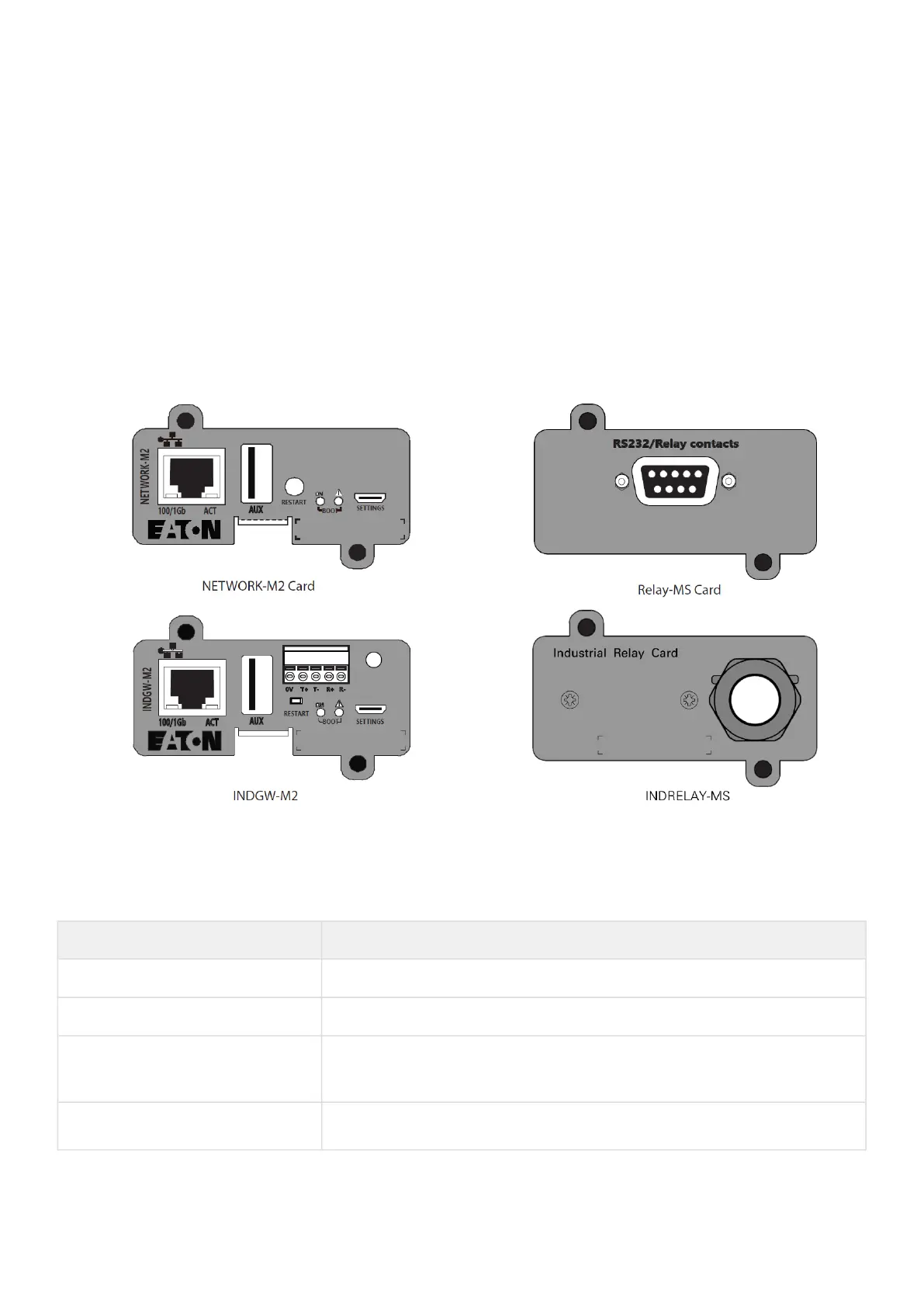

Connectivity cards allow the UPS to communicate in a variety of networking environments and with differenttypes of

devices. The5PXmodels have one available communication bay for the following connectivity cards:

Gigabit Network card(Network-M2) : provides a Gigabit Ethernet connection and enables secure UPS monitoring

over HTTPS web browser interface, SNMP v1/v3 protocol and email alarms. In addition, up to 3 Environmental

Monitoring Probes can be attached to obtain humidity, temperature, smoke alarm, and security information.

Industrial Gateway card(INDGW-M2) :Provides Modbus RTU and Modbus TCP communication support in addition

to the same secure UPS monitoring, management and sensor capability as the Gigabit Network card.

Relay-MS card: provides isolated dry contact (Form-C) relay outputs for UPS status: Utility failure, Battery low, UPS

alarm/OK, or on Bypass.

INDRELAY-MS : The Industrial relay Card-MS (INDRELAY-MS) provides a simple way to remotely input UPS information

to an alarm system, PLC or a computer system via dry contacts. It offers five isolated dry contact outputs and one

isolated dry contact input.

Programmable signal inputs

The 5PX incorporates several programmable signal inputs: oneRemote Power Off (RPO) input terminal, one RemoteOn/

Off (ROO) input terminal, one RS-232 input (pin-4).

Signalinputs can be configured (see Settings > Comm settings > Signal Input) to have one of the following functions:

Function Description

No No function. (Please choose a function if you want to use input signal.)

RPO Remote Power off (RPO) is used to shutdown the UPS remotely.

ROO

Remote On/Off allows remote action of a button or other interface to switch On/

Off the UPS. (Cold start is prohibited while using the ROO function.)

Building alarm

Active input generates an alarm “building alarm”.
