614-40094-00

24

•

•

•

1.

2.

3.

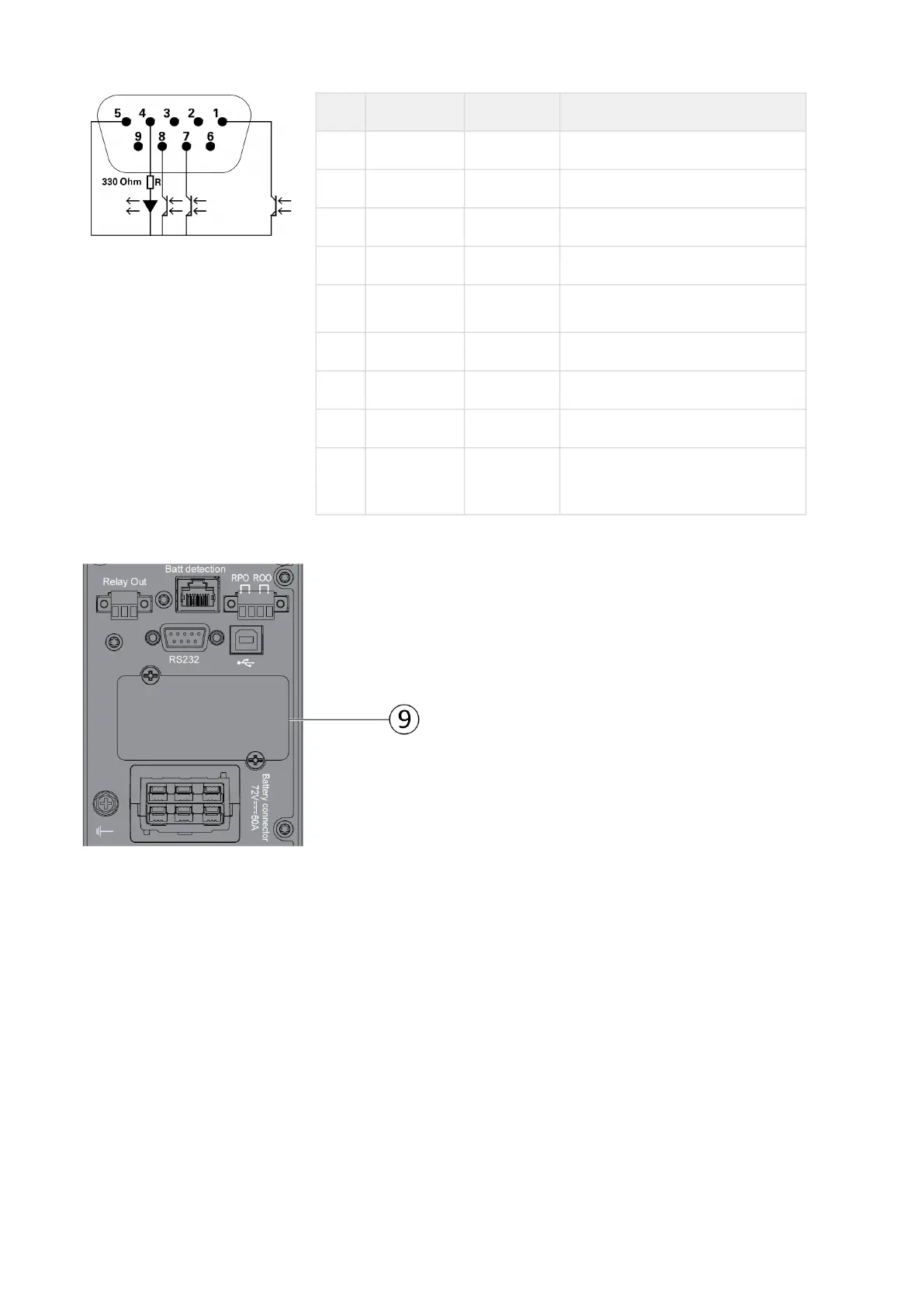

Characteristics of the contact RS232 communication port

Contact characteristics

(optocoupler)

Voltage: 48 V DC max

Current: 25 mA max

Power: 1.2 W

Pin Signal Direction Function

1 Bat low Output Low Battery Output

2 TxD Output Transmit to external device

3 RxD Input Receive from external device

4 I/P SIG Input -

5 GNDS -

Signal Common tied to chassis

6 PNP Input Plug and Play

7 UPS OK Output UPS OK

8 BAT mode Output UPS on battery mode

9 +5V Output

Power supply for external

signal or options

Installation of the communication cards

It is not necessary to shutdownthe UPS before

installinga communication card.

Remove the slot cover (9)secured by screws.

Insert the communicationcard in the slot.

Secure the card cover withthe two screws to

connect the comm card to the ground.
