Pull the speaker cable through the Installation Frame and ceiling cut-out. The length of free cable should be
sucient to allow the Speaker Unit to be held in one hand while connecting the cable to the Speaker Unit
terminals with the other hand.

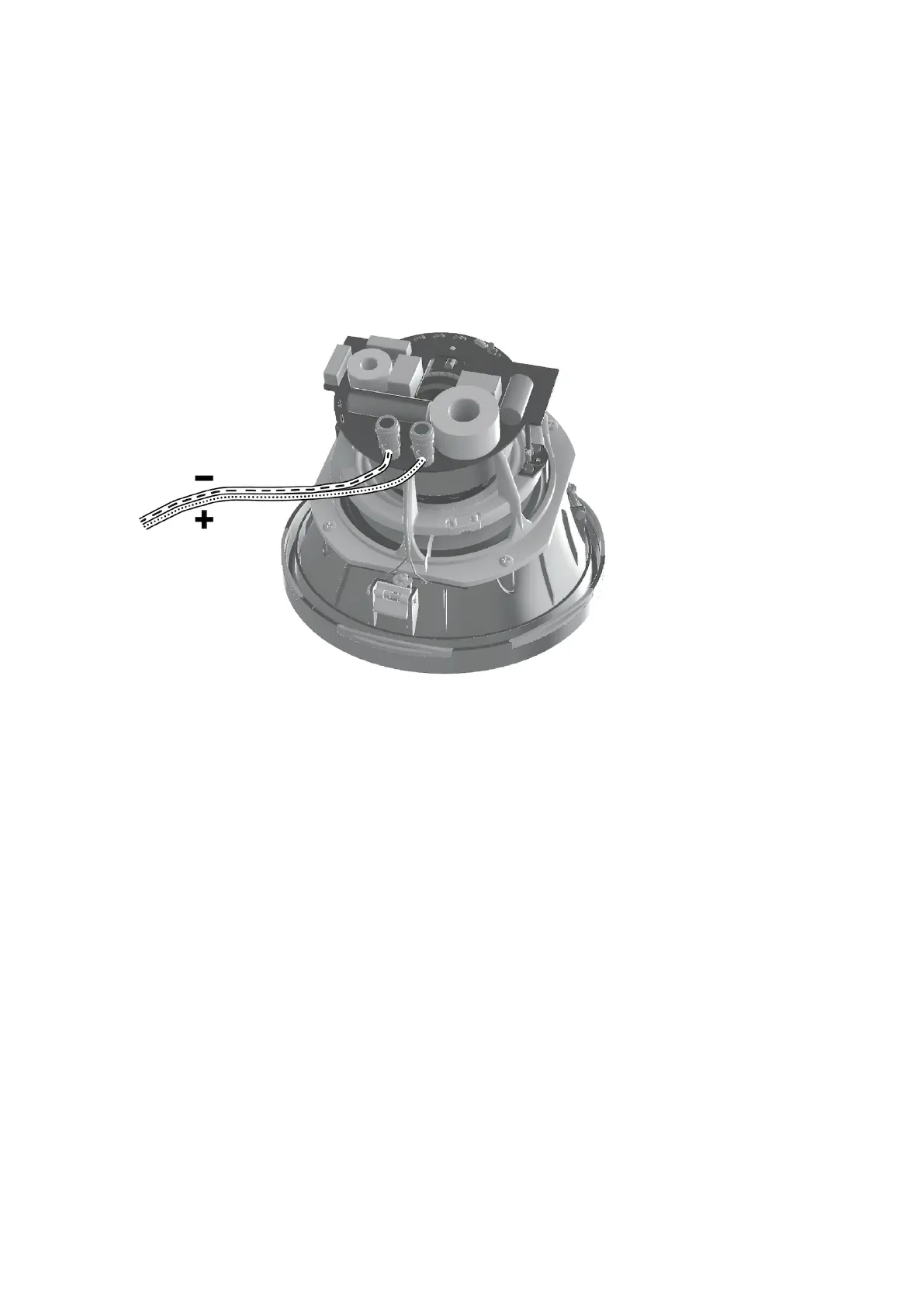

The speaker cable can now be connected to the Speaker Unit. Strip 15 mm insulation from the cable (if
necessary), twist the wire strands and insert the stripped ends into the appropriate speaker spring terminals.
If the ceiling speaker is a S4-C65 or S4-C80 model simply ensure that the positive conductor is connected to the
red speaker terminal and the negative conductor is connected to the black speaker terminal.
S4-C65/C80
If the speaker is a S4-DVC65 model it can be connected in one of two modes: Stereo and Mono.
Stereo mode
Stereo mode is appropriate if the S4-DVC65 is to be connected to stereo left and right amplifier channels.
Connect the positive and negative conductors from each amplifier channel to one set of red and black speaker
terminals. Ensure that the positive conductors are connected to red terminals and the negative conductors are
connected to black terminals.
In-ceiling Speaker Installation 19
