Setup
180 Operating Instructions D888 e-con - 00.0 - 12/2023

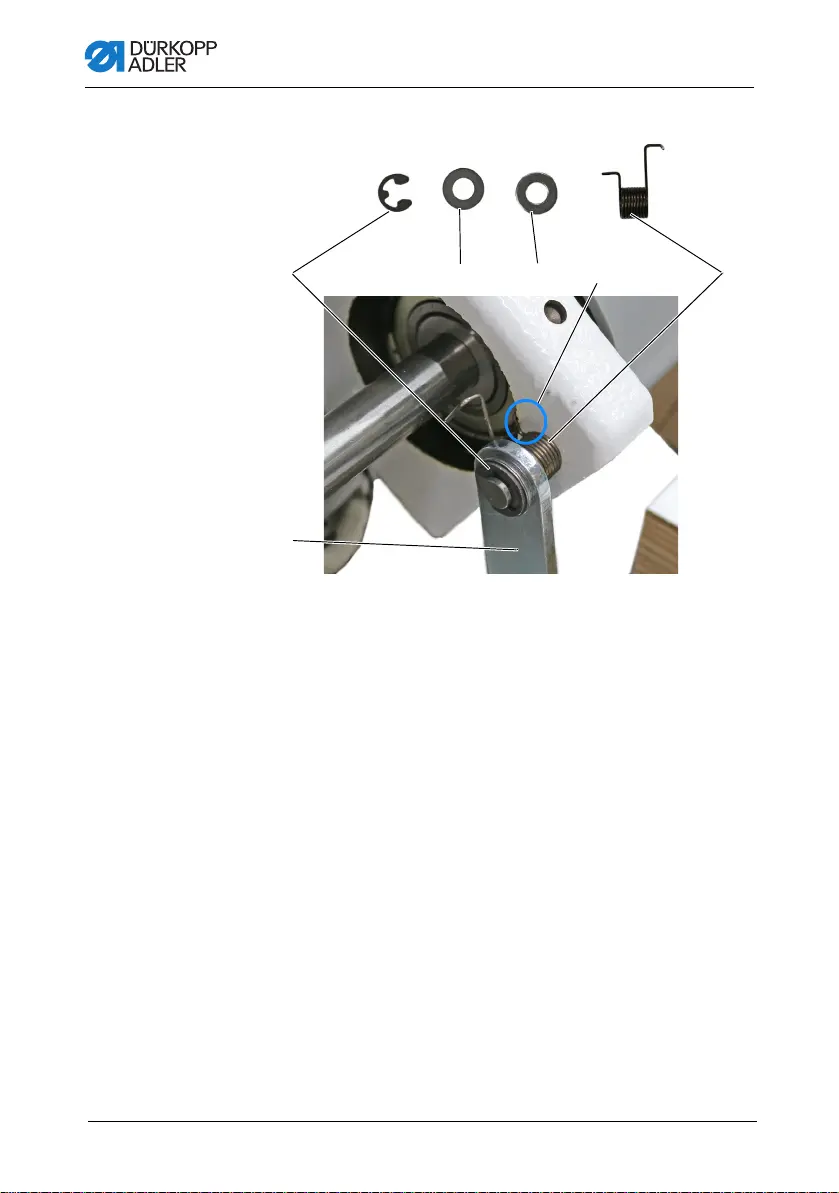

Fig. 93: Inserting the machine head (2)
5. Assemble the locking mechanism (9) to the tabletop.
Check prior to assembly if the locking mechanism can extend
and retract without issue ( p. 183).
6. Fit the spring (4).
Pay attention to the position of the hook (5).
7. Assemble the locking mechanism (9) to the machine using
adjusting washers (6) and (7) and the locking ring (8).
8. Tighten the spring (4) and clamp it behind the locking
mechanism (9).
Make sure nobody can be injured if the torsion spring inad-
vertently recoils.
(4) - Spring
(5) - Hook
(6) - Adjusting washer
(7) - Adjusting washer
(8) - Locking ring
(9) - Locking mechanism
⑨
④⑤⑦⑥⑧
