Setup
174 Operating Instructions D888 e-con - 00.0 - 12/2023
7.5 Tabletop
Ensure that the tabletop has sufficient load-bearing capacity and
strength. If you want to make your own tabletop, use as a template
the drawing that is provided in the Appendix ( p. 241) and
contains dimensions.
7.5.1 Completing the tabletop
The tabletop is optional. For drawings that allow you to independent-
ly assemble a tabletop, refer to the appendix ( p. 241).

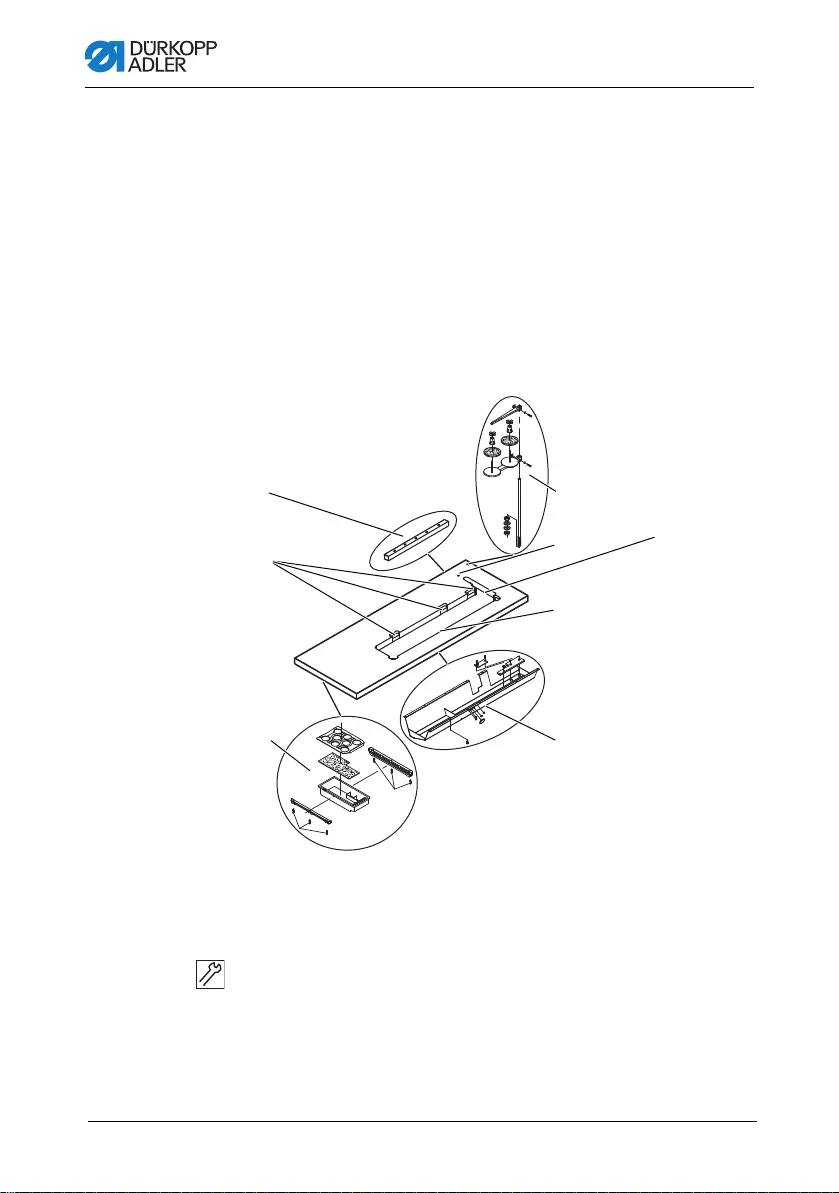

Fig. 88: Completing the tabletop
To complete the tabletop:
1. Screw the drawer (3) with the left-hand bracket to the under-
side of the tabletop.
(1) - Cable duct
(2) - Slot
(3) - Drawer
(4) - Oil pan
(5) - Rubber strip
(6) - Hole
(7) - Reel stand
(8) - Tilt sensor magnet
⑥
⑦
⑤
④
①
③
②
⑧
