Setup
Operating Instructions D888 e-con - 00.0 - 12/2023 173
7.4 Assembling the pedal and setpoint device

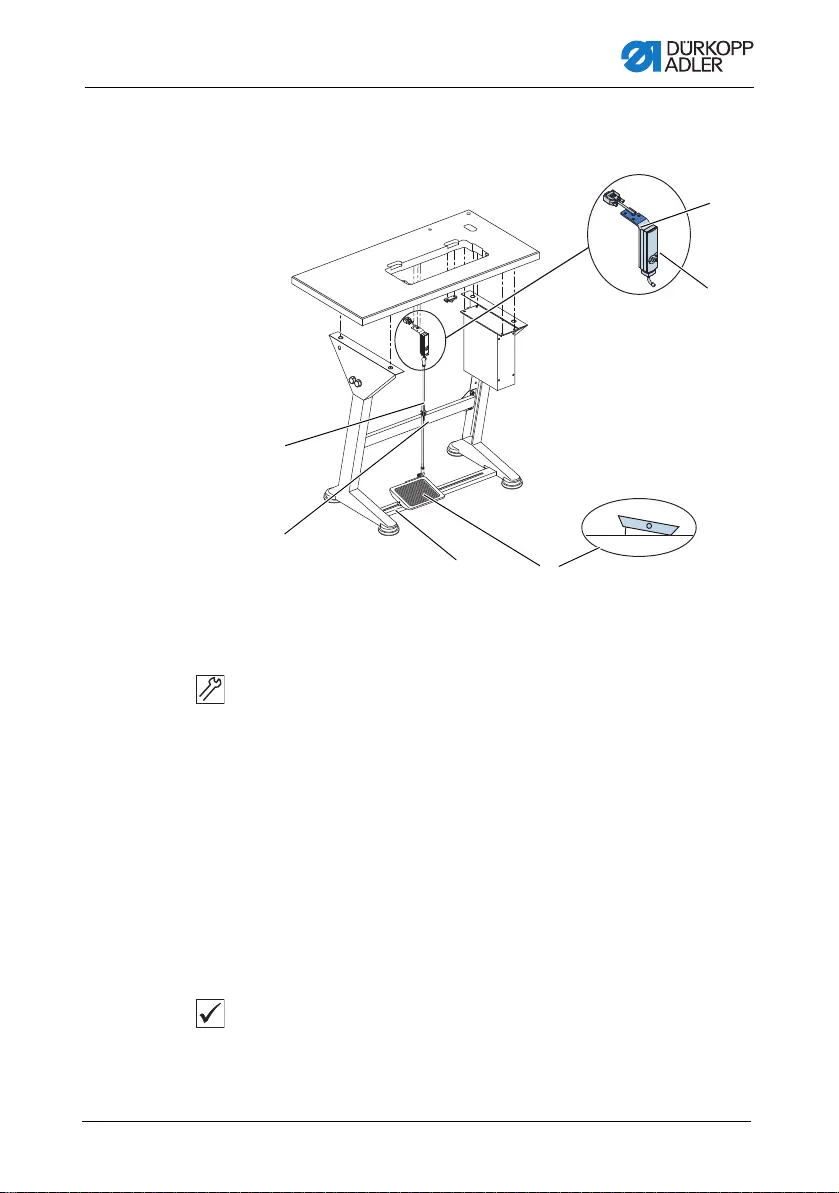

Fig. 87: Assembling the pedal and setpoint device
To assemble pedal and setpoint device:
1. Fit the pedal (4) on the cross strut (3) and align it in such a way
that the middle of the pedal is under the needle. The cross
strut has slotted holes to allow for the alignment of the pedal.
2. Tighten the pedal (4) on the cross strut (3).
3. Screw the bracket (6) under the tabletop so that the pedal
rod (1) runs to the pedal (4) at right-angles to the setpoint
device (5).
4. Screw the setpoint device (5) onto the bracket (6).
5. Attach the pedal rod (1) with the ball sockets to the setpoint
device (5) and to the pedal (4).
6. Pull the pedal rod (1) to the correct length:
Proper setting
10° inclination with pedal (4) released
7. Tighten the screw (2).
(1) - Pedal rod
(2) - Screw
(3) - Cross strut
(4) - Pedal
(5) - Setpoint device
(6) - Stop angle
10°
③ ④
①
②
⑥
⑤
