Setup
Operating Instructions D867 e-con - 00.0 - 06/2023 207
7.17.1 Assembling the compressed air maintenance
unit

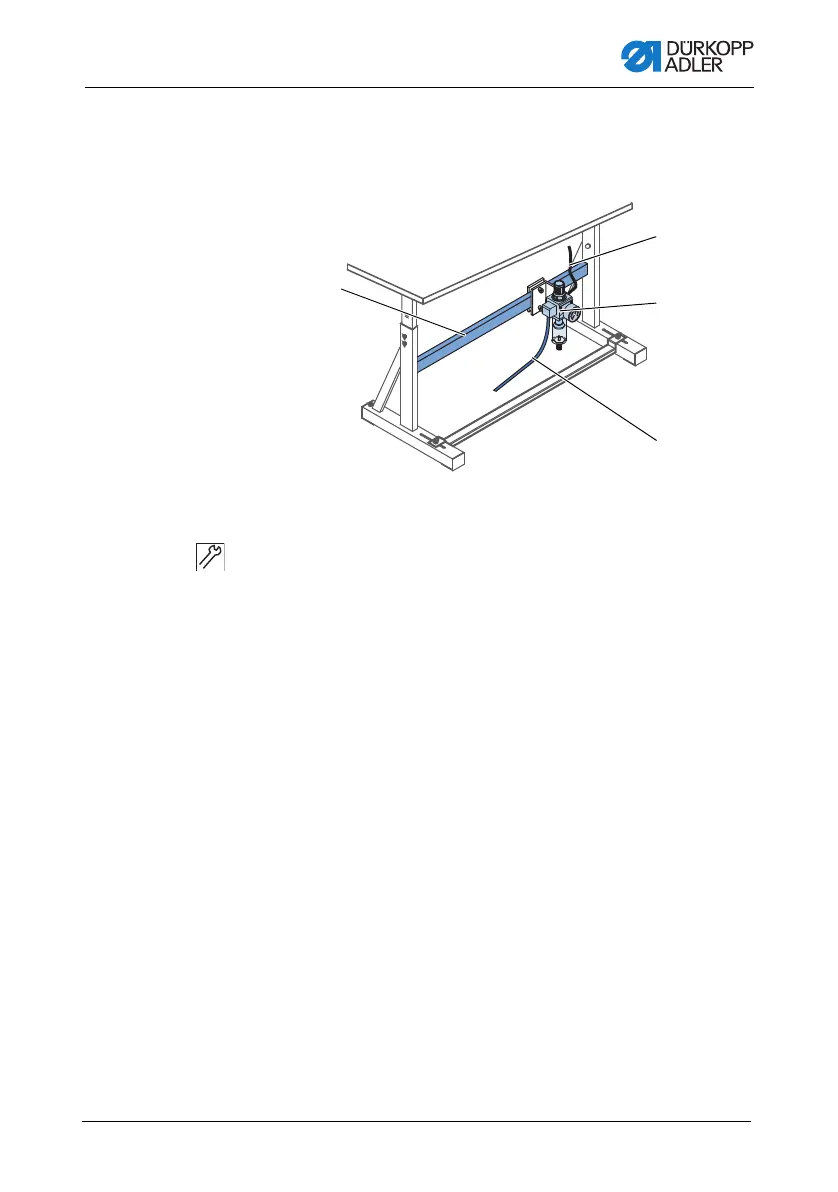

Fig. 114: Assembling the compressed air maintenance unit
To assemble the compressed air maintenance unit:
1. Assemble the maintenance unit (3) to the upper cross bar (1)
of the stand using the bracket, screws and clip.
2. Connect the machine hose (4) coming out of the machine
head to the maintenance unit (3) at the top right.
3. Connect the system connection hose (2) to the pneumatic
system.
(1) - Cross bar
(2) - System connection hose
(3) - Maintenance unit
(4) - Machine hose
0
2
8
4
6
10
①
②
④
③
