180 Operating Instructions D867 e-con - 00.0 - 06/2023
7.5 Tabletop
Ensure that the tabletop has sufficient load-bearing capacity and
strength. If you want to make your own tabletop, use the dimen-
sions given in the diagram in the Appendix ( p. 251) as a
template.
7.5.1 Completing the tabletop
The tabletop is optional. For drawings that allow you to independent-
ly assemble a tabletop, refer to the Appendix ( p. 251).

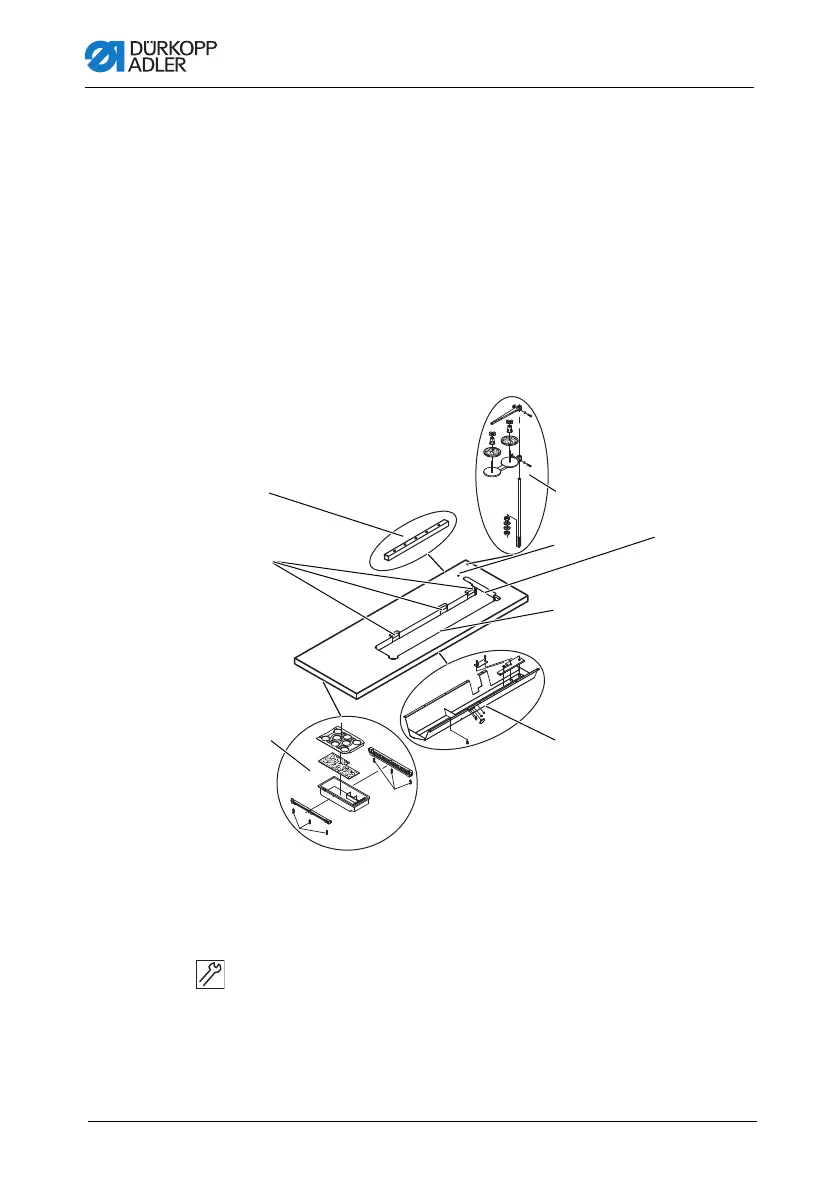

Fig. 85: Completing the tabletop (1)
To complete the tabletop:
1. Screw the drawer (3) with the left-hand bracket to the under-
side of the tabletop.
(1) - Cable duct
(2) - Slot
(3) - Drawer
(4) - Oil pan
(5) - Rubber strip
(6) - Hole
(7) - Reel stand
(8) - Tilt sensor magnet
⑥
⑦
⑤
④
①
③
②
⑧
