Setup
178 Operating Instructions D867 e-con - 00.0 - 06/2023
7.3 Assembling the stand

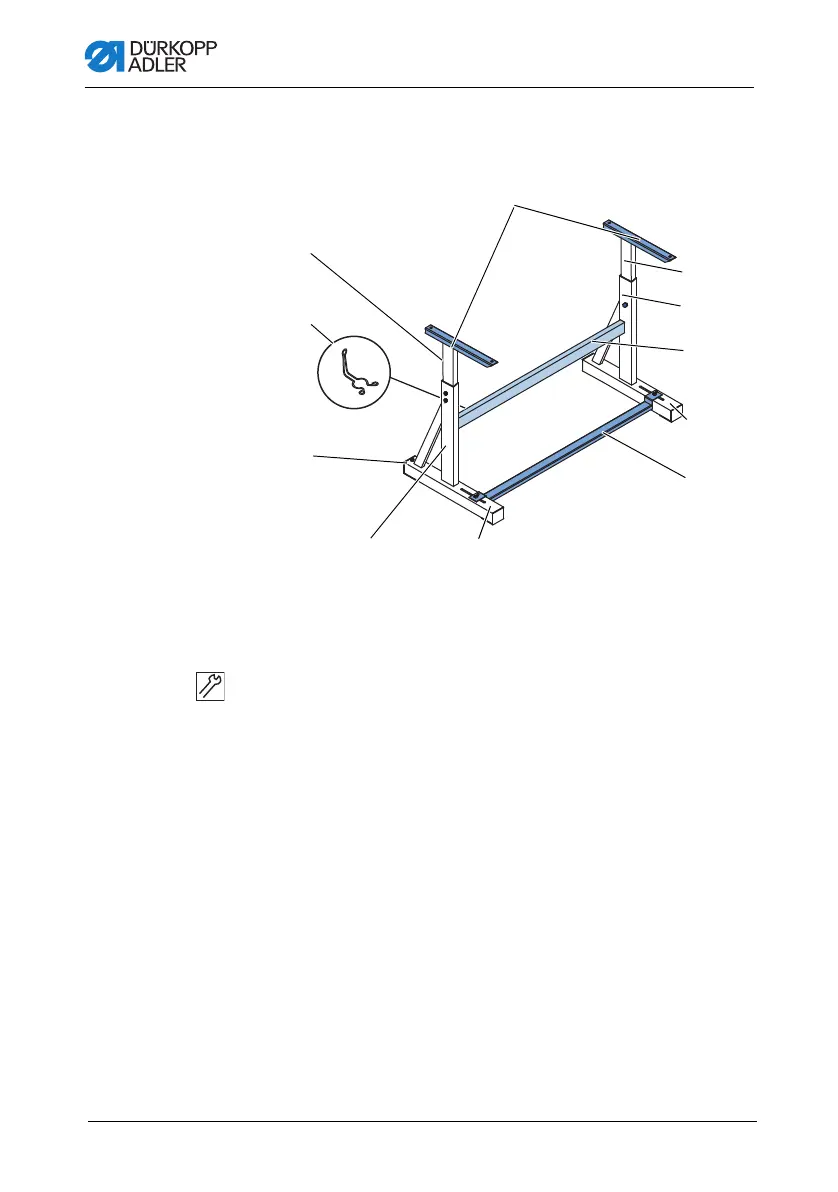

Fig. 83: Assembling the stand
To assemble the stand:
1. Screw the cross bar(s)* (7) onto the stand bars (4).
2. Screw the oil can holder (2) at the rear to the upper cross
bar (7).
3. Screw the cross strut (6) to the foot struts (5).
4. Insert the inner bars (1) in such a way that the longer end
of the head section (8) is above the longer end of the foot
struts (5).
5. Tighten the inner bars (1) down so that both head sections (8)
are at the same height.
6. Important: Turn the adjusting wheel (3) so that the stand has
even contact with the ground.
* Stand components for long arm machines have 2 cross bars,
and the other stand components have 1 cross bar.
(1) - Inner bar
(2) - Holder for oil can
(3) - Adjusting wheel
(4) - Stand bar
(5) - Foot strut
(6) - Cross strut
(7) - Cross bar
(8) - Head section - inner bar
⑥
④
⑦
⑤
①
⑧
①
②
③
⑤④
