Operation

26 Instructions for use 550-D869-100 e-con - 00.0 - 01/2025

Threading the right needle thread

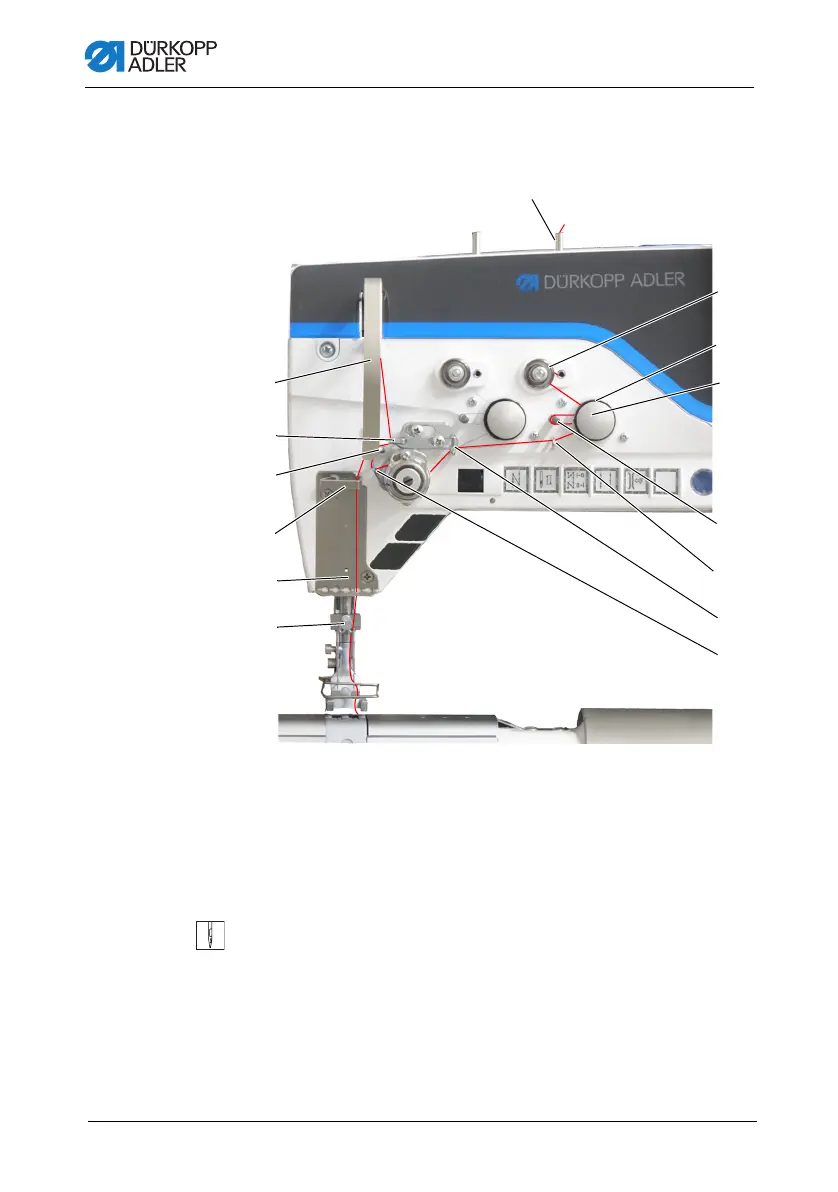

Fig. 5: Threading the needle thread at the top right (1)

To thread the right needle thread:

1. Insert the thread from the top and guide it through the tube (1).

2. Feed the thread counterclockwise from the tube (1) around

the pretension (14).

3. Feed the thread clockwise through the rear tension (13).

(1) - Tube

(2) - Thread lever

(3) - Needle thread regulator

(4) - Pin

(5) - Thread guide

(6) - Thread guide

(7) - Thread guide

(8) - Thread tensioning spring

(9) - Hook

(10) - Thread guide

(11)- Pin

(12)- front tension

(13) - rear tension

(14) - Pretension
