Handleiding

®

Unidoor-X models

with Glass-to-Glass hinges

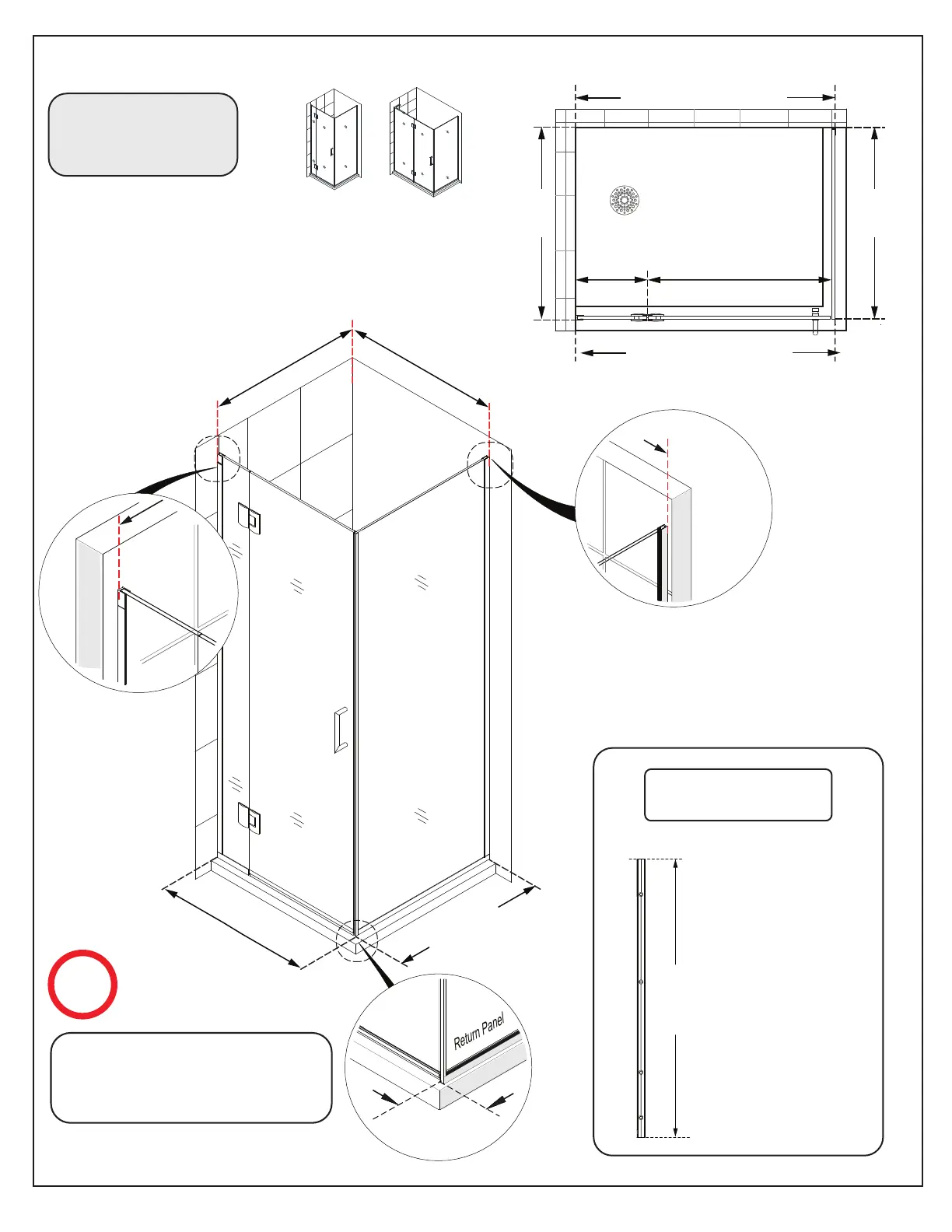

Shower Enclosure Plan

UNIDOOR-X

6UNIDOOR PLUS Style L Shower Enclosure Panel Manual Ver 2 012020

Return Panel

Door

A

G

STYLE L1

G =(30”)

or (34”)

Outside surface

of the u-channel

(30-1/16”)

(34-1/16”)

Door

Hinge

Panel

Return Panel

A= Model size (+) 1/16”

A= Model Width (+) 1/16”

Finished wall surface

Outside surface

of the u-channel

Outside surface

of the return

panel glass

Outside surface

of the return

panel u-channel

G =(30”)

(34”)

(30-1/16”)

(34-1/16”)

A= Model Width (+) 1/16”

door

hinge panel

return panel

Hinge

Panel

Return panel u-channel

= Glass Width + 3/16”

= 30” or 34”

Return

Panel

A

Style L1

24

Style L1

6

Outside surface of the

return panel u-channel

Finished wall surface

Outside surface

of the return

panel glass

Bottom U-channel

cut sizes

right-hand return panel installation shown

Example: Unidoor-X Enclosure Style L1

6

NOTE

Measure at the bottom

and draw a plumb line up

from the threshold
