UNIDOOR-X (STYLE M) manual Ver 2 Rev 1 02/2019

8

7

Max 3/16”

(4mm)

Max 3/16”

(4mm)

5

6

2

3

1

Ø5/16"

(8mm)

4

outside

Fig 16

Fig 17

Leave space for the decorative cover

when marking the position of the L-Bar

Left-hand bracket installation shown as an example

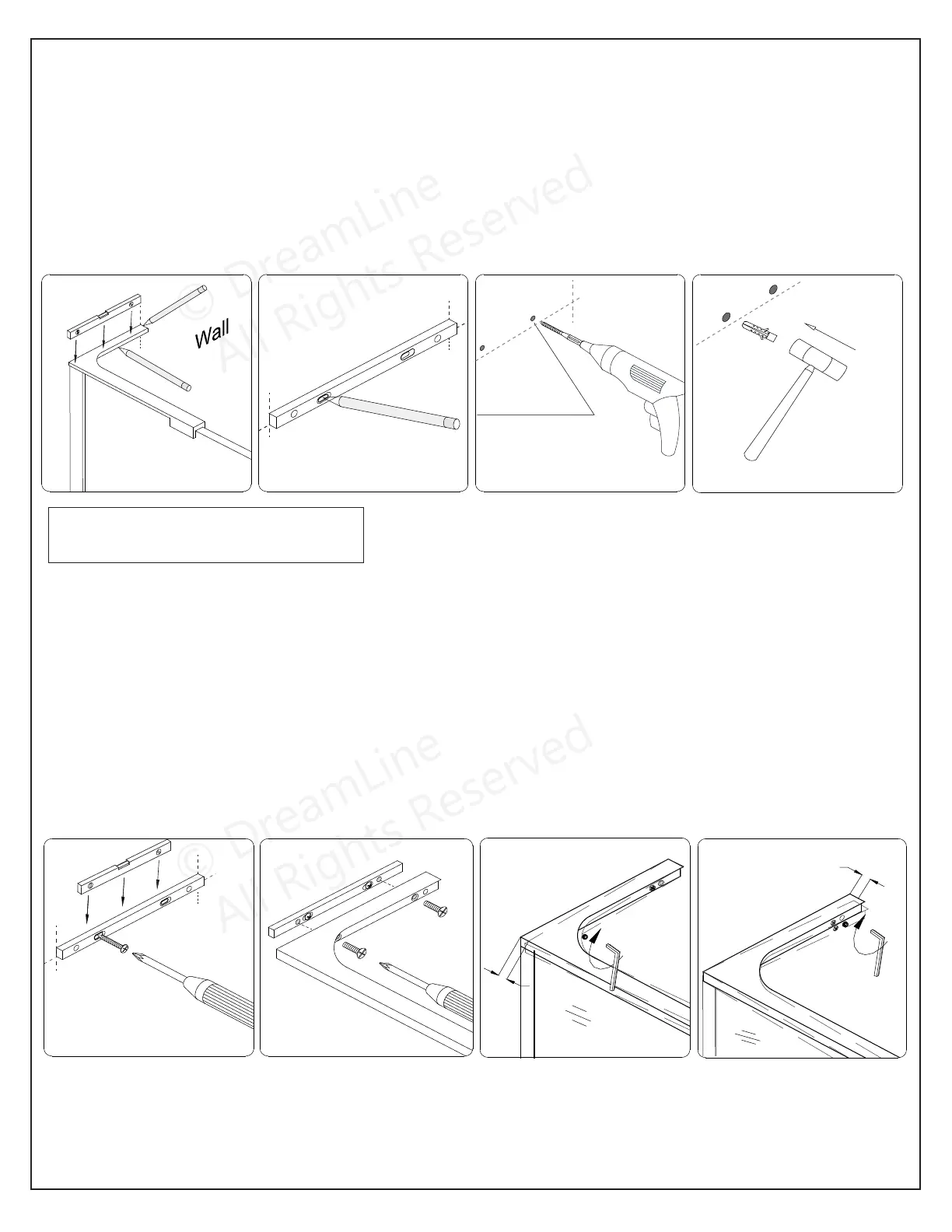

16. Position the L-Bar™ Assembly (#35) onto the Hinge Panel Glass (#32) as shown and mark its

position on the wall.

Remove the Wall Plate (#35.6) from the L-Bar™. Hold the Wall Plate (#35.6) to the marks on the wall.

Check for level and mark the holes for drilling through the wider, untapped holes. (Fig 16.2)

Drill two Ø5/16”(8mm) holes and insert the Ø5/16” Wall anchors (#35.5). (Fig 16)

17. Attach the Wall Plate (#35.6) to the wall using the ST4.2 x 40 (#35.7) Truss Head Screws.

Re-attach the L-Bar™ (#35.3) to the Wall Plate (#35.6) using the Flat Head Screw M5x14 (#35.8) and

adjust the angle if necessary by using the Wall Plate Adjustment Set Screws (#35.9) (Fig 17.7

and 17.8)

Note that the Flat Head Screws M5x14 (#35.8) must be loosened to allow adjustment with the set

scews and then retightened after adjustment. (Fig 17)
