Fig 24b

Fig 24a

Inside shower

For Style M only: If your model does not include additional

panel glass, proceed to the next step to install the L-Strike

Vinyl w/VHB tape (#08) to the wall.

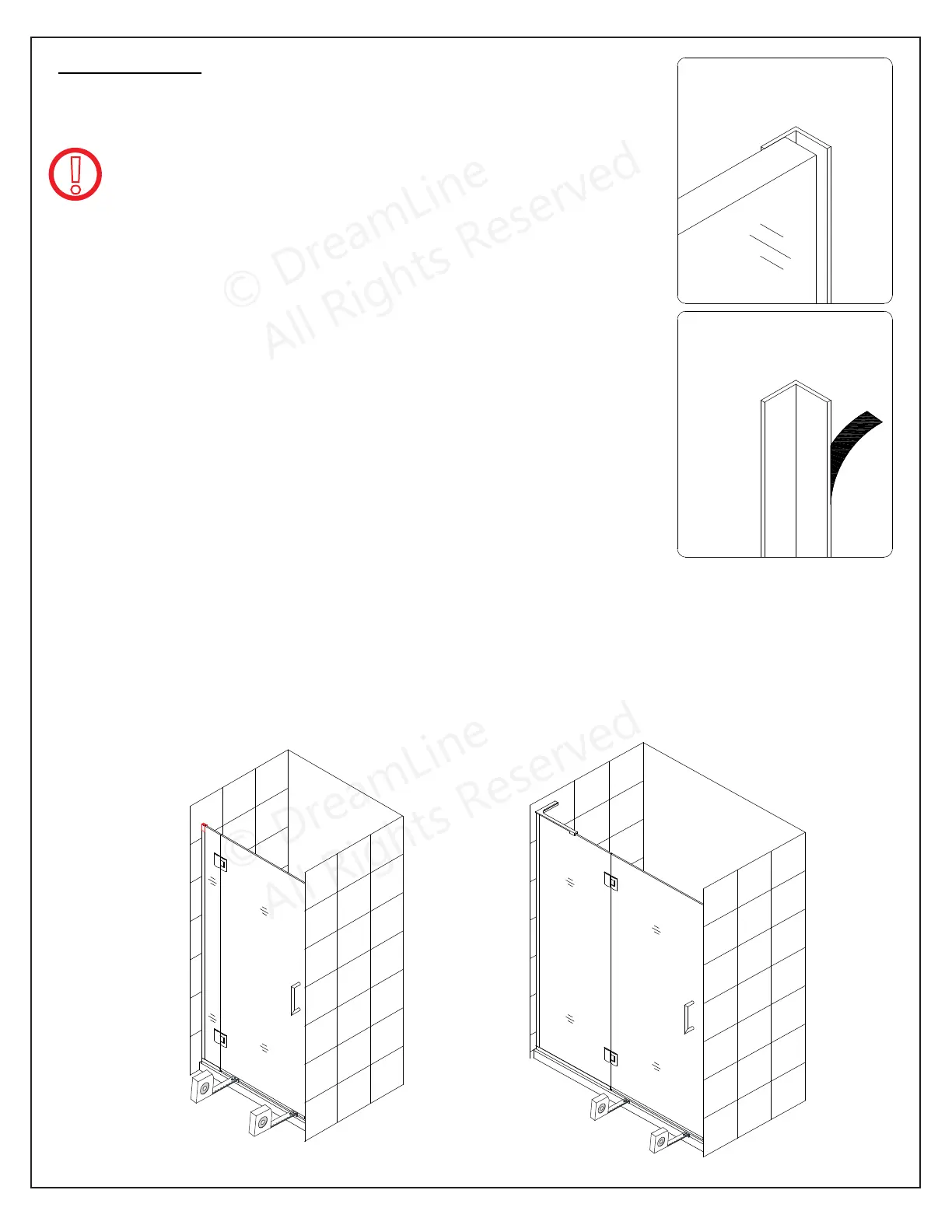

24. With the door closed, place the L-Strike Vinyl w/VHB tape (#08)

on the door edge and mark its location on the wall.

Please note that the corner of the L-Strike Vinyl w/VHB tape (#08)

should face into the shower. (Fig 24a.1 and 24a.2)

With the door open, remove the tape backing from the adhesive strip

and firmly press the L-Strike Vinyl w/VHB tape (#08) to the wall.

Allow time for the adhesive to set before allowing the door to close

against the L-Strike Vinyl w/VHB tape (#08). (Fig 24a)

NOTE:

Hinges set to overclose require the use of the L-Strike Vinyl w/VHB

tape (#08) or other strike vinyl that ships with the panel glass.

The above procedure for installing the L-Strike Vinyl w/VHB tape

(#08) is for the Unidoor Style M shower door only. When installing

another model style, please refer to the separate panel glass

installation manual located in the panel glass packaging for model

specific instructions.

ATTENTION:

Prior to the next step, please be sure the section of the wall where

you need to attach the L-Strike Vinyl w/VHB tape (#08) is clean,

dry, and free from soap, oil or construction debris.

NOTE: Before installing the L-strike vinyl, refer to the

adjustable hinge instructions on Page 27.

!

Setting the hinges to overclose must be done

BEFORE the L-Strike Vinyl w/VHB tape is installed.
