17

UNIDOOR-X (STYLE M) manual Ver 2 Rev 1 02/2019

waterproof

silicone

2

Fig 13

Fig 14

1

inside

waterproof

silicone

5

1

4

6

2

0 5/16”

3

Quick-drying/fast curing silicone is

recommended for the installation

of hinge panel glass into u-channels.

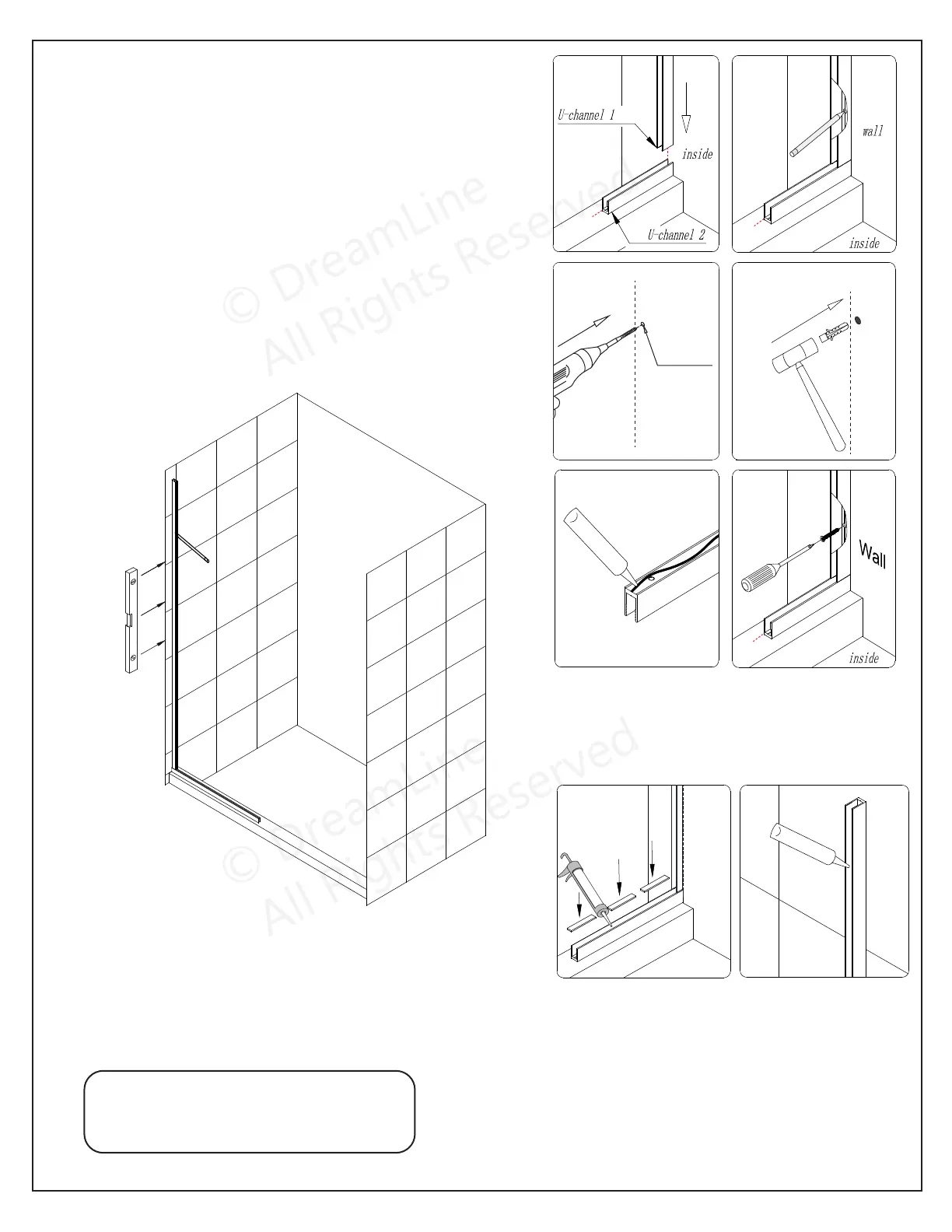

13. Next, position the vertical U-channel 1 (#09) (wall

profile) on top of the installed bottom U-channel.

Use a level to plumb the U-channel 1 (#09) (wall profile)

and mark the positions of the holes for drilling. You need

to use at least four holes for the U-channel 1 (#09) (wall

profile).

• Drill the holes into the wall using a Ø5/16” drill bit.

• Insert the Ø5/16“ Wall Anchors (#13) into the holes.

• Apply silicone to the back of the U-channel 1 (#09)

(wall profile) and attach it to the wall using the

ST4.2 x 40mm Countersunk screws (#23). (Fig 13)

14. Add several 2” pieces of the PVC Glass Spacer

(0.5mm) (#34) into the Bottom U-channel to protect

the bottom edge and corners of the glass.

Apply a good quality mildew-resistant silicone into both

U-channels. (Fig 14)
