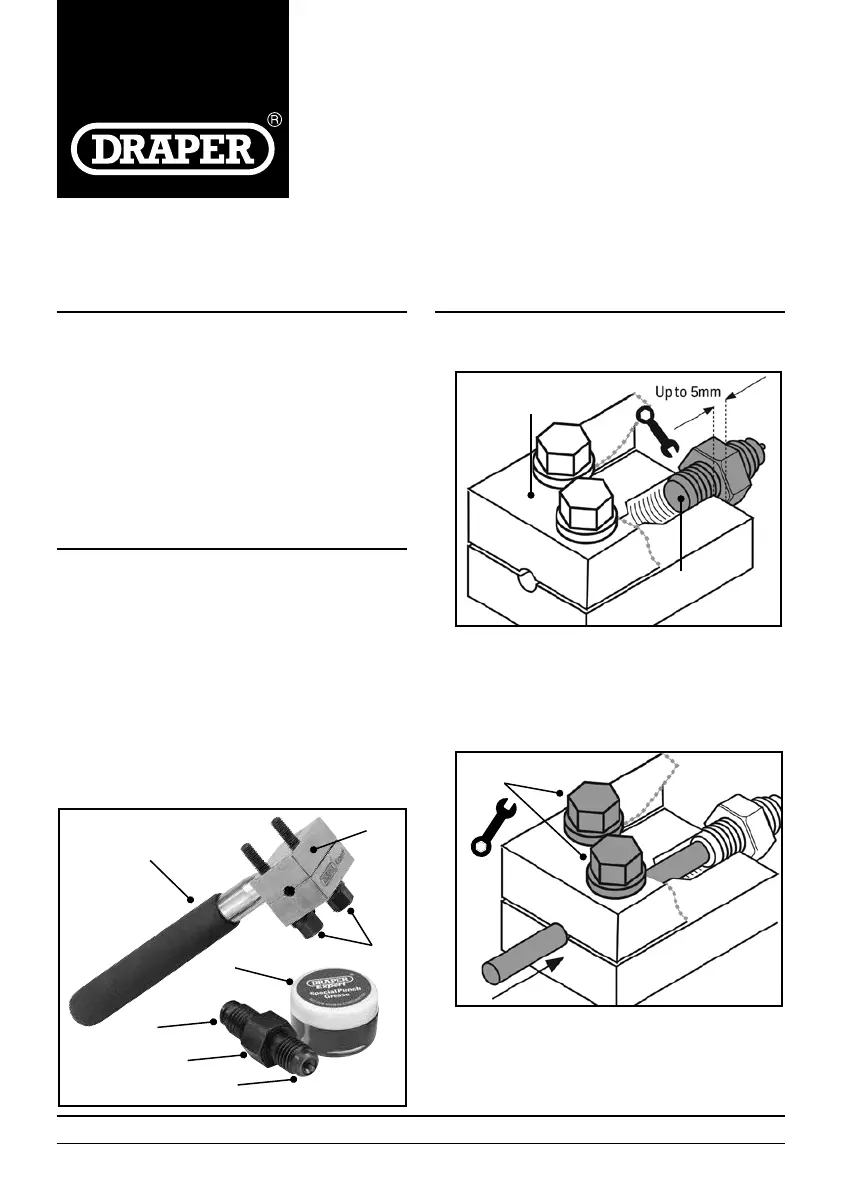

HAND HELD

BRAKE PIPE

FLARING TOOL

4.75mm DIN

23313 – BPF/HAND/DIN INSTRUCTIONS FOR USE

Original Instructions

Version 1 – January 2023

Read this manual in full before using this product and retain it for future use. Always use the latest version of the manual.

Please visit drapertools.com/manuals for the latest version.

Helpline: +44 (0) 23 8049 4344 Sales Desk: +44 (0) 23 8049 4333 General Enquiries: +44 (0) 23 8026 6355 Website: drapertools.com Email: sales@drapertools.com

Draper Tools Limited, Hursley Road, Chandler’s Ford, Eastleigh, Hampshire, SO53 1YF, UK 0123

1. Intended Use

This product is designed to are brake pipes of 4.75mm

according to DIN Convex standards. Any other application

beyond the conditions established for use will be

considered misuse. Draper Tools accepts no responsibility

for improper use of this product.

Important: Ensure that you are familiar with the various

types of ares and their applications before using this

product. ALWAYS consult the vehicle manufacturer’s

instructions before use.

2. What’s in the Box?

Before assembling the product, lay the contents out and

check them against the parts listed below. If any part is

damaged or missing, do not attempt to use the product;

please contact the Draper Helpline.

A. 1 × Flaring tool

A1. Die

A2. Locking screws

B. 1 × Double-ended punch

B1. 4.75mm DIN punch

B2. Stop punch

C. 1 × Punch grease

3. Operating Instructions

1. Partly screw the stop punch (B2) into the aring tool so

that the nut is no more than 5mm from the die (A1).

1 Fig.

(A1)

(B2)

2. Ensure that the tube nut is installed onto the brake pipe,

then insert the brake pipe into the open end of the die

and hand-tighten the locking screws (A2) just enough to

grip the pipe.

2 Fig.

(A2)

Important: DO NOT overtighten the locking screws at

this stage as the stop punch may damage the pipe.

(A)

(C)

(B2)

(B1)

(B)

(A1)

(A2)
