- 7 -
Depending on manufacture and model, some engine components do change. Please check with
Autodata or the manufacturer’s data before use.
9. PROCEDURE AND APPLICATION GUIDE
Preparation:
• Turn the engine to TDC on No1 cylinder
• Holding the crankshaft pulley with a suitable holding tool (Eldon E10800) loosen the
vibration damper fixing bolt by 180° (1/2 a turn).
• Remove the 2 engine front cover fixing bolts as identified in the instructions for component
A. VAG OEM instructions require these bolts to be replaced with new bolts.
WARNING: do not remove the bolt without putting component’s A in place as described
below.
Component A = Vibration damper holding tool:
After loosening the crankshaft vibration damper fixing bolt by 180° fit components A over the
vibration damper as shown and tighten the 2 fixing screws evenly so the holding tool sits
squarely on the pulley. Tighten fixing bolts hand tight. Once component A is fitted the damper
fixing bolt can be removed.
NOTE: the fixing screws for A are designed to screw into the angled front face of the engine.
B
A
A
C
A
D

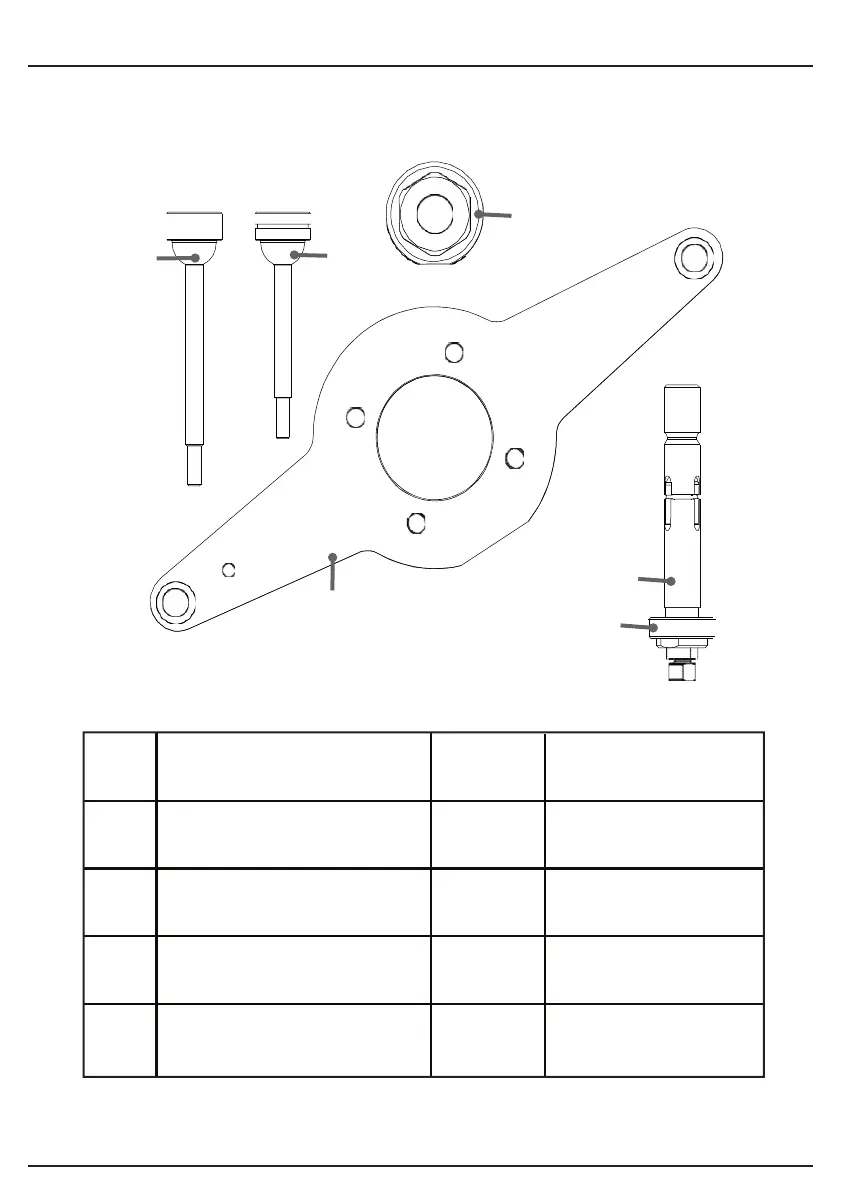

ITEM DESCRIPTION OEM STOCK No.
A
Vibration Damper Holding Tool
T10531/1 35604
B
Crankshaft Sprocket Holding T10531/3 35605
Tool Adapter
C Crankshaft Sprocket T10531/2 35608
Holding Tool
D Crankshaft Sprocket T10531/4 35609
Holding Tool Nut
