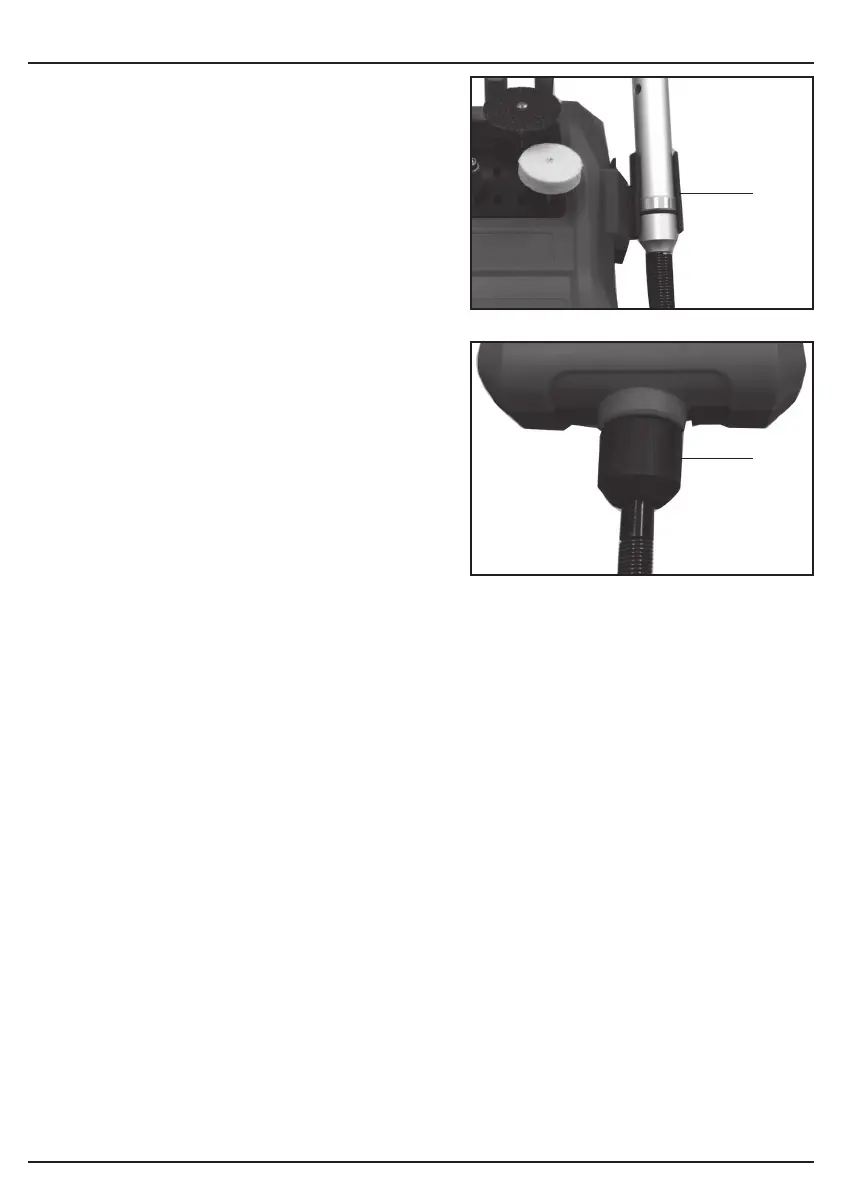

8. PREPARING THE ENGRAVER/GRINDER
– 15 –
8.1 CONNECTING THE PEN HOLDER
AND FLEX SHAFT TO THE ENGRAVER/
GRINDER CONSOLE – FIGS.1 – 2
− Slide the ange on the pen holder (6) into the
opening on the side of the engraver/grinder
console until it is fully seated.
Note: Once fully seated, the tab on the ange will
snap into the housing, preventing the pen holder
from being removed.
− Place the collar of the ex shaft (4) onto the
threaded outlet on the engraver/grinder console.
− Turn the collar clockwise and tighten securely.
(6)
(4)
1 FIG.
2 FIG.
