– 6 –

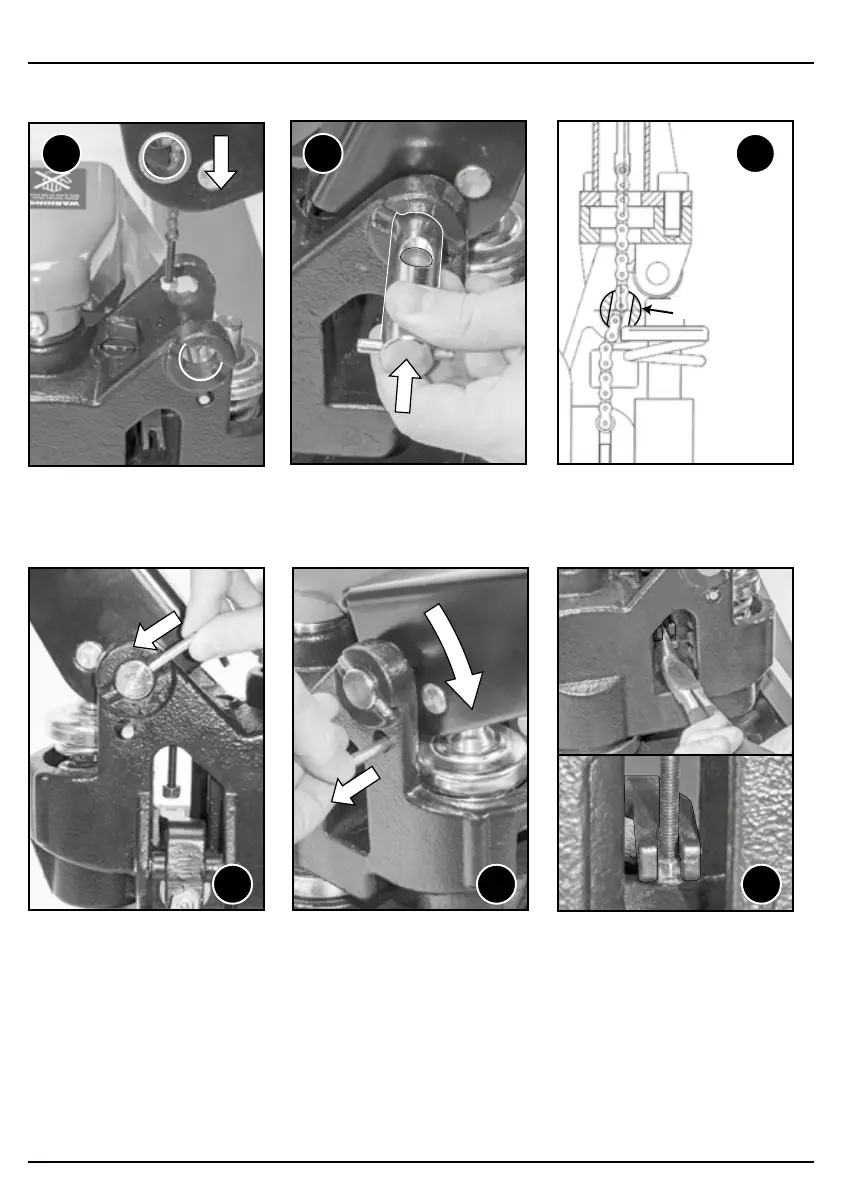

7.4 Reattaching the Handle to the Pistons

Note: Using a curved tool/ pry bar/curved pliers and allow enough clearance for the adjusting bolt to slide

through the slot.

7. Maintenance and Troubleshooting

1 2

6

Offer the handle up to the

pistonʼs pre-drilled holes.

Whilst holding the handle in

place slide the axle pin

through the handle.

Secure the axle pin by

locating the dowel pin (soft

face hammer required).

4

Adjust the control lever to the

lower position. Then feed the

chain and adjusting bolt/nut

through the axle pin.

Push the handle down and

remove the pump securing

pin.

5

Adjust the control lever to the

ʻLiftʼ position. This will extend

the length of the chain and

adjusting bolt/nut. Lift the

lever plate and slide the

adjusting bolt through the slot.

Axle with hole

3
