– 5 –

If required, adjust the lever following the steps below:

a. If the forks elevate while pumping in the Neutral

position, turn the adjusting nut on the adjusting

bolt clockwise until pumping action does not raise

the forks and the Neutral position works properly.

b. If the forks descend while pumping in the Neutral

position, turn the adjusting nut counter-clockwise

until the forks do not lower.

c. If the forks do not descend when the control lever

is in the Lower position, turn the adjusting nut

clockwise until raising the control lever lowers

the forks. Then check the neutral position

works properly.

d. If the forks do not elevate while pumping in the

Lift position, turn the adjusting nut counter-

clockwise until the forks elevate while pumping

in the Lift position. Then check the Lower and

Neutral position.

• DO NOT use this pallet truck unless you are trained

and authorised to do so.

• Ensure the pallets used are suitable for use with this

pallet truck.

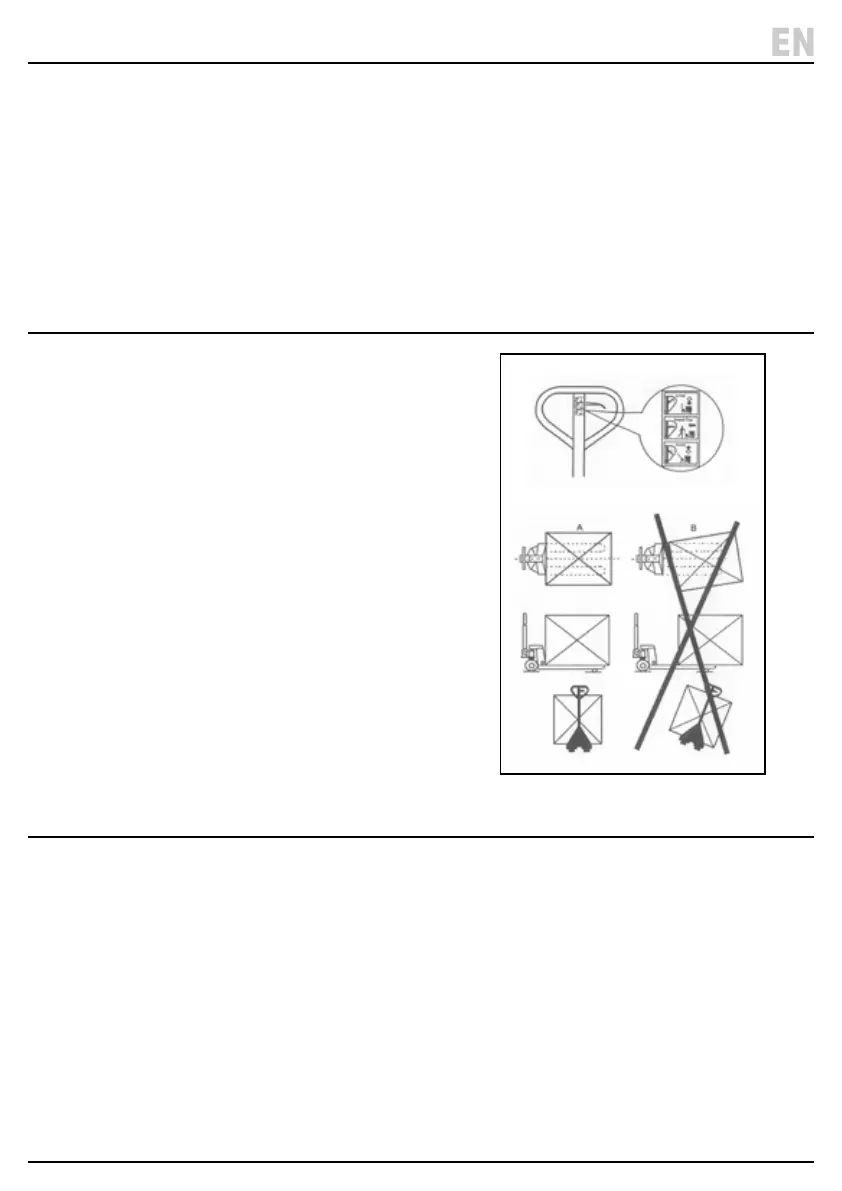

6.1 Lifting and Lowering the Pallet Truck

•  To lift the load - ensure that it is evenly distributed

over both the forks and that the load to be lifted does

not exceed 2500kg. Ensure the lever is in the down

position so when the handle is lowered the load will be

lifted.

• To move the load - ensure the lever is in the neutral

position. Ensure the ooring meets the requirements

of the load and ensure it is free of obstacles.

• To lower the load - gently lift the lever to the lower

position. This will lower the pallet to the oor. Ensure

nothing is under the pallet when lowering, e.g. feet.

• When the truck is not in use - ensure the forks are

lowered and the lever is in the neutral position.

5. Setting Up the Pallet Truck

6. Pallet Truck Operation

EN

Regularly inspect and carry out routine maintenance on

the pallet truck to keep in good working condition.

7.1 Daily Check and Maintenance

• Check the overall condition of the pallet truck daily.

• Keep clean and lubricate all the moving parts at

regular intervals using motor oil or grease. Pay special

attention to the wheels, axles, threads etc.

• The forks should be unloaded and lowered in the

lowest position when the job is complete and when

the truck is not in use.

7.2 Hydraulic Oil Check

• Check the oil level every 4 months. The oil capacity is

approximately 300mls.

• Use the hydraulic oil between -20°C to 40°C.

7.3 Expelling Air from the Pump Unit

• Air may come into contact with the hydraulic oil

during transportation or if the pump is stored in an

upset position. It can stop the forks lifting while

pumping in the ‘RAISE’ position.

• Release the air by selecting the lowest position on the

control handle, then move the handle up and down

several times.

7. Maintenance and Troubleshooting
