– 12 –
EN

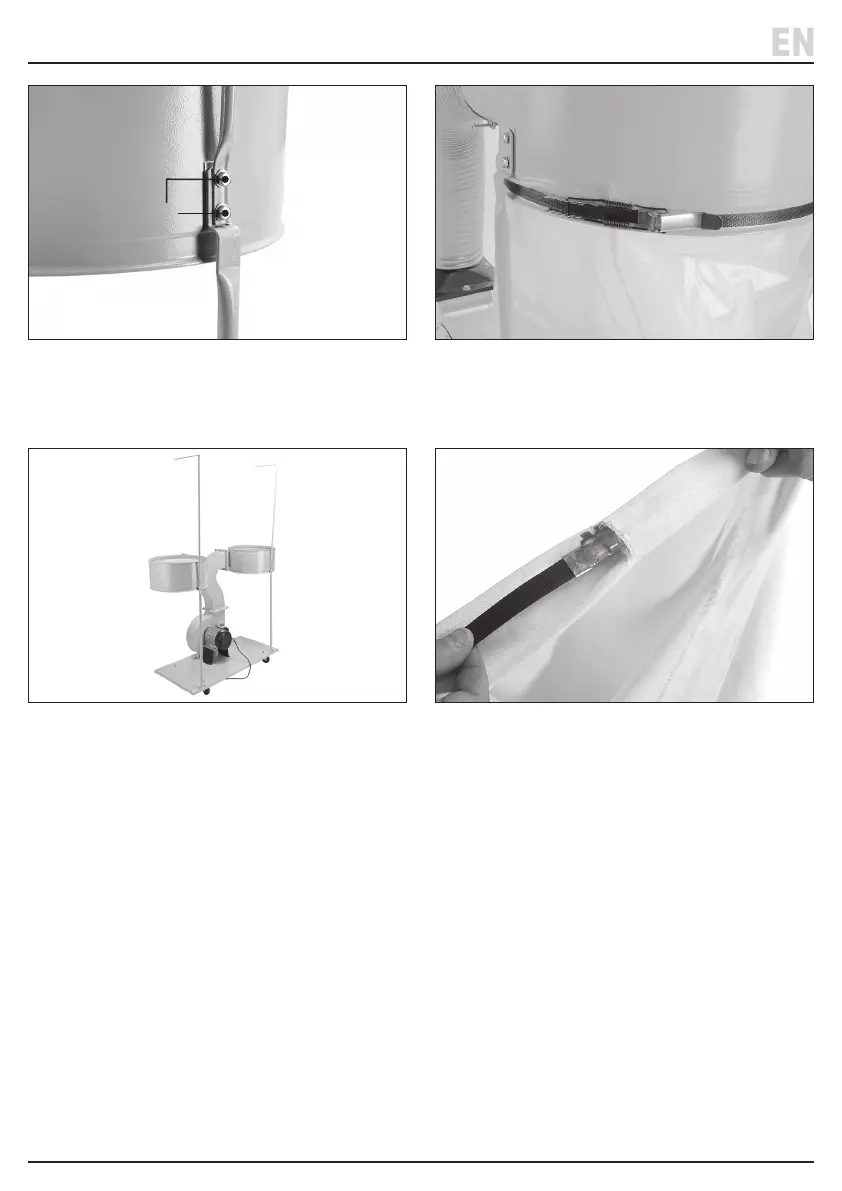

12 Fig.
7. Assembling the Dust Extractor
11 Fig.
10 Fig.
e. Pass two M8 x 16mm bolts (O) each through a
washer (Q) and secure both support rods to the
collection bag duct (Fig. 9).
f. Repeat these steps to attach the other collection
bag duct and support rods (Fig. 10).
8. Attach the collection and lter bags:
a. Open a collection bag (D) and slide it up over the
lower rim of a collection bag duct (C), using the
rubber band to hold it in place.
b. Pass a strap (L) around the collection bag duct so
that it runs between the duct and the support rods
and over the bag and rubber band.
c. Hook the strap spring over the toothed end and
close the clamp for a tight but comfortable t
against the lower rim of the duct (Fig. 11).
d. Pass the toothed end of the other strap around the
inside of the seam at the open end of the lter bag
(F) (Fig. 12).
e. Pull the lter bag over the upper rim of the
collection bag duct and use the clamp to secure it
in place.
f. Hang the loop on the top of the lter bag over the
upper support rod.
g. Repeat these to attach the remaining bags to the
other collection bag duct.
9 Fig.
(O, Q)
