6.3 Packaging
Keep the product packaging for the duration of the
warranty period for reference should the product need to
be returned for repair.
WARNING! Keep packaging materials out of
reach of children. Dispose of packaging
correctly and responsibly and in accordance
with local regulations.
Please visit drapertools.com for our full range of accessories and consumables.
– 9 –
EN

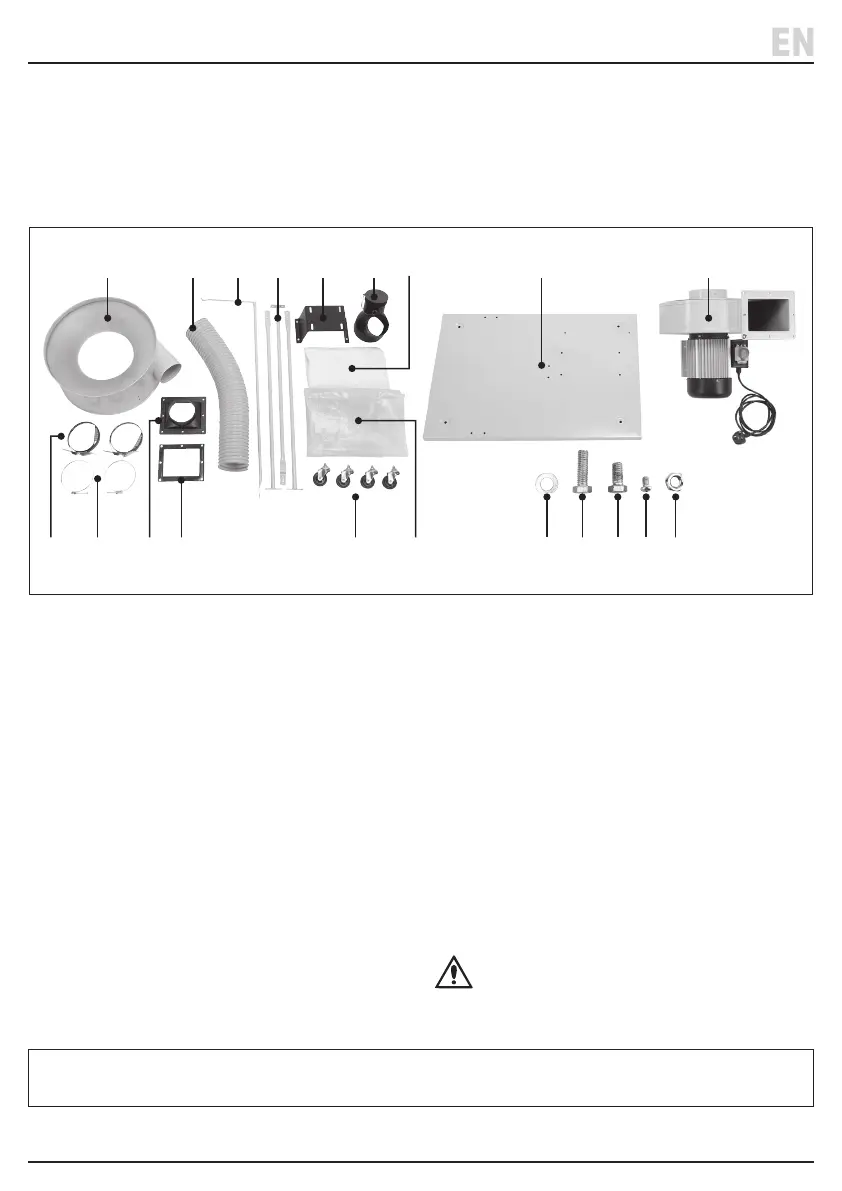

6.2 What’s in the Box?
Carefully remove the product from the packaging and
examine it for any signs of damage that may have
occurred during shipment.
Before assembling the product, lay the contents out and
check them against the parts shown below. If any part is
damaged or missing, do not attempt to use the product.
Please contact the Draper Helpline; contact details can
be found at the back of this manual.
(A) 1 x Base plate
(B) 4 x Castors
(B1) 1 x Castor assembly
(B2) 1 x M8 washer (thin)
(B3) 1 x M8 washer (thick)
(B4) 1 x M8 dome nut
(C) 1 x Collection bag duct
(D) 1 x Collection bag (clear)
(E) 1 x Extractor inlet
(F) 1 x Filter bag (white)
(G) 1 x Gasket
(H) 1 x Hose
(I) 1 x Hose outlet
(J) 2 x Hose clamps
(K) 3 x Lower support rods
(L) 1 x Motor support
(M) 1 x Motor/ducting unit
(N) 4 x Straps
(O) 1 x Upper support rod
(P) 4 x M8 x 25mm bolts
(Q) 26 x M8 x 16mm bolts
(R) 1 x M5 x 8mm screw
(pre-installed)
(S) 34 x M8 washers
(T) 4 x M8 nuts
(U) 1 x Hex key (not shown)
(C) (H) (K)(O) (L) (E) (A)
(M)
(J)
(G)
(B) (S) (P) (Q) (R) (T)
(D)
(I)(N)
(F)
