– 11 –

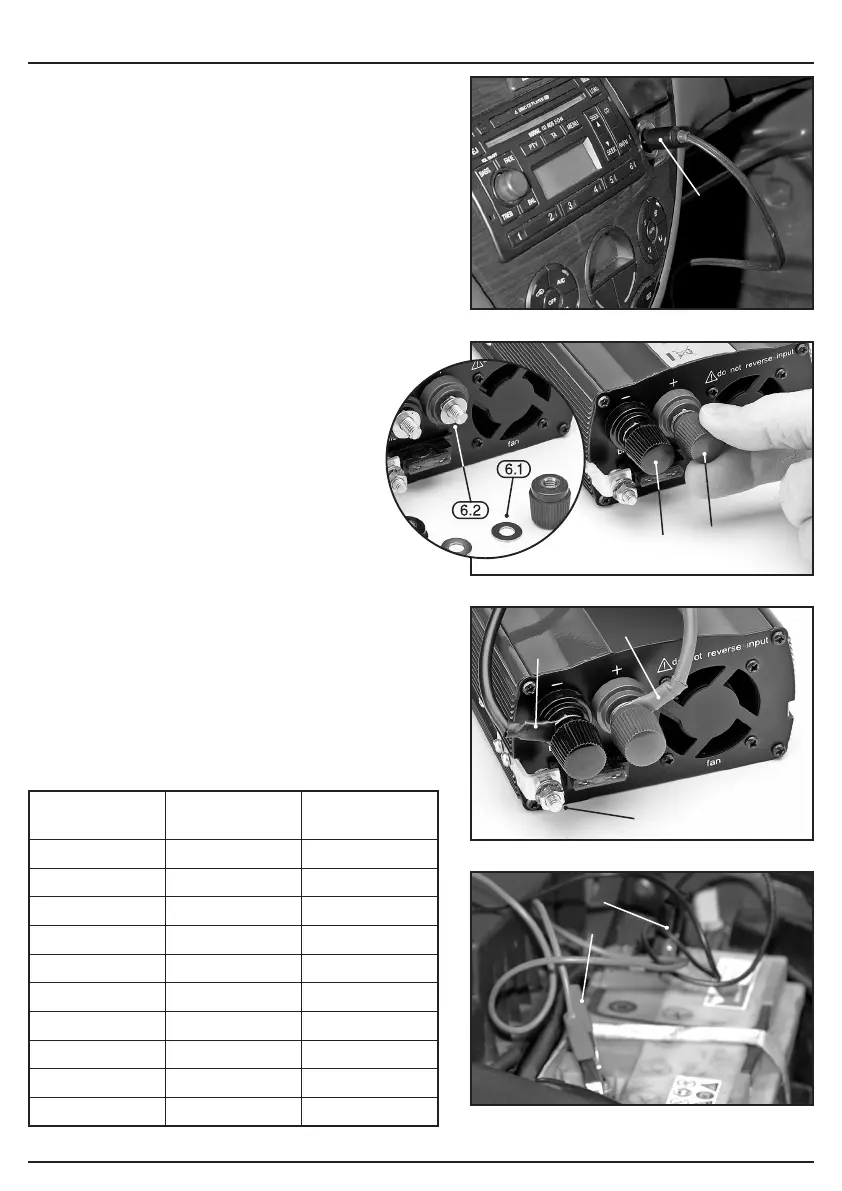

8. PREPARATION
8.1 12V DC POWER INLET
CONNECTIONS – FIGS. 1– 4
Note: Prior to any connection, ensure the ON/OFF
switch is in the off position.
Model 28814 IN200/USB (FIG.1)
− Insert the 12V DC connector (12) into the
vehicle’s cigarette lighter socket, ensuring that
it is fully plugged in.
Model 28815 IN400/USB (FIGS.2 – 4)
To connect to the 12V DC power inlet terminals:
− Unscrew and remove the red (positive) terminal
cap (6) and outer washer (6.1).
− Pass the red (positive) ring spade (10) over the
red (positive) terminal connection point (6.2).
− Re-fit the outer washer and the terminal
cap, securing tightly.
− Follow the same procedure to attach the
black (negative) ring spade (11) to the
black (negative) terminal (7).
− Attach the red (positive) battery terminal
connector (8) to the vehicle’s battery
positive terminal and the black battery
(negative) terminal connector (9) the vehicle’s
battery negative terminal.
8.2 DC POWER INPUT GROUND
CONNECTION AND CABLE SIZES.
The earth terminal (14) must be connected to a
grounding point. In a vehicle, connect the earth
terminal to the vehicle’s chassis. In a boat, connect
to the grounding system of the boat. In a fixed
location, connect to the ground. Consult the table
below for appropriate connection information.
Max. watts
out.
Approx. fuse
reg.
Wire gauge.
100W 15A #20
150W 20A #18
200W 25A #16
300W 30A #14
400W 2 × 20A #12
600W 2 × 30A #8
800W 2 × 40A #6
1000W 4 × 25A #4
1200W 4 × 30A #4
2000W 4 × 40A #2
1
2
FIG.
FIG.
3
4
FIG.
FIG.
(12)
(7)
(10)
(11)
(8)
(9)
(14)
(6)
