6. Preparing the Inverter
7. Inverter Operation
EN
EN
• Before connecting ensure nothing is plugged in and
the inverter is switch o.

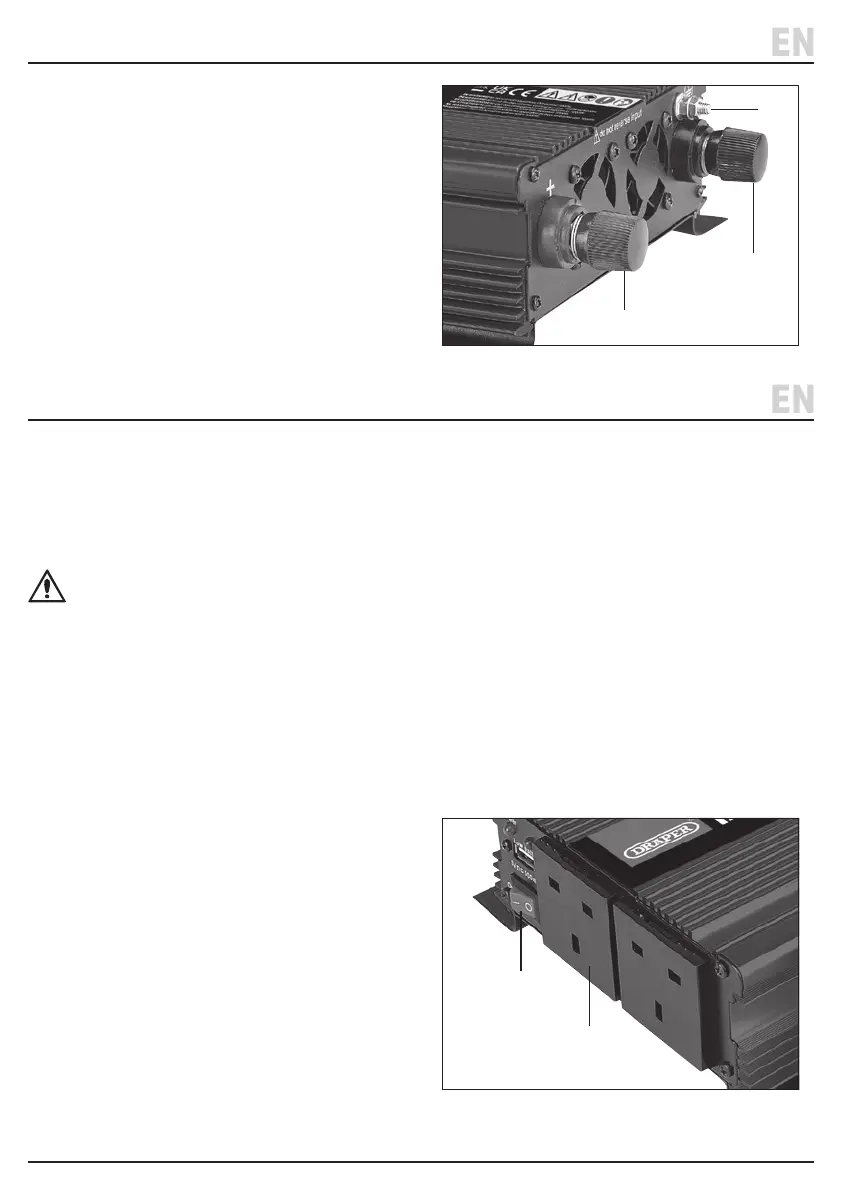

6.1 Power Inlet connections - Fig. 1.
1. Attach the required DC connector to the inverter. First
remove the black (negative) terminal cap (7) and t
the black (negative) fork spade wire connector (10a)
to the terminal, ret the cap and tighten securely
Ensure it is positioned away from the positive terminal.
2. Then remove the red (positive) terminal cap (6) and t
the red (positive) fork spade wire connector (11a) to
the terminal, ret the cap and tighten securely.
7.1 Grounding connection
WARNING! before using the inverter it is
recommended that ground connection is provided
to the earth point (8) - Fig.1. The use of the earth
point will depend on your particular installation.
In any installation, heavy duty, green+yellow-
insulated wire should be used for this connection.
• In a stationary land based installation, the earth point
should be connected to a metal earthing stake driven
into the ground to a depth of 1.2M or more, If the
battery system powering the inverter does not have a
connection to ground, one of the battery terminals
(commonly the negative terminal) should also be
connected to the earthing stake.
• In a vehicle where the inverter is wired directly to the
battery, the earth point is simply connected to the
vehicle chassis.
7.2 Connecting to the 12V Battery Supply
• Ensure the engine is o before attaching the red
(positive) connector (11) to the battery positive (+)
terminal and the black connector (10) to the battery
negative (-) terminal.
7.3 AC Output - Fig. 2.
1. Check the rating label on the appliance or equipment
for the power consumption in watts. Calculate the
power consumption of the devices to be plugged in,
ensuring the rating is under the maximum capacity of
the inverter.
• NOTE: If the rating stated is in amps – multiply the
value by the voltage (230V) to determine the wattage.
2. Place the inverter on a at level surface in a
well-ventilated area.
3. Then plug the device int the AC outlet (1) and switch
the inverter on (2).
• DO NOT start the engine while the inverter is
connected or in operation.
Fig. 1
Fig. 2
– 8 –
Important: Before operating this product, read and understand all
the safety instructions listed in this manual. Ensure that the
product is fully assembled and correctly prepared for use.
(7)
(6)
(2)
(1)
(8)
